Operating the E-2800 sliding table
(Fig.15 bis)
When loading panels and when cutting using the parallel saw fence, the sliding table should be
locked.
There are two different systems to achieve this. The rst system is used when loading the panel onto
the sliding table to prevent the table from sliding away from the operator.
To lock the table in the front position put the arrow on ‘A’. When the sliding table is pulled to the
front it will automatically be locked in this position.
To unlock the table: pull the handle and put arrow on ‘B’.
The second system is for cutting with the parallel saw fence: simply pull the bolt (g.15,1) and engage it
in one of the tree slots along the side of the sliding table

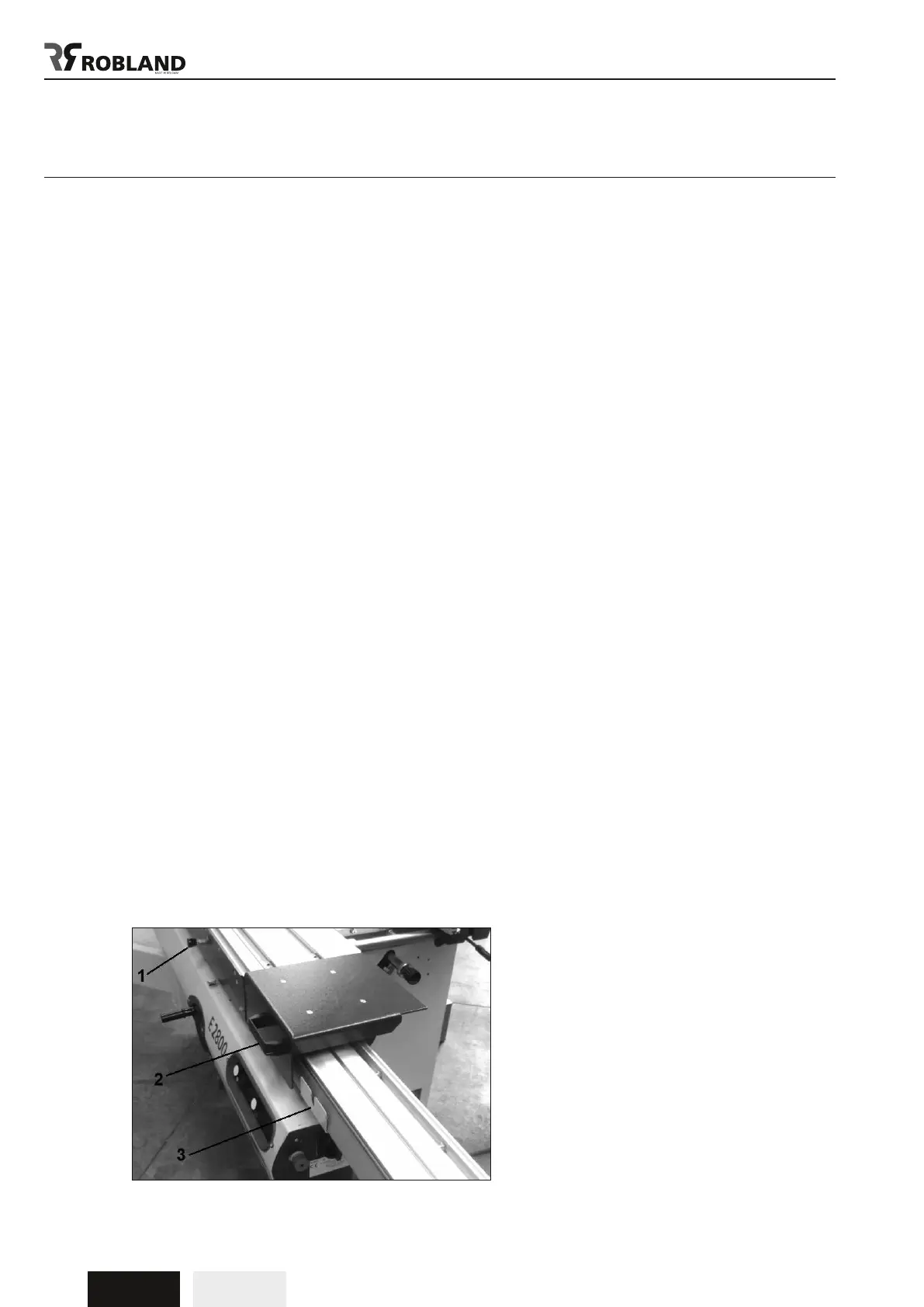

Fig.15 bis
