Robland PS 3200 - Option A5216: Retro-Fit Digital Read-Out for Parallel Fence

– English
Silverline - PS 3200 V0713 15
Option A5216: Retro-t digital read-out
for parallel fence
Mounting instructions for panel saw Z serie

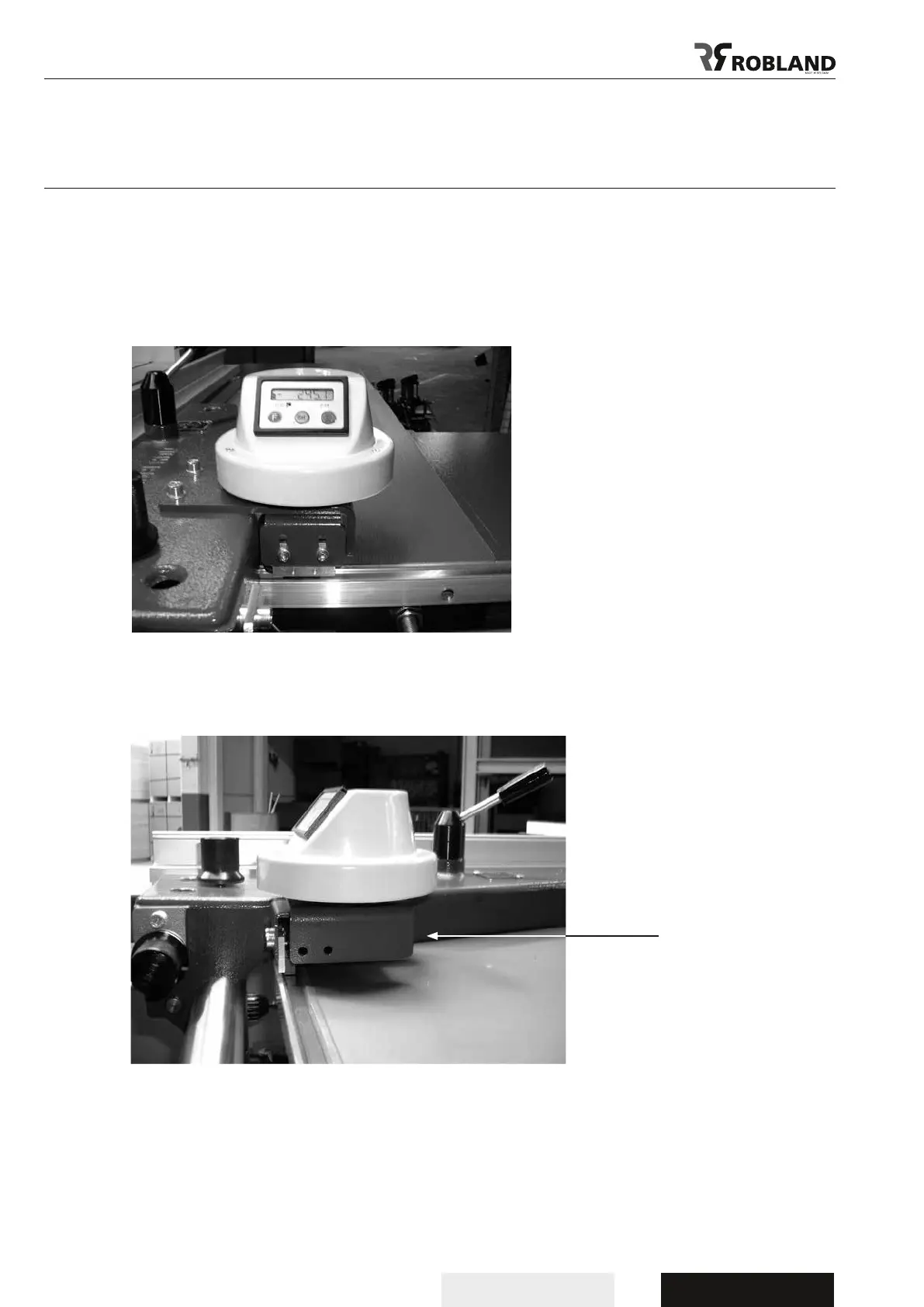

Put the digital read-out onto the parallel fence support block using the 2 holes already
drilled. On older machines these 2 holes need to be drilled.
Now put the alu prole holding the magnetic strip onto the saw table at 1 mm below the table’s front
edge.
Make sure the sensor is put in the middle of the magnetic strip, and the distance between strip and
sensor is set at 0,5 mm maximum.
Make sure the sensor stays at 0,5 mm over the entire lenght of the magnetic strip.
0,5 max
