Mounting and adjusting the riving knife
(Fig.21)
The machine is equipped with 2 riving knives adapted for the use of saw blade diameters 300/350/400
and 450 mm.
The riving knife can adjusted in both vertical and horizontal direction.
When adjusting the riving knife, always make sure the gap between saw blade and riving knife is set
between 3 and 8 mm.
Adjustment is done as follows: unlock the central bolt (1) and move the riving knife.
Adjust the riving knife in height assuring the upper edge never exceeds the base of the highest tooth in
use by 3 mm.
The 4 adjustment grub screws (2) are used for the exact setting of the riving knife in line with the saw
blade..
After adjustment is done, always lock the central bolt (1) with a torque of 60 Nm.
Never remove the riving knife; kickbacks are severe and very dangerous!
Lower sawblade cover
The lower sawblade cover has an extra safety device which will protect the user during sawblade
changing.
To open the lower cover, the upper part of the sliding table has to be slid to the back.
Now the two locks can be opened at both sides of the cover and the safety lever can be pulled up.
Only now can the sawblade cover be opened.

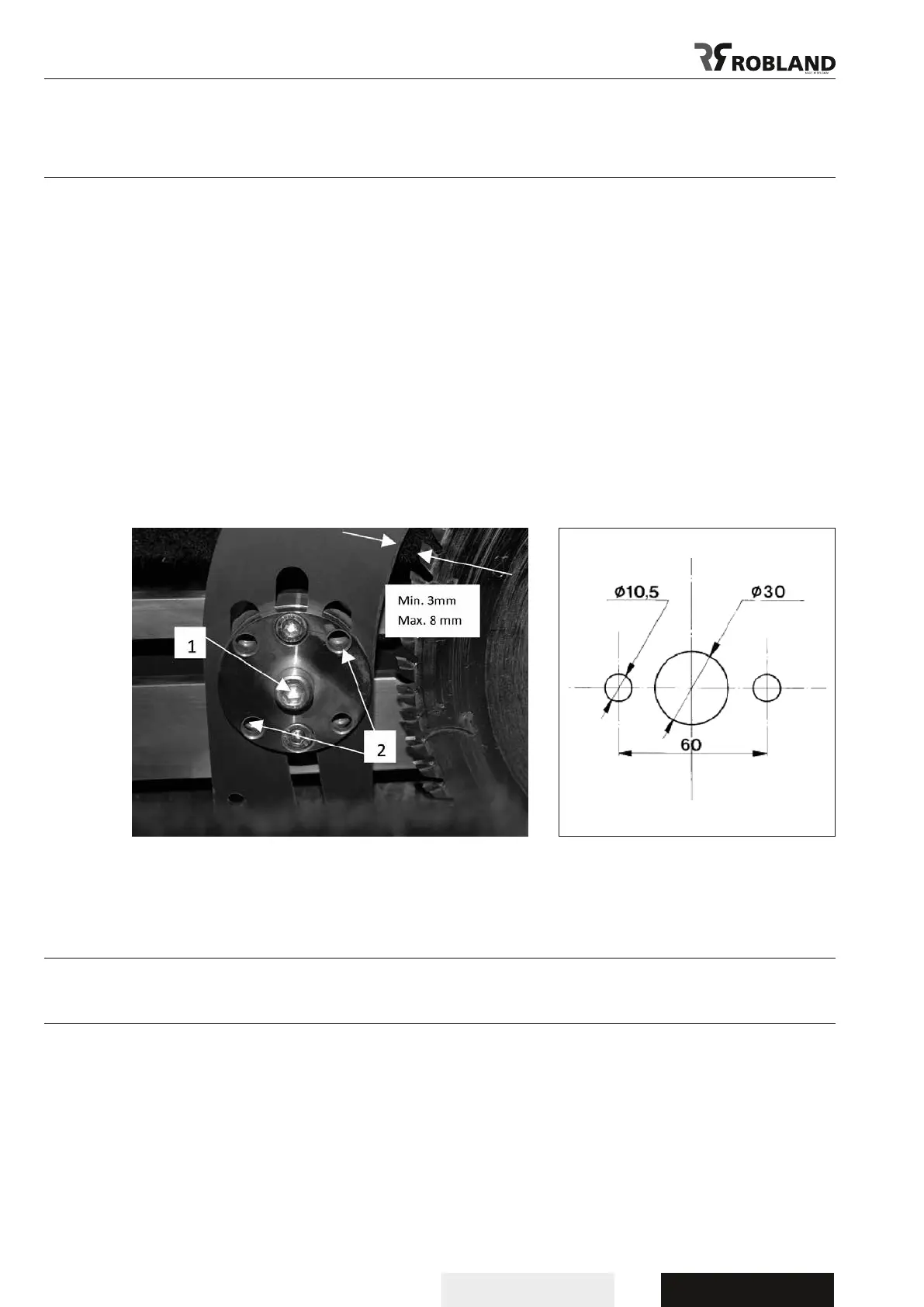

Fig.21
