Robomow RC306 User Manual

11
EN

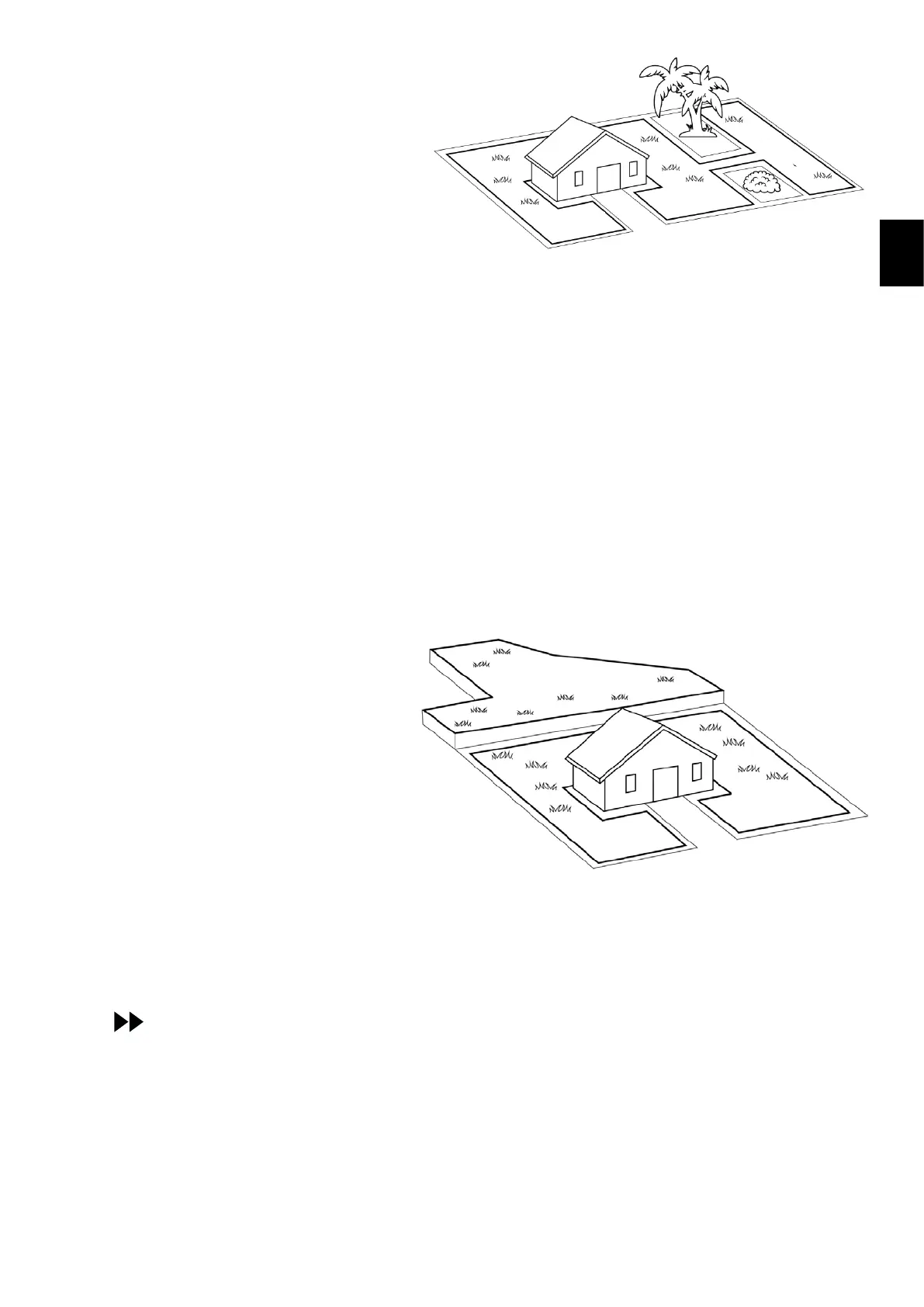

3.1.2 “Main Zone + Sub-Zone(s)“ Type Lawn
This type of lawn consists of more than
one zone, where zones are connected by
a narrow pass.
In this type of lawn, Robomow will be able
to drive from one zone to the other in order
to mow the whole area.
If you answer “yes” to all of the following
questions, your lawn is a “Main Zone + Sub-
Zone” type lawn:
o Is your grass area one continuous area?
o Are parts of your lawn separated from the Main Zone?
o Is there a Narrow Pass of at least 1m (3.3 ft.) for Robomow to drive between these zones?
o IsthisNarrowPassrm,inonelevelandsmooth(notstony,sandyorelevated)?
 Forexample:grassarea,sidewalk,rmpath,solidground.
Such additional areas are called Sub-Zones.
IfyourlawncontainsaSub-Zoneasdenedinthissection,refertoSection6.4.2(AddSub-Zone–number
p022 in the table).
DeningSub-Zone(s)willenableRobomowtodrivethroughtheNarrowPassinordertogettoaSub-Zoneand
to mow both the Main Zone and its Sub-Zone(s) one zone at a time.
If your lawn does not match this description, skip to the next Section 3.1.3 of this chapter: “Separate Zones”.
3.1.3 “Separated Zones” Type Lawn
“Separated Zones” type lawn consists of two or more zones that are not connected. Robomow cannot drive
between these zones.
If you answer “yes” to at least one of the following questions, your lawn is of the “Separated Zones” type.
o Are parts of your lawn separated by
fences, sidewalks, or other objects
that Robomow cannot pass?
Or
o Are parts of your lawn separated by
a gravel path or similar material that
may damage the mower blade?
Or
o Are the zones of your lawns joined
by a pass that is too narrow for
Robomow to drive through: less
than 1m (3.3 ft.) in width?
Or
o Are the zones of your lawn situated at lower or higher level?
Ifyour lawn contains a Separated Zone as dened in this section,refertoSection6.4.2(AddSeparated
Zone – number p014 in the table).
Ifyourlawndoesnottanyofthesedescriptions,itisprobablyeithera“MainZoneOnly”or
“Main Zone +Sub- Zone” type. Skip to Section 3.3 – Select Base Station and Power Box Location
.
 A lawn may consist of up to 2 Separated Zones .
 The mower must be carried or driven to this area manually.
 Any of the 3 types can be a combination of more than one type of lawn.
Main Zone
Main Zone
Sub-Zone
Main + Sub-Zone with a Narrow Pass
Main Zone
Main Zone
Separated Zone
Separated Zone
Separated Zone
Separated Zone
Main Zone
Main Zone

Robomow RC306 Specifications

General

Type	Robotic lawn mower
Cutting width	280 mm
Cutting system	-
Recommended lawn area	600 m²
Maximum cutting height	60 mm
Minimum cutting height	15 mm
Grass collecting volume	- L
Battery type	LiFePO4
Power source	Battery
Charging time	1 h
Battery voltage	26 V

Weight and Dimensions

Depth	460 mm
Width	630 mm
Height	210 mm
Weight	11400 g
