59
INFORMATION ON HANDLING AND INSTALLATION
ENG
9.

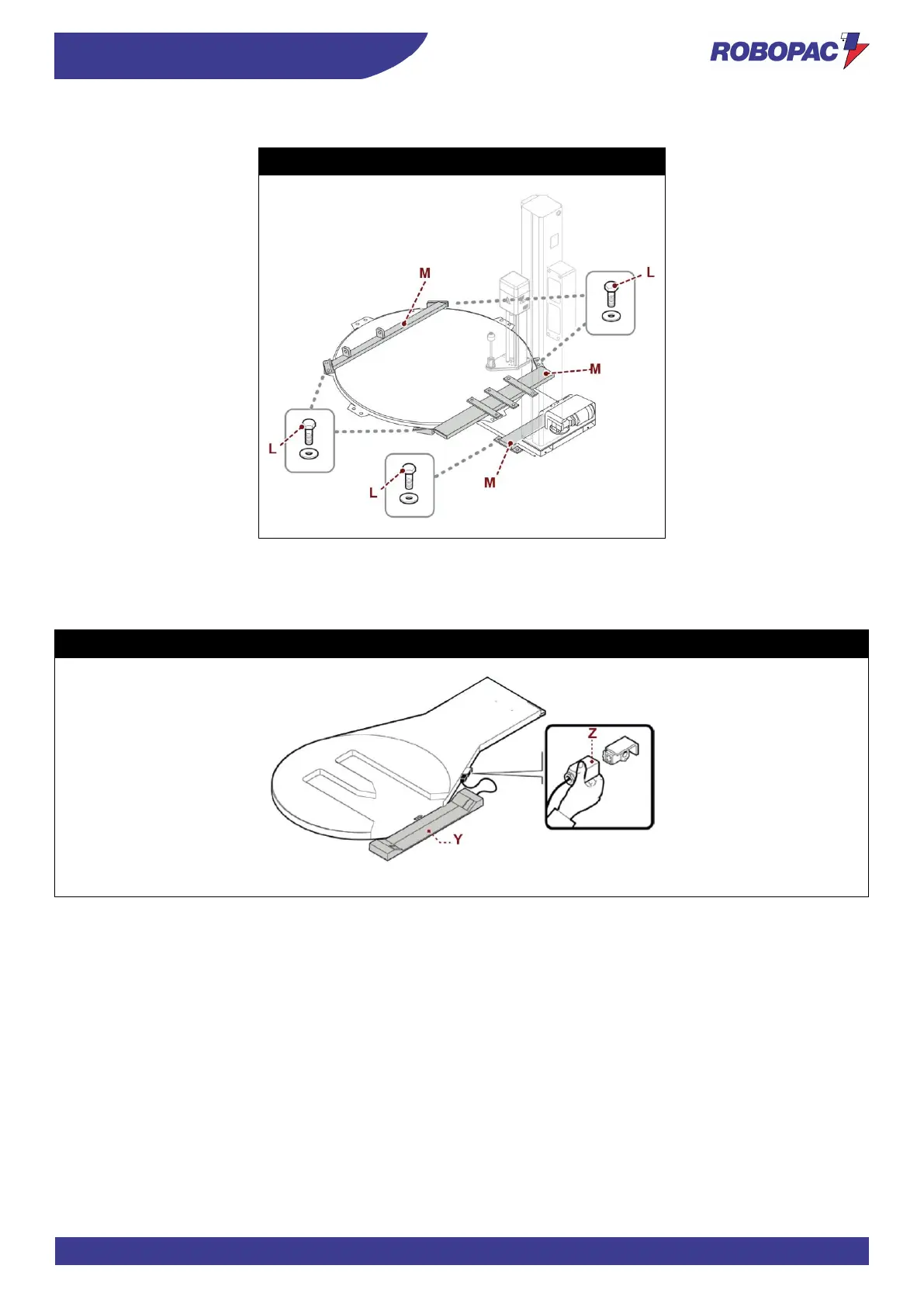

Loosen the screws (L) and remove the brackets (M).
Masterplat PLUS LP
4.5.4. LOADING/UNLOADING RAMP ASSEMBLY
Assemble the pallet loading/unloading ramp (Y) and connect the power connector (Z).
Masterplat PLUS TP3
