Robopac Masterplat PLUS LP PGS - Page 62

ENG
INFORMATION ON HANDLING AND INSTALLATION
62

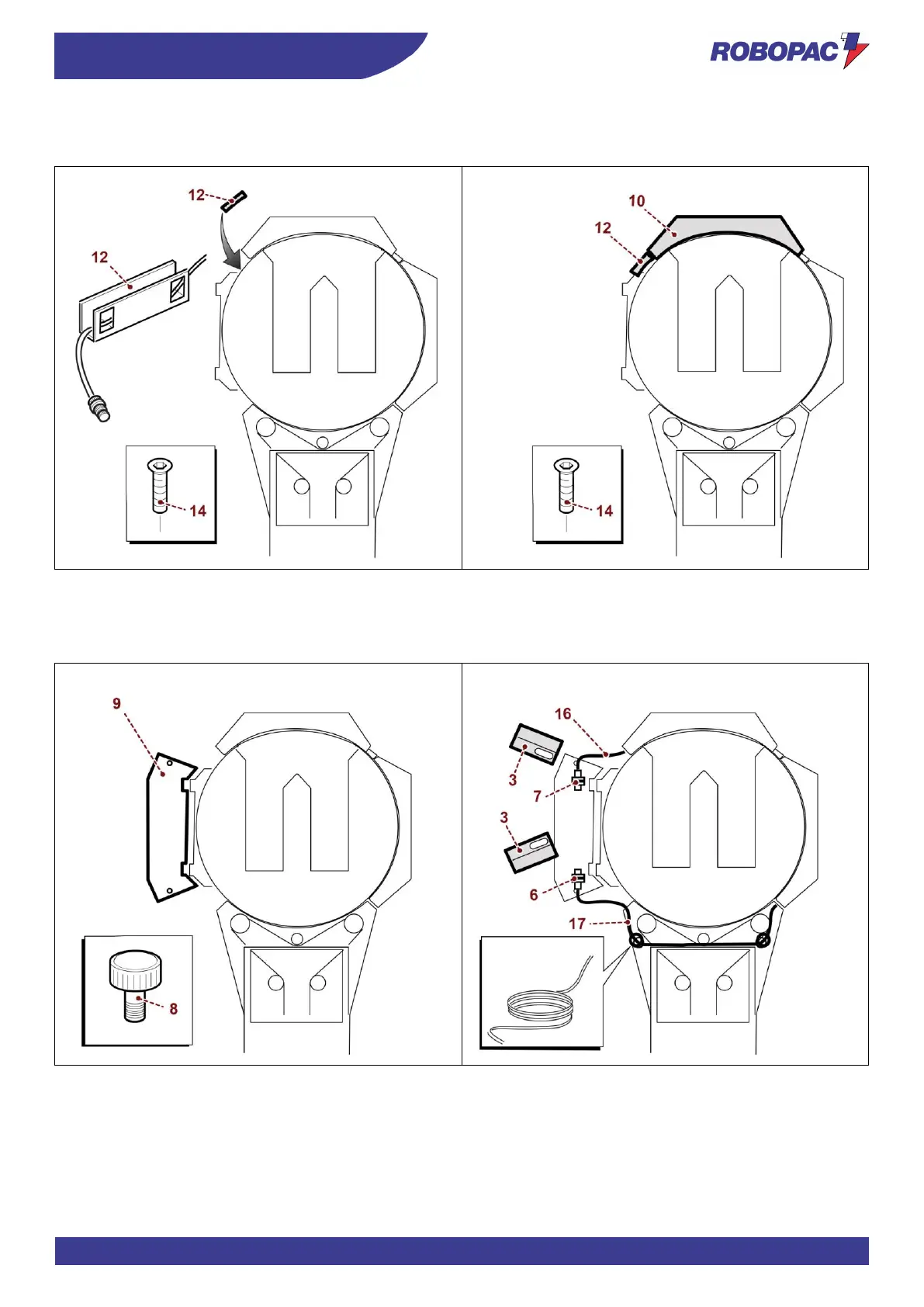

I. Fasten the connection guard (12) with the screws (14) and insert the cable inside it.
J. Refit the upper guard (10) and the upper connection guard (12) with the fastening screws (14).
K. Position the upstroke ramp (9) on the side and screw the supporting knobs (8).
L. Recover the cable in excess (16-17) using a tie, connect the connector (6-7) to the photocell receiver and
position the photocell guard (3).
