Roca EURET A35945M000 - 4 Installation Procedure

5
4 Installation procedure

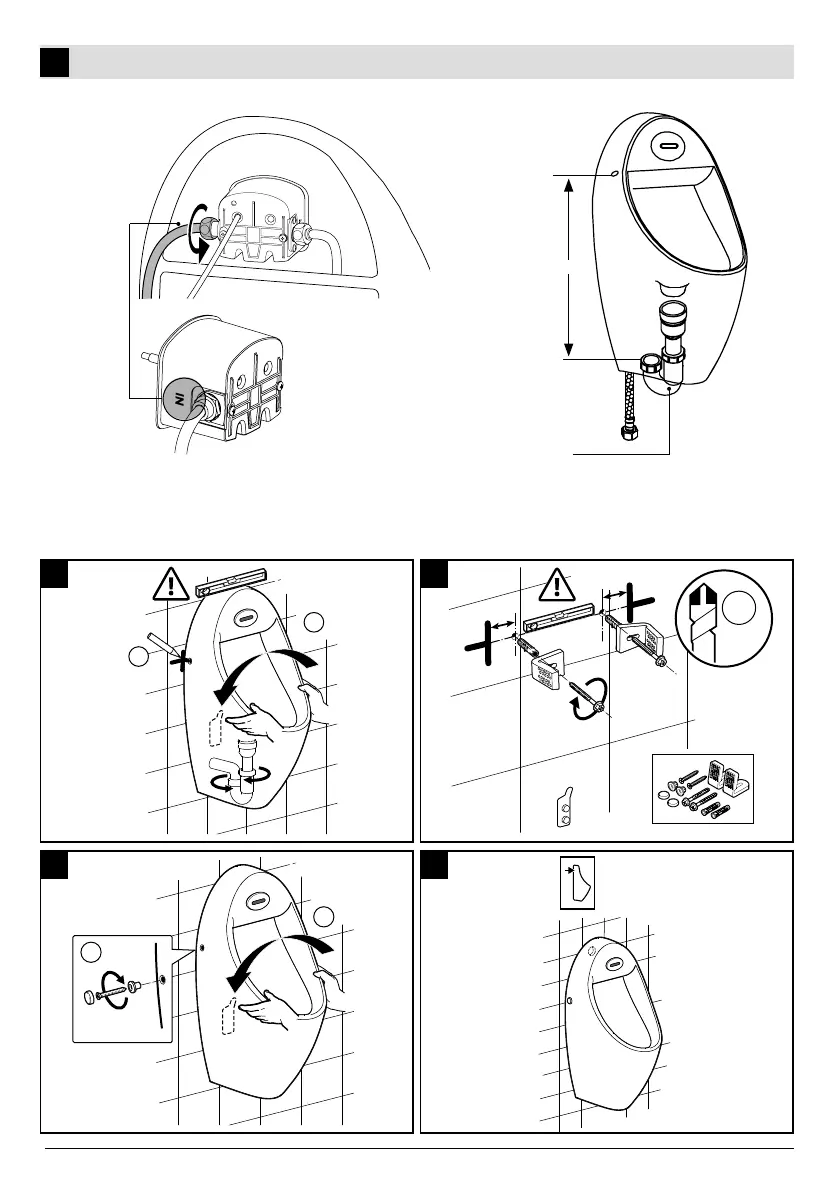

Follow the diagrams to connect water inlet and U-shaped drainage pipe, keep the nut on the pipe on loosen to make adjustment.
Water inlet
525mm
Please follow the below right diagram to hang and install urinal to appointed position. The installed urinal should be fixed tightly and
maintained in horizontal position status.
Connect pipe of urinal and angle valve based on bottom left diagram.
U-shaped drainage pipe
1.
1
2
2.
65
65
Ø8
3.
1
2
4.
