1. Put the Z-bend end of the linkage into
the desired servo control horn hole. It is
a tight fit and should allow the linkage to
move just slightly within the hole to avoid
binding up.
2. Snap the clevis into the surface control
horn.
3. The provided piece of fuel tubing keeps
the clevis closed during flight. Repeat
steps 1&2 for the remaining linkage rods.
Note: Do not over slide the securing
tube or it will impede the movement
of the surface control horn.
page11

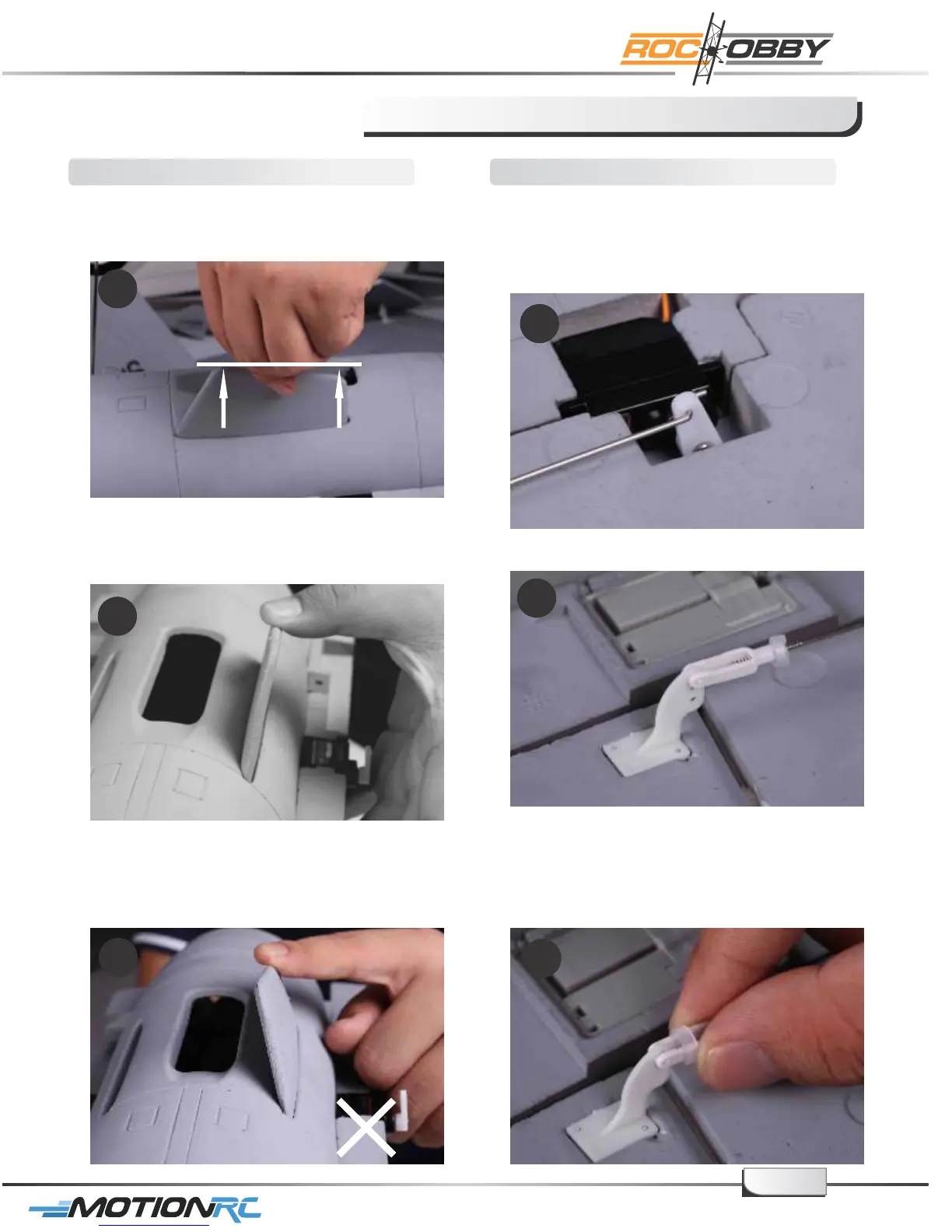

Assemble the plane
Install the ventral fin
Install the linkage rod
1. Fit one of the fins into place, the higher
side towards the front of the plane.
Higher
2. The fin will angle towards the outboard
of the plane as the picture shows.
3. This picture shows the WRONG way to
mount the fin. Glue the fin into place
after verifying the positioning is correct.
1
2
3
1
2
3
