page12

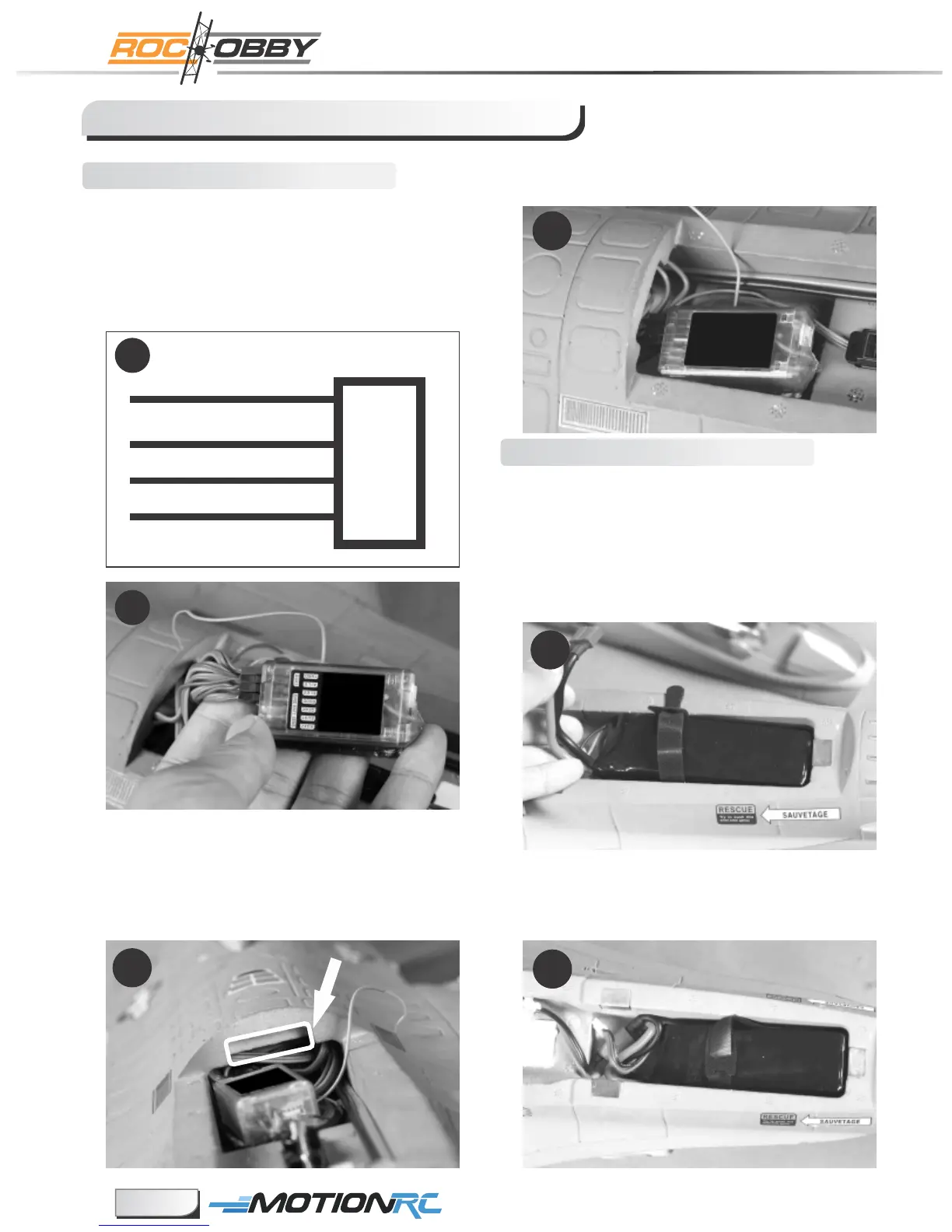

Assemble the plane
1. Attach aileron servo to the Aileron channel
of your receiver. Elevator harness goes to
elevator channel of your receiver. Steering
servo goes to the Rudder channel. Attach
the ESC connector
t
o
the throttle channel
of the receiver.
Installing the receiver
Receiver
Throttle
Channel-1
— Aile
Channel-2
— Elev
Channel-3
— Thro
Channel-4
— Rudd
1
2
3
4
Aileron
Elevator
Steering
2. Tuck the wire leads into the recessed cavity
at the rear end of the canopy hatch.
Note: Keep wires clear from notched area
at the rear of the hatch (highlighted) to
ensure canopy stays secure in flight.
3. Mount the receiver into place and make sure
it will not impede the canopy mounting.
2. Fit the power connector into place and
make sure the power supply wire does
not interfere with the canopy’s closure.
1. Slide the battery into the battery hatch
with the power supply cable toward the
rear end of the plane. Secure the battery
using the hook and loop strip.
Note: You may need to relocate the battery
position to achieve the correct CG for
your F16 model.
Install the battery
1.1
1.2
1
2
2
3
