RK3288 Hardware Design Guide

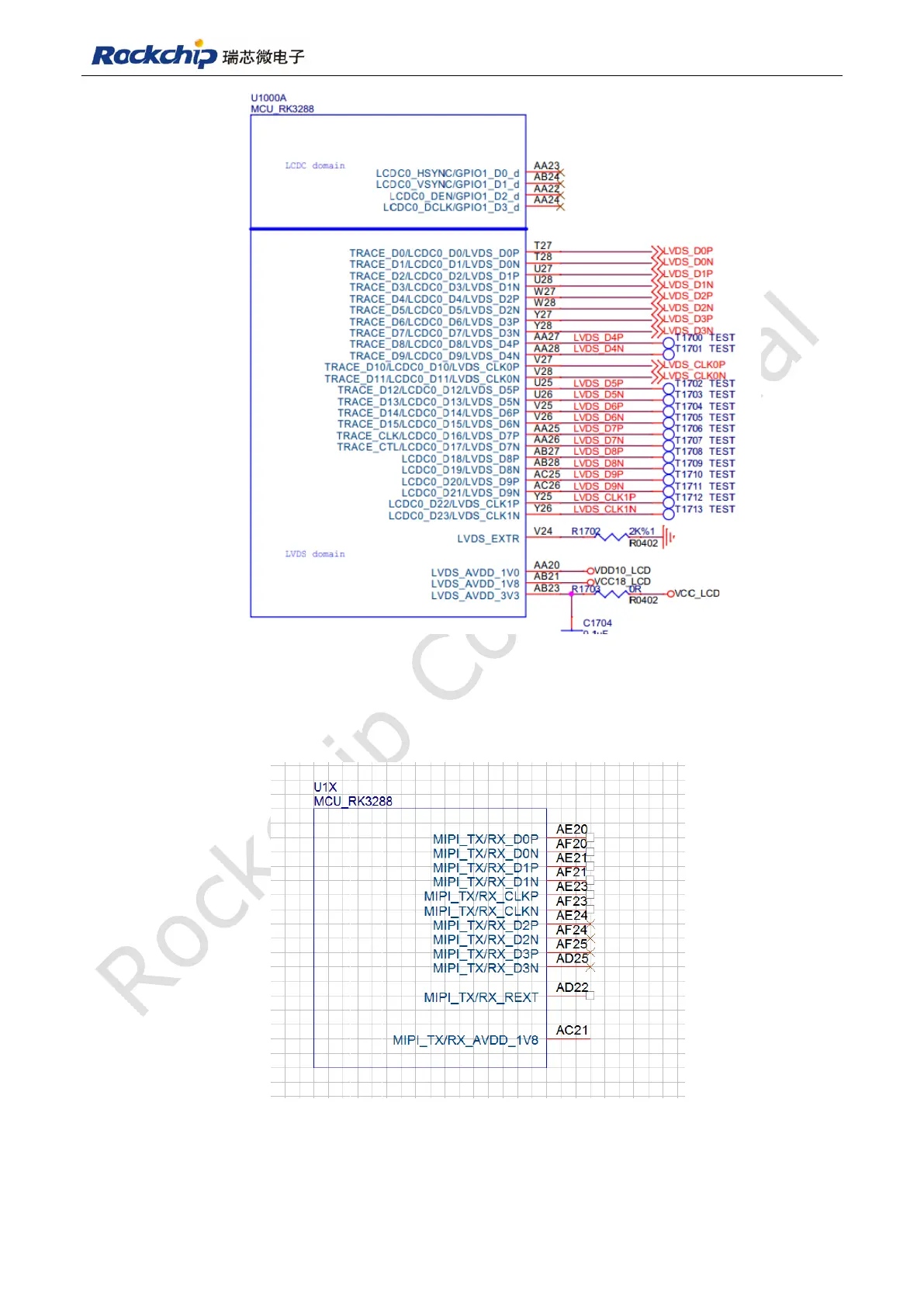

Fig 14-6
In the RK3288, each display module has its own power supply, and power pins of each
module should be packaged within its own domain. No power supplied to the module
which is not in using to reduce power consumption, as shown in Fig 14-7, 14-8;
Fig 14-7
To Next Page
