Water supplies to the machine
must be suitable for consumption
by man and for human uses, in
compliance with all the laws in
force in the installation site.
The installation technician is required to get
conrmation from the nal owner and/or user
of the system that the water meets all the fore-
going requirements. For machine installation
it is necessary to use all the components and/
or parts supplied on issue with the machine.
Should it ever be necessary to use other parts
and/or components, the installation technician
is required to verify that said other parts and/or
components are suitable for contact with water
for human consumption/drinking water. The

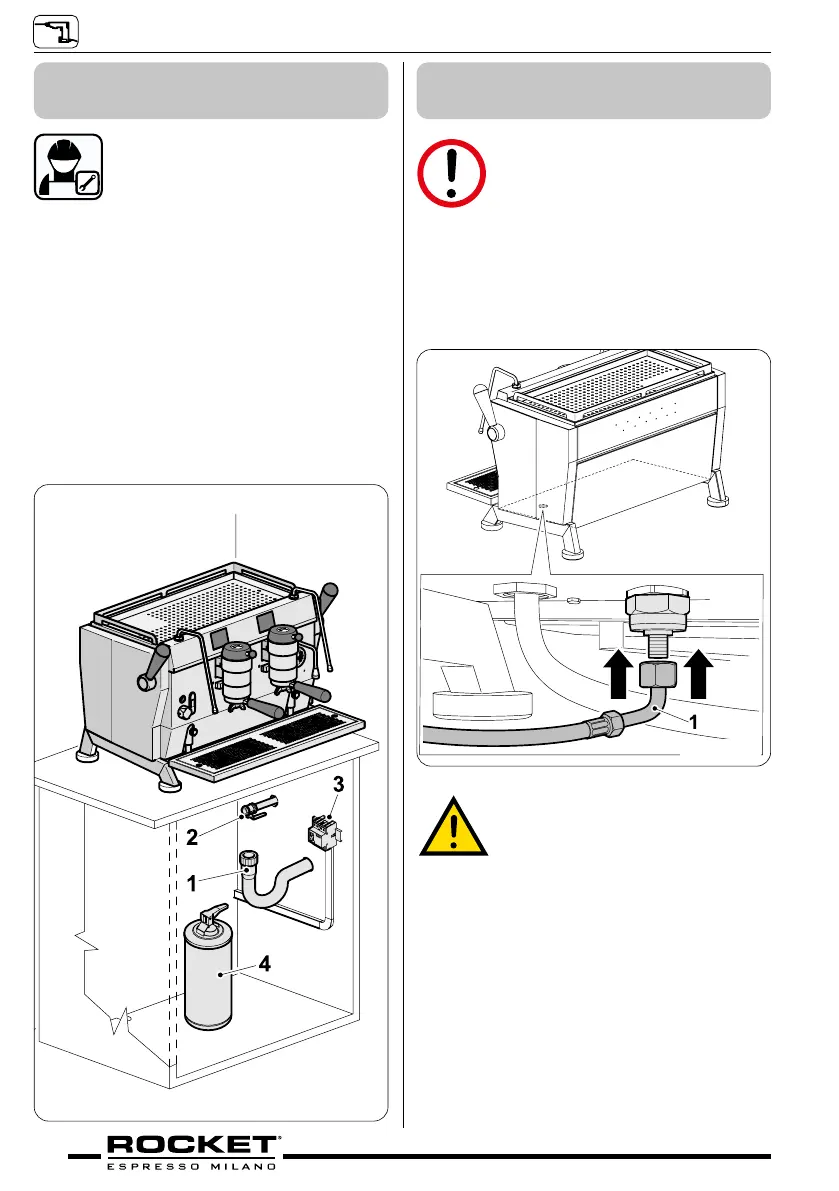

4.1 Connections to be provided
by the user (Fig.4.3)
Connections must be carried out
by qualied personnel in full
accordance with federal, state
and local regulations.
1. Water drainage pipe (1 - Fig. 4.3), hav-
ing an internal diameter of min. 30mm,
equipped with a water-trap accessible for
inspection.
2. Water supply pipe (2), with a 3/8”G cut-o
tap.
3. Circuit breaker (3)
4. Water softener (Optional-4)
4.1.1 Water supply
Make sure that the maximum supply
pressure of water does not exceed
6.5 bar; otherwise, install a pressure
reducer.
Connections must be installed close to the
machine.
Water supply pipe, with a 3/8”G cut-o tap.
Connect the exible pipe supplied to the tting
located under the machine (1 - g._4.4)
g_4.4
g_4.3
