20
R9V
It is necessary to provide a circuit breaker at
the start of the power cable, complete with
magnetic release elements in accordance with
the type label details. The contact opening
must be at least 3 mm.
Remember that each machine must be tted
with its own safety elements.
WARNING:
Should the power supply cable
be damaged it is to be replaced
by the manufacturer or by its
technical assistance service or by
person with equivalent qualica-
tion, in order to prevent any risks.

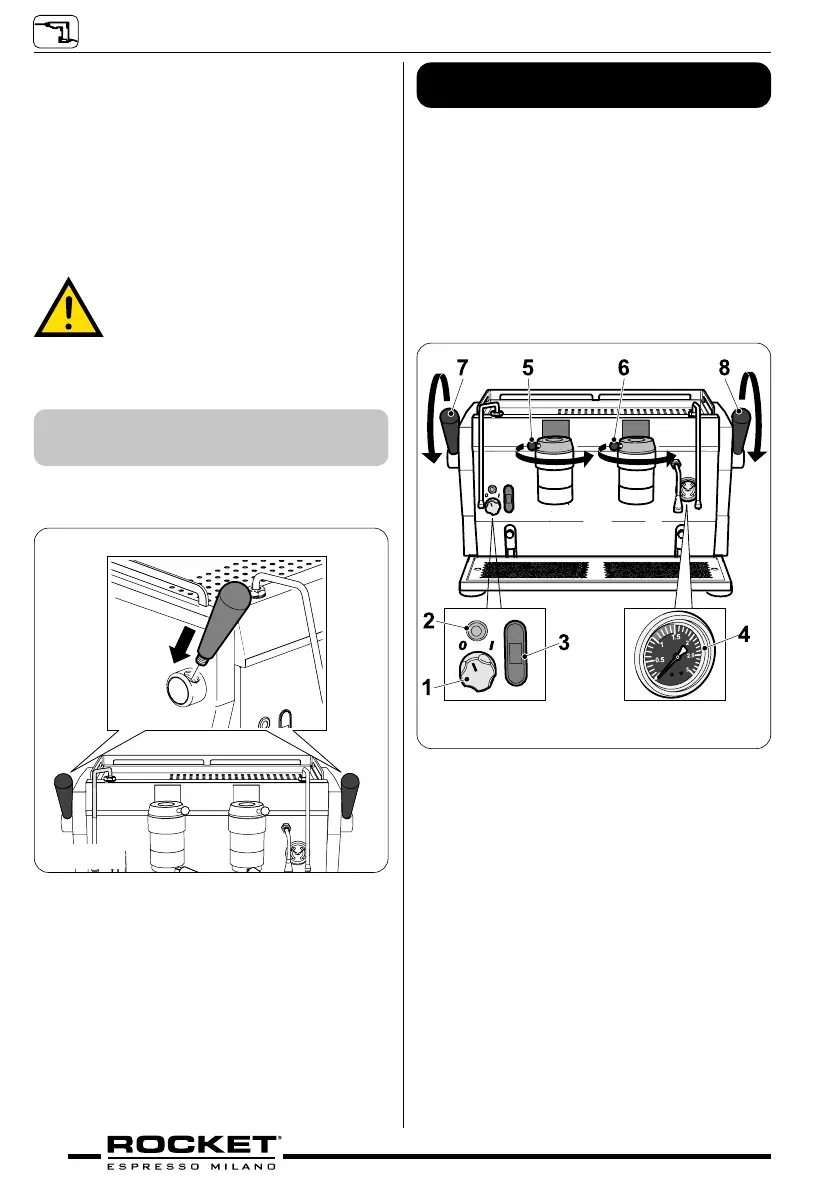

4.2 Installing steam tap levers.
Screw the two handles into the side steam
taps. (g._4.7)
5 - START UP
We assume the machine has been properly
installed.
Open the water tap and switch on the main
electrical switch (both not included to delivery).
Turn the on/o switch (1 - g._5.1) from posi-
tion “O” to position “I”.
The indicator light (2) come on.
Wait until the indicator light (2) stops ashingt.
The boiler is lled with water (3).
g_4.7
g_5.1
Wait till the boiler pressure has reached the
working pressure (0.9 bar approx). You can
read the boiler pressure on the boiler pres-
sure scale (0-3 Bar) of the pressure gauge
(4 - g._5.1).
Allow 20 to 25 minutes warm up time. When
the machine is ready the temperature will be
displayed on screen 1 of the touch screen. The
correct operating temperature and pressure
should be +/- 94°C (9 - g._5.1) or 197.6°F
displayed on the touch screen, with a service
boiler pressure of +/- 1 bar.
