4

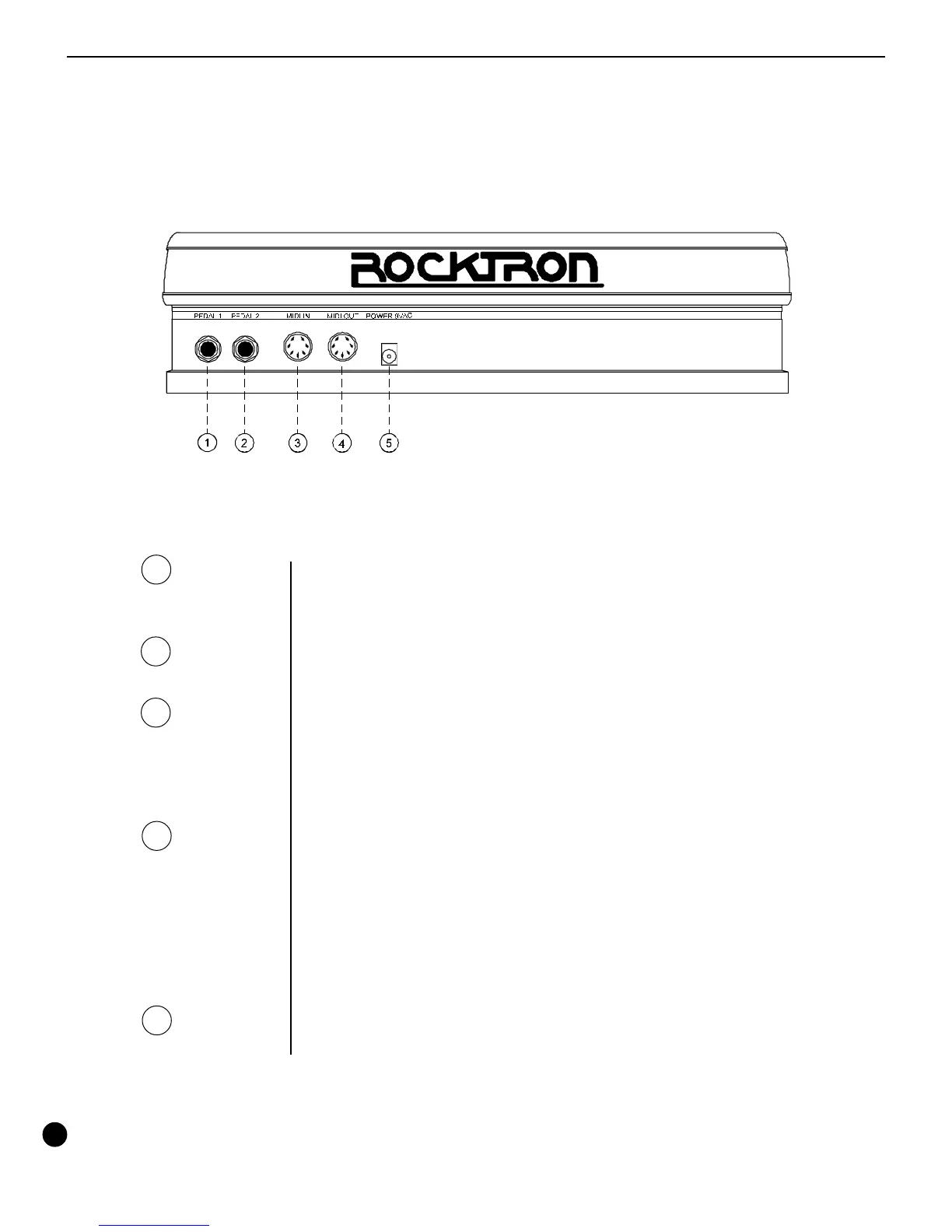

Rear Panel
Rear Panel
This ¼" mono jack allows for the connection of a continuous
controller (such as an expression pedal, volume pedal, fader,
etc.) to the All Access™.
This ¼" mono jack allows for the connection of a second
continuous controller to the All Access™.
This 7-pin DIN connector accepts the MIDI output signal from
another MIDI transmitting device which may be used to
control the All Access™. In some applications, MIDI informa-
tion will also be sent out through the MIDI IN jack through
pins 1 and 3.
This 7-pin DIN connector transmits MIDI information from the
All Access™ and connects to a MIDI receiving device or the
first in a chain of MIDI receiving devices. In some applica-
tions, MIDI information will also be received through the MIDI
OUT jack through pins 1 and 3.
Pins 6 and 7 of this connector provide phantom power to the
All Access™ from your rack.
This 2.5mm pin jack accepts power from the 9VAC adaptor
supplied with the unit.
1 PEDAL 1
jack
2 PEDAL 2
jack
3 MIDI IN jack
4 MIDI OUT
jack
5 POWER
jack
