9
The dB16, dB15, dB14, dB13, and dB12 are all 2 ohm stable monoblock ampliers. No matter how many woofers you choose to wire up to these models, the nal impedance should not fall
below 2 ohm. Please see page 30 and 31 for various speaker impedance congurations.

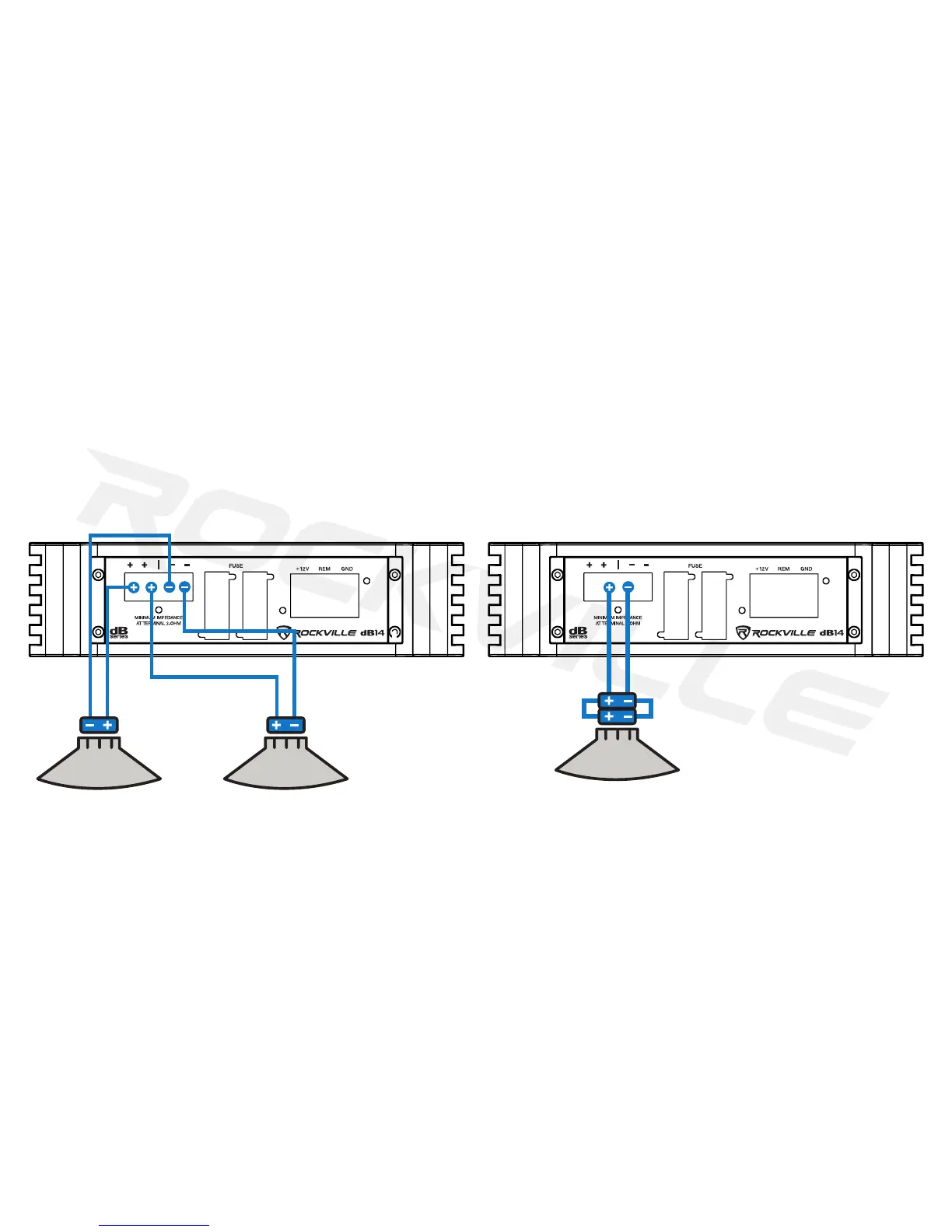

The dual positive and negative terminals are connected in parallel inside the amplier. Connecting two speakers, each to one set of positive and negative terminals, will result in a parallel speaker
connection. If only connecting one pair of speaker wires, it is not necessary to use both sets of connections.
4 OHM SUBWOOFER 4 OHM SUBWOOFER
2 OHM MINIMUM LOAD
SUBWOOFER IMPEDANCE
4 OHMS DVC
