Rockwell Automation Publication 2080-UM002N-EN-E - November 2022 145

Chapter 8 EtherNet/IP Network

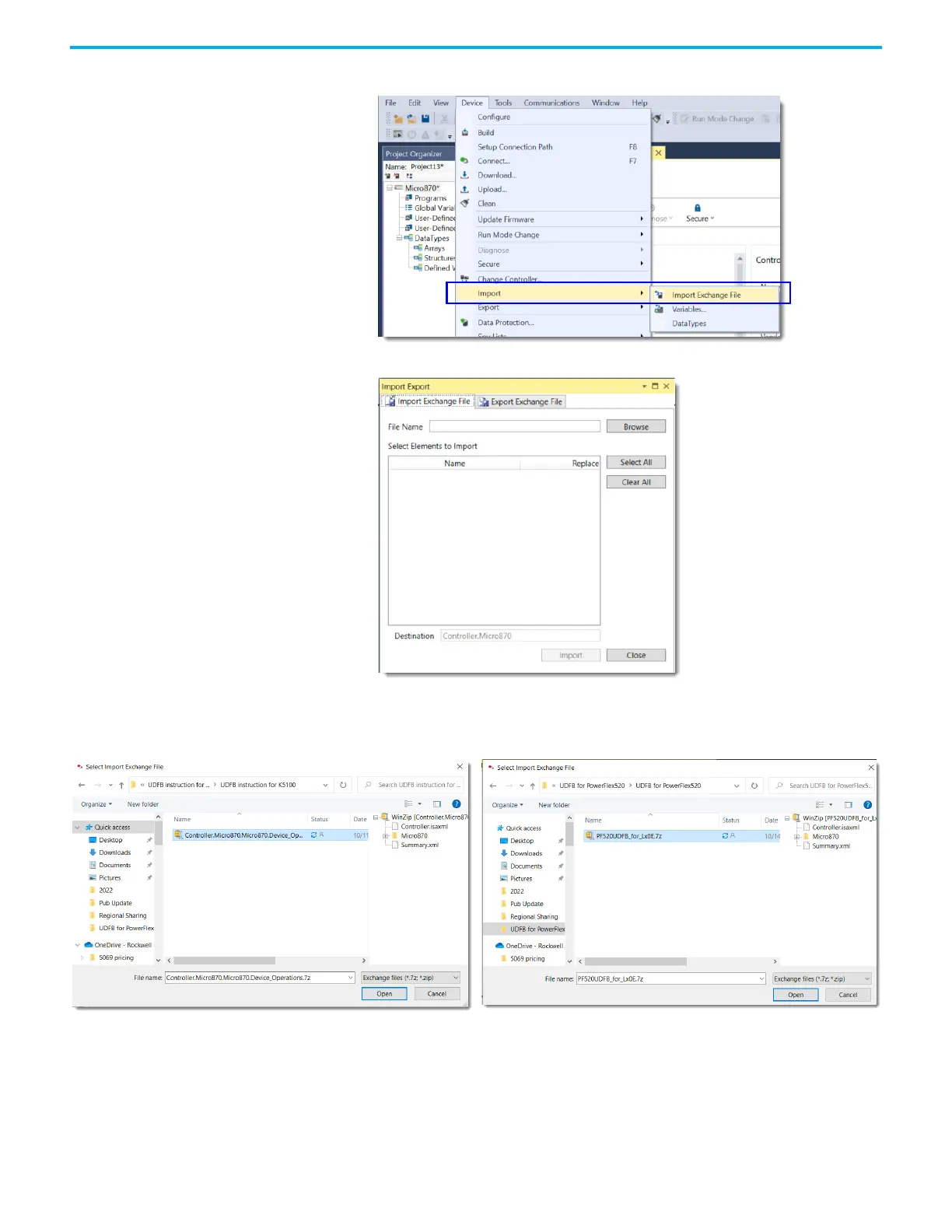

Alternatively, from the Device menu, click Import -> Import Exchange File.

The Import Export dialog box appears.

2. Click Browse and navigate to the folder that contains the UDFB files.

3. Select the UDFB file to add and click Open.

UDFBs for Kinetix 5100 Drives UDFBs for PowerFlex 520-series Drives
