252 Rockwell Automation Publication 2080-UM002N-EN-E - November 2022
Chapter 12 Using microSD Cards

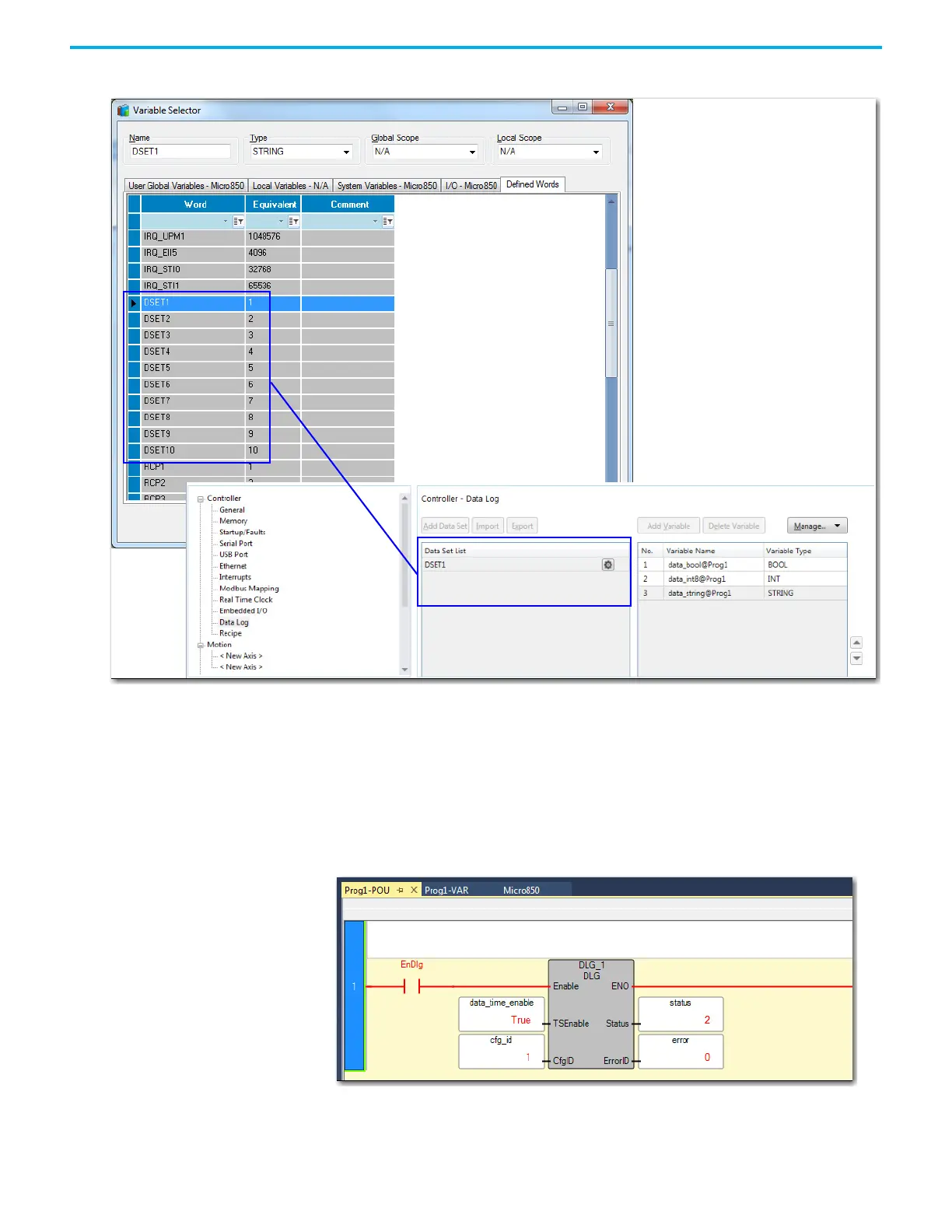

Figure 26 - Choose a Predefined Variable
Build and Download
After configuring data log properties, build the program and download to the controller.
Execute DLG Function Block
Execute the DLG function block. Notice the Status output go from 0 (Idle) to
1 (Enable), and 2 (Succeed).
