Rockwell Automation Publication 2080-UM002N-EN-E - November 2022 41
Chapter 3 Install Your Controller
System Assembly

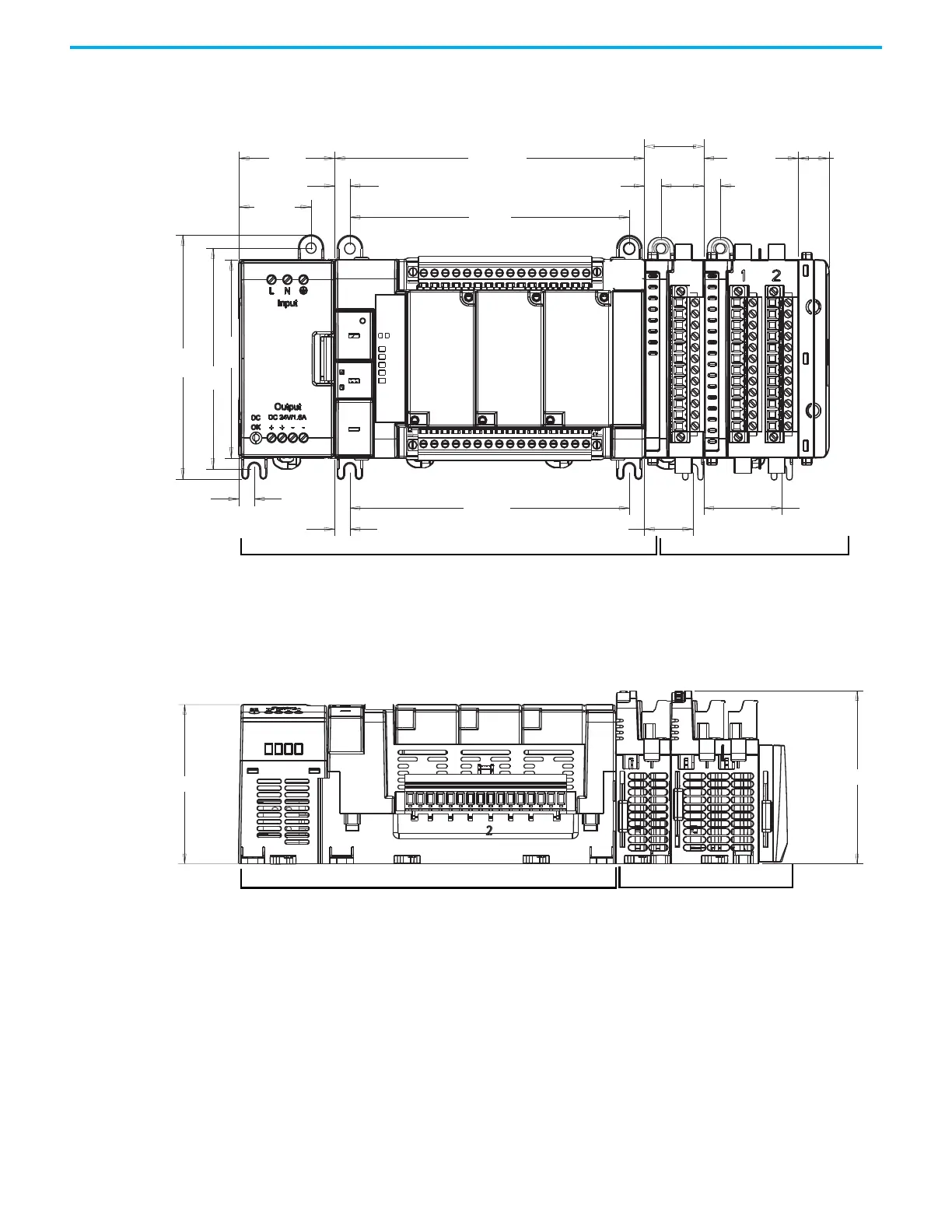

Micro830, Micro850, and Micro870 24-point Controllers (Front)
Micro830, Micro850, and Micro870 24-point Controllers (Side)
45 (1.77) 145.2 (5.72)
27.8 (1.09)
44.4 (1.75) 14.4 (0.567
)
7.2 (0.28)
131 (5.16)
7.8 (0.31) 7.8 (0.31)
7.2 (0.28)
131 (5.16)
22.8 (0.90)
36.6 (1.44)
90
100
110.8
(4.36)
33.8 (1.33)
7.2 (0.28)
(3.94)
(3.54)
Expansion I/O slots
(Applicable to Micro850 and Micro870 only)
Single-width (1st slot)
Double-width (2nd slot)
2085-ECR (terminator)
Micro830/Micro850/Micro870 24-pt controller with Micro800 power supply
Measurements in mm (in.)
80 (3.15)
87 (3.42)
Expansion I/O Slots
(Applicable to Micro850 and Micro870 only)
Single-width (1st slot)
Double-width (2nd slot)
2085-ECR (terminator)
Micro830/Micro850/Micro870 24-pt controller with Micro800 power supply
Measurements in mm (in.)
