230 Rockwell Automation Publication 2080-UM002N-EN-E - November 2022

Chapter 11 Controller Security

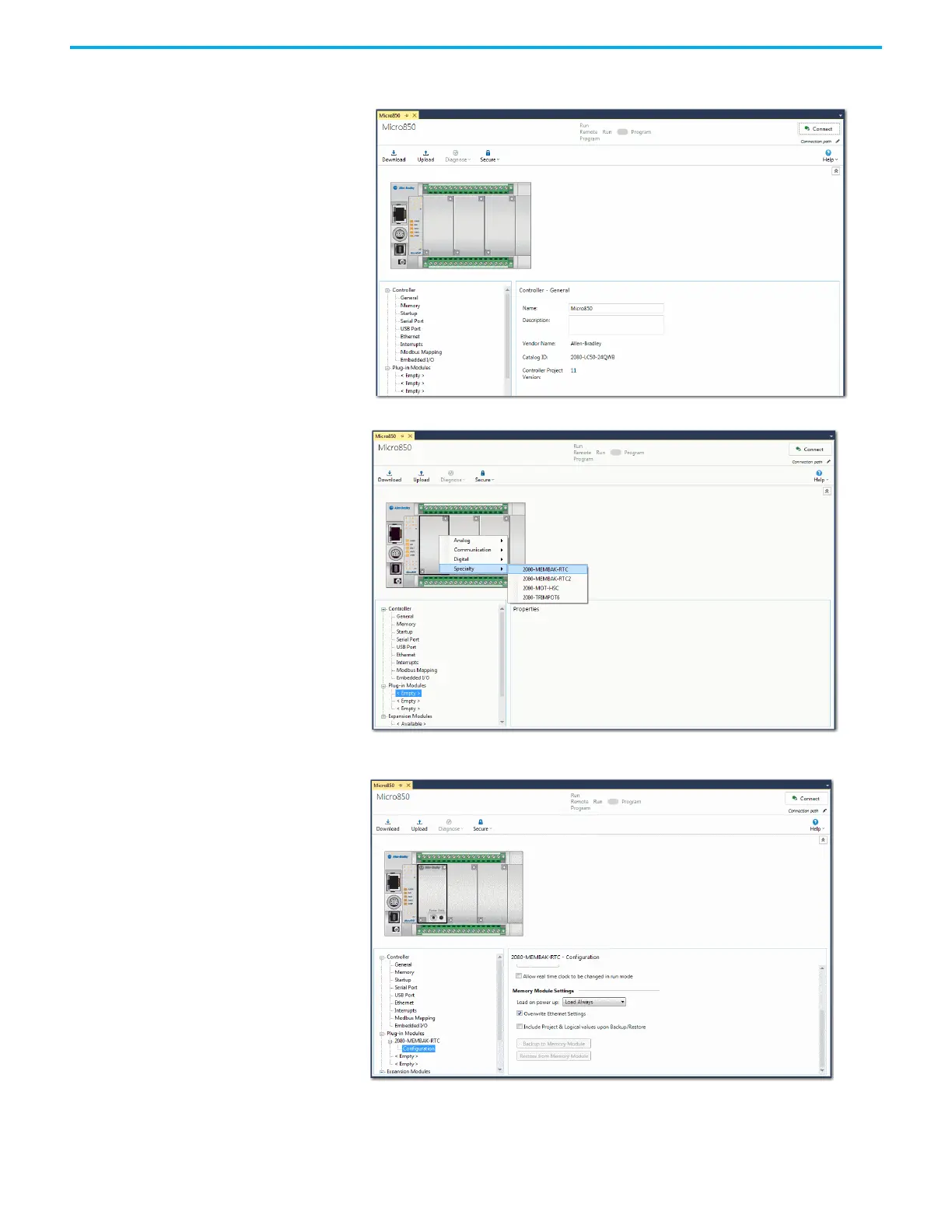

2. Double-click the controller icon under Project Organizer to bring up the controller

properties window.

3. Add the memory module to the first slot in the controller.

4. Click Configuration under the MEMBAK-RTC properties and select “Load Always” or “Load

on Memory Error” for the Load on power up option.

5. Build and Download the project to the controller.
