Rockwell Automation Publication 2080-UM002N-EN-E - November 2022 253
Chapter 12 Using microSD Cards
Upload Data Log File
You can retrieve data log files from the microSD card using a card reader or by uploading the
data logs through the Connected Components Workbench software.

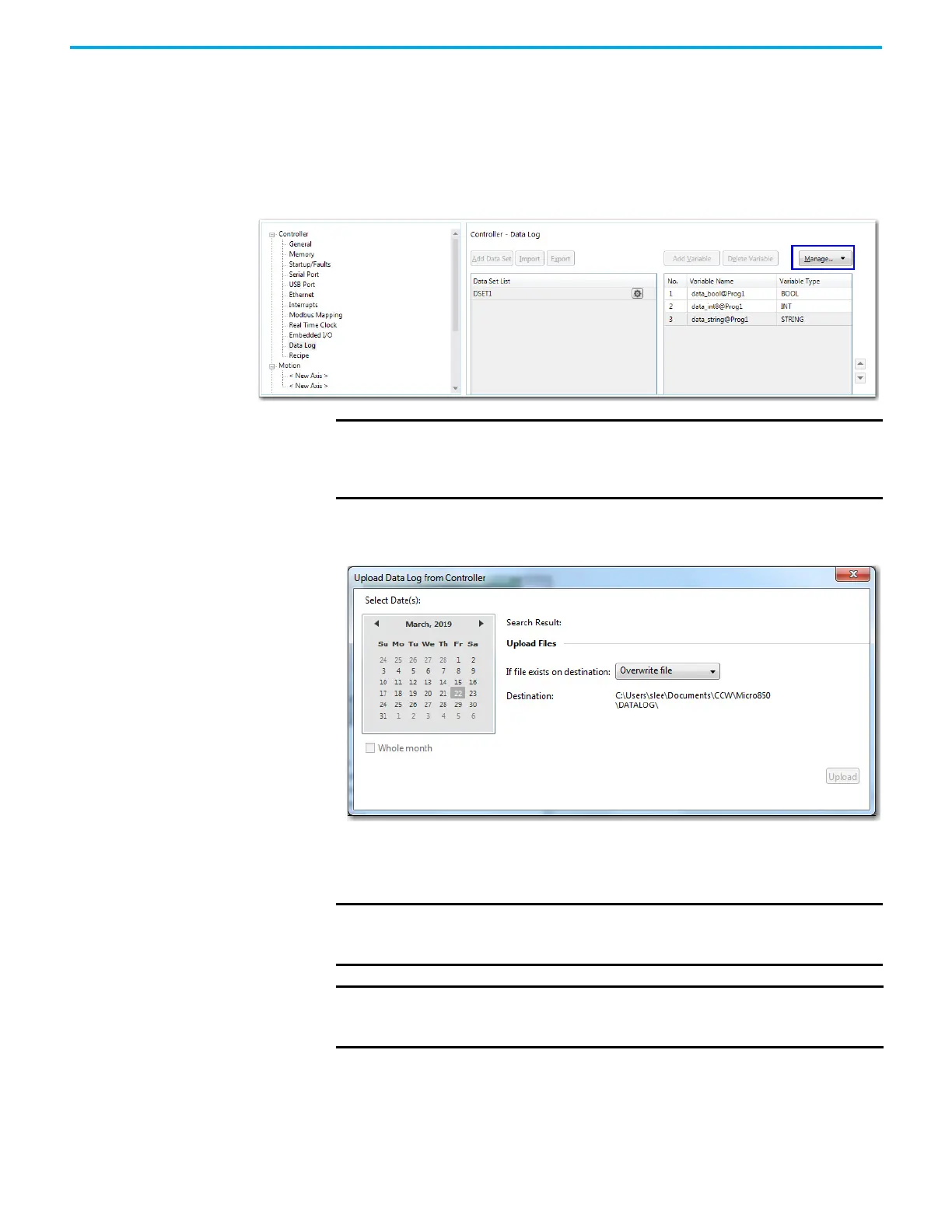

1. To use the Upload feature, go to the Properties section of your project in the Connected
Components Workbench software.
2. Select Data Log. Click Manage and then choose Upload.
3. From the Upload window that appears, select the date of the data log files that you
would like to upload. You can upload data logs for the entire month by clicking Whole
Month option button.
4. If the file already exists in your destination folder, select whether you would like to
Overwrite file, Skip file, or Preserve both files.
5. Click Upload. The progress bar should tell you whether the upload is successful or not.
IMPORTANT The Manage button is not available in DEBUG mode. You need to stop
DEBUG mode to use the Manage button to upload data log files.
Uploading data log files in PROGRAM mode is recommended for
performance and file locking reasons.
IMPORTANT Do not take out the microSD card from the slot while data is being
written or retrieved from the card. Ongoing write and retrieval
operations are indicated by a flashing SD status LED.
IMPORTANT For better data log file management, you can use a third-party tool or
DOS CMD to merge all your data log files into a single file and import as a
CSV file in Excel®.
