Appendix B Quickstarts

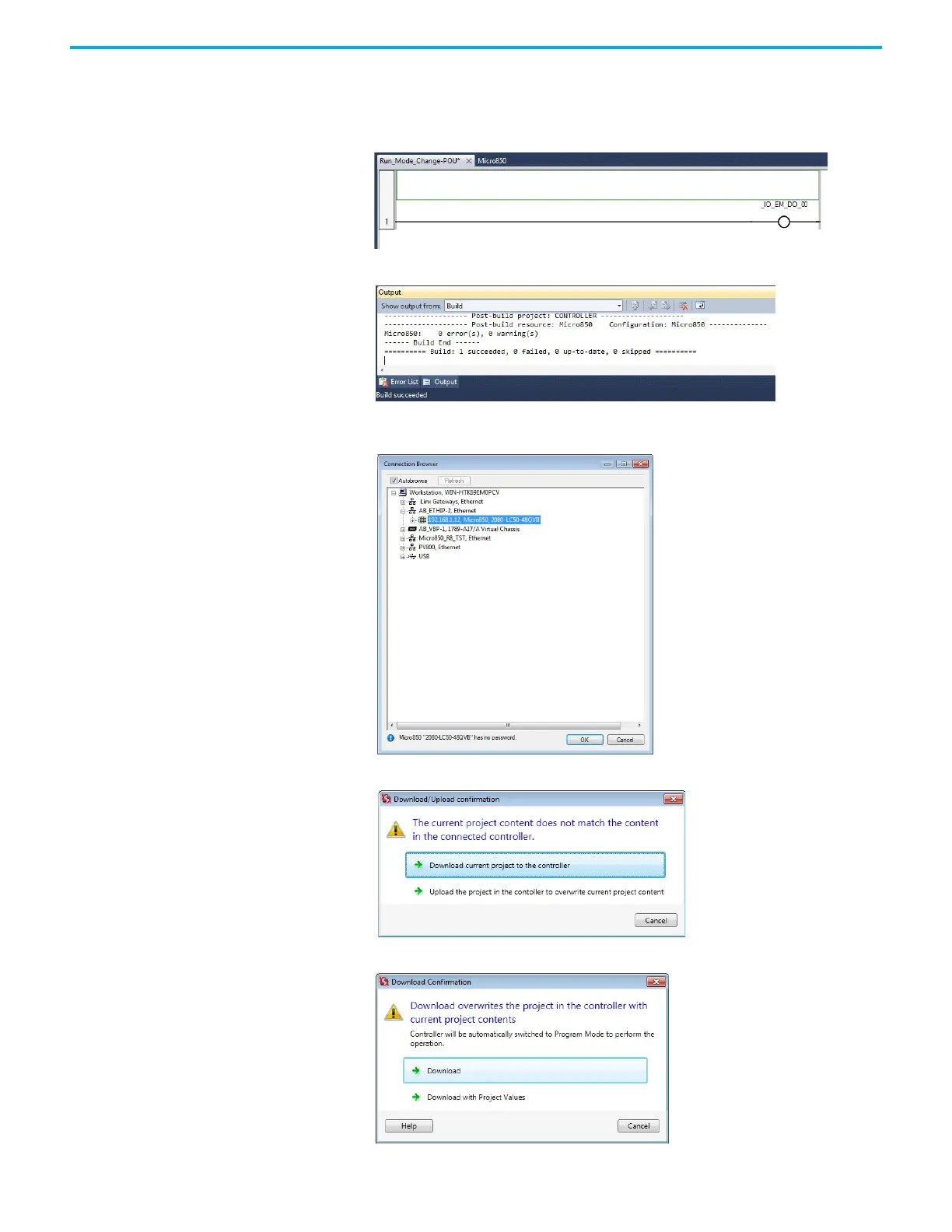

3. From the Toolbox, double-click Direct Coil to add it to the rung, or drag and drop Direct
Coil onto the rung.
4. Double -click the newly added Direct Coil to bring up the Variable Selector dialog and
select “_IO_EM_DO_00”.
5. Build the project.
6. Download the project to the controller.
In the Connection Browser dialog, select the Micro850 controller.
7. Select Download current project to the controller.
8. Select Download to confirm.
