Rockwell Automation Publication 2080-UM002N-EN-E - November 2022 35
Chapter 2 About Your Controller

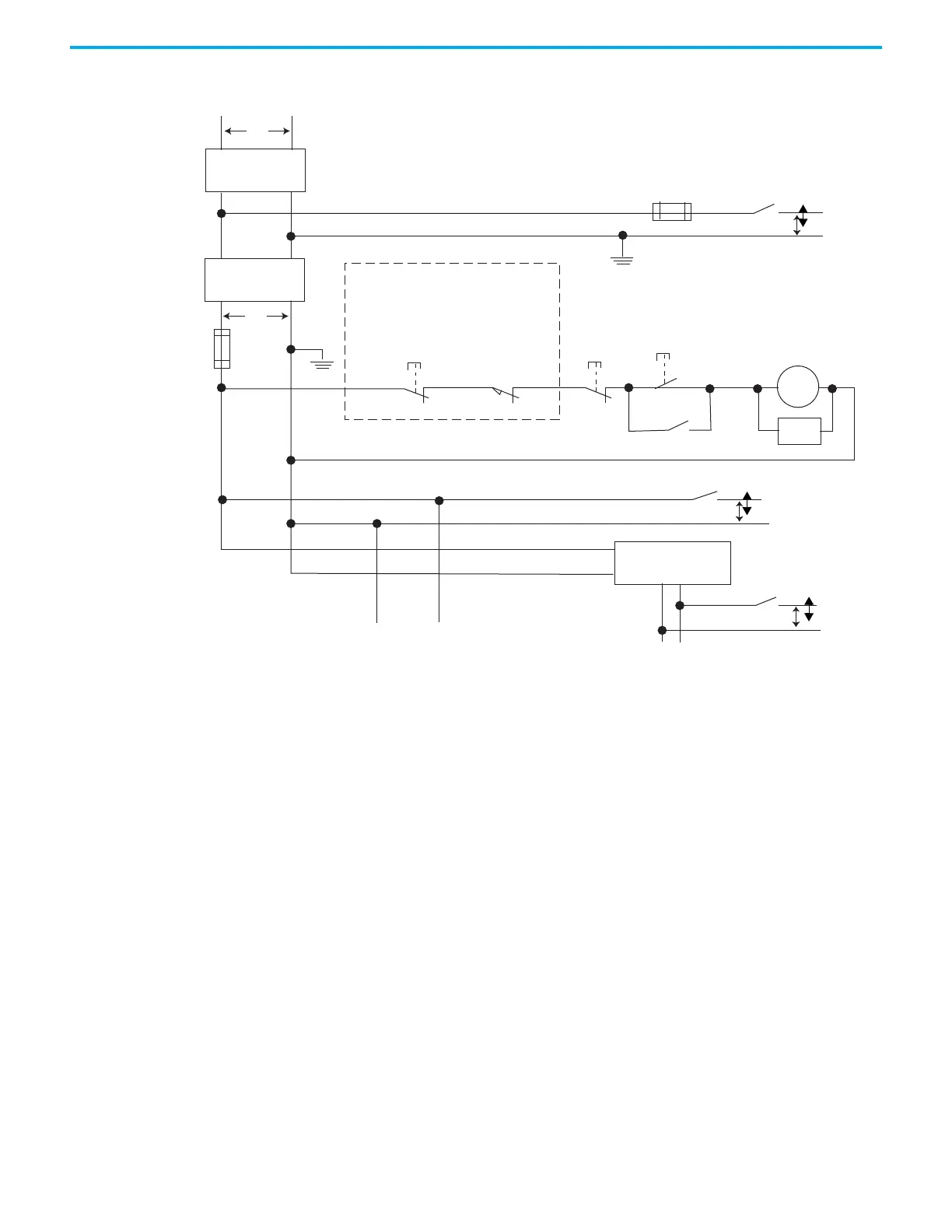

Figure 1 - Schematic – Using IEC Symbols
Disconnect
Isolation
transformer
Emergency-stop
push button
Fuse
MCR
230V AC
I/O circuits
Operation of either of these contacts will remove
power from the external I/O circuits, stopping
machine motion.
Fuse
Overtravel limit
switch
MCR
MCR
MCR
Stop
Start
Line terminals: Connect to terminals of power supply.
115V AC or 230V AC
I/O circuits
L1 L2
230V AC
Master Control Relay (MCR)
Cat. No. 700-PK400A1
Suppressor
Cat. No. 700-N24
MCR
Suppr.
24V DC
I/O circuits
(Lo)
(Hi)
DC power supply.
Use IEC 950/EN 60950
X1 X2
115V AC or
230V AC
Line terminals: Connect to 24V DC terminals of power supply.
_
+
To Next Page
