16 Rockwell Automation Publication 1756-UM004D-EN-P - August 2022

Chapter 1 ControlLogix EtherNet/IP Network Device Overview

How to Determine if the Module is in Explicit Protected Mode

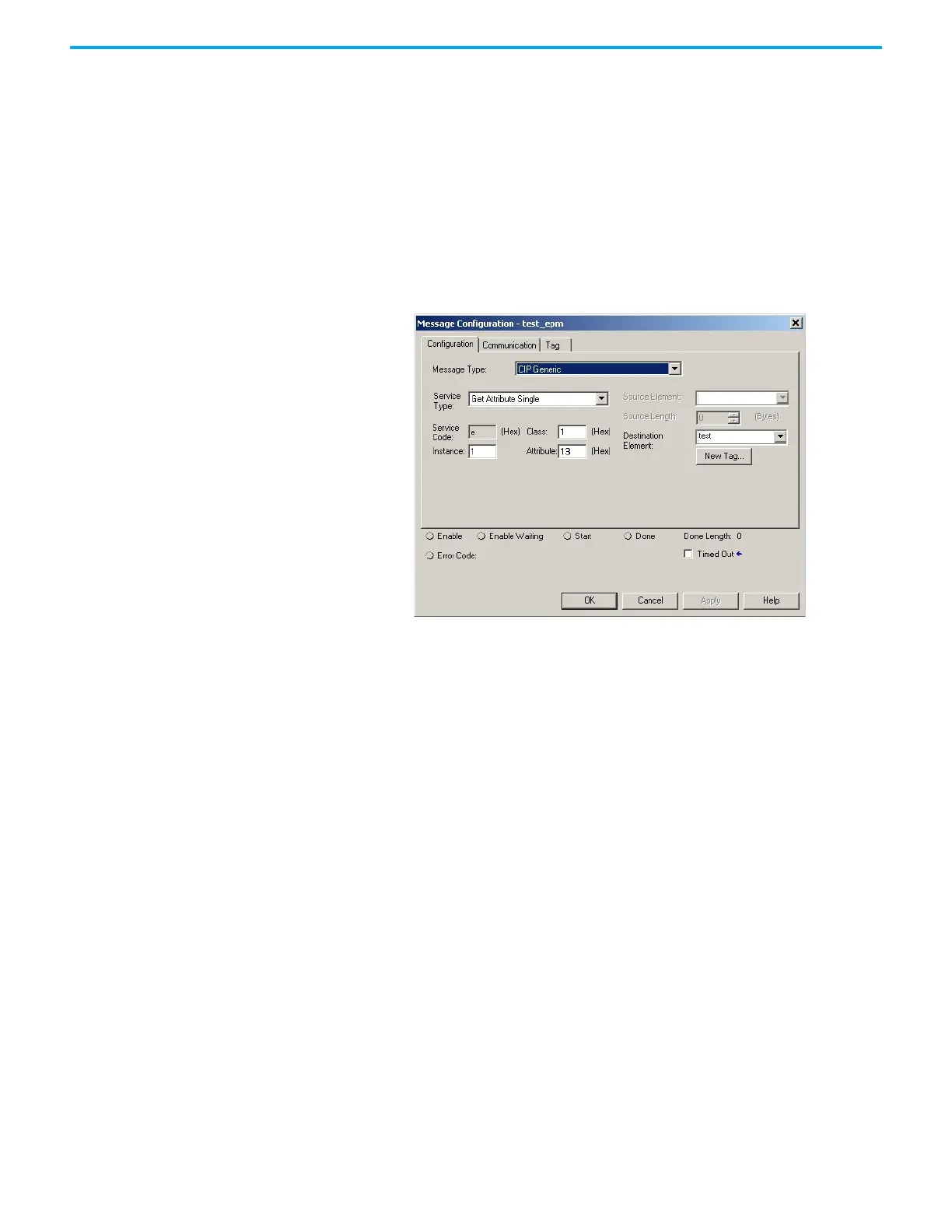

To determine if your module is in explicit protected mode, either view the AOP

Module information page, or create a Generic CIP message. Set the following

parameters:

• Service Type: Get Single Attribute

•Class = 1

• Instance = 1

• Attribute = 13(Hex)

The Destination Element Tag must be the INT type. Bit 3 is explicit protected

mode and a value of 1 indicates that protected mode is enabled.
