Chapter 1 ControlLogix EtherNet/IP Network Device Overview
How to Determine if the Module is in Explicit Protected Mode

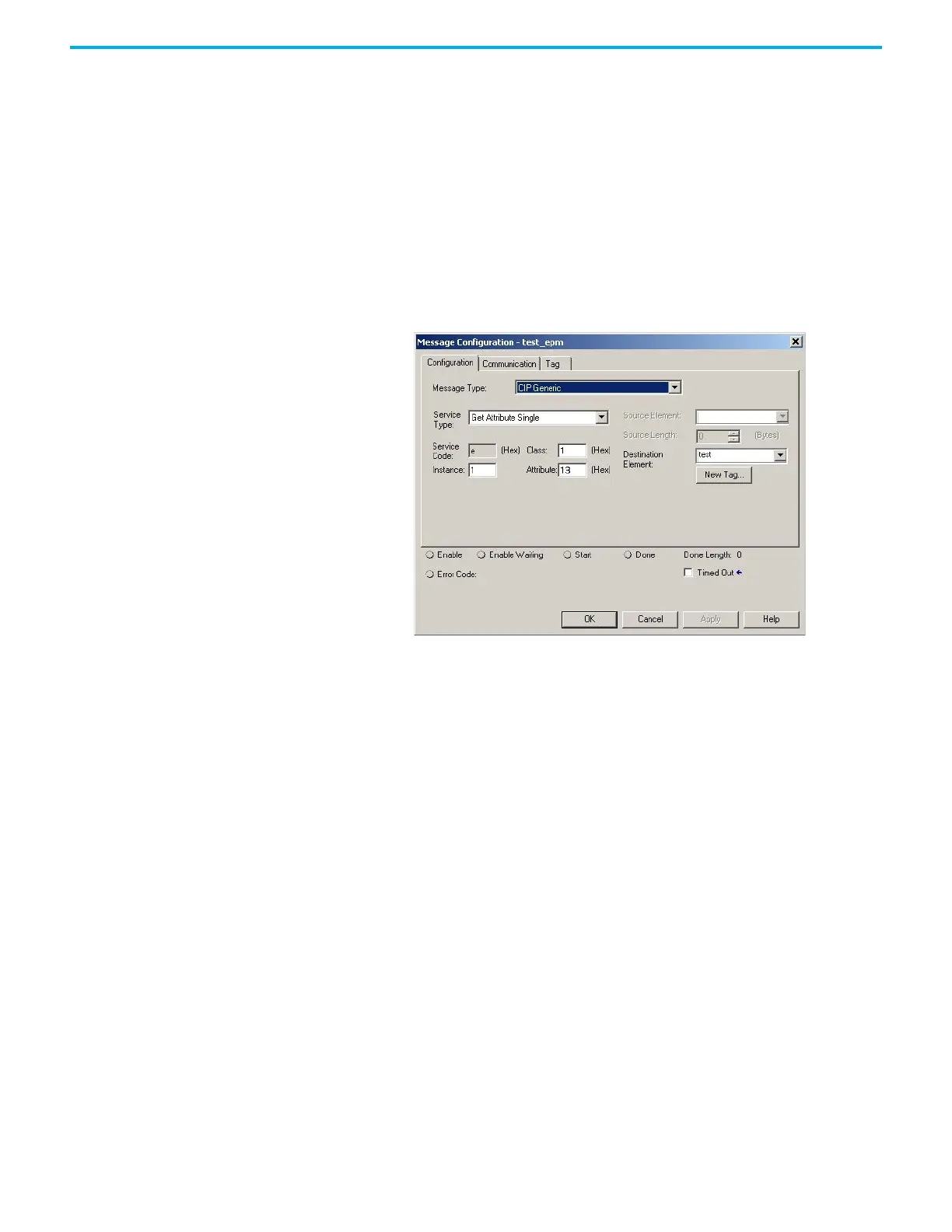

To determine if your module is in explicit protected mode, either view the AOP
Module information page, or create a Generic CIP message. Set the following
parameters:
• Service Type: Get Single Attribute
•Class = 1
• Instance = 1
• Attribute = 13(Hex)
The Destination Element Tag must be the INT type. Bit 3 is explicit protected
mode and a value of 1 indicates that protected mode is enabled.
