Rockwell Automation Allen-Bradley ControlLogix 1756-EN2F User Manual

Rockwell Automation Publication 1756-UM004C-EN-P - June 2021 45
Appendix A
ControlLogix Network Device Status Indicators
Status Indicators The following graphics show the status indicators for these modules
(extended-temperature versions not shown).

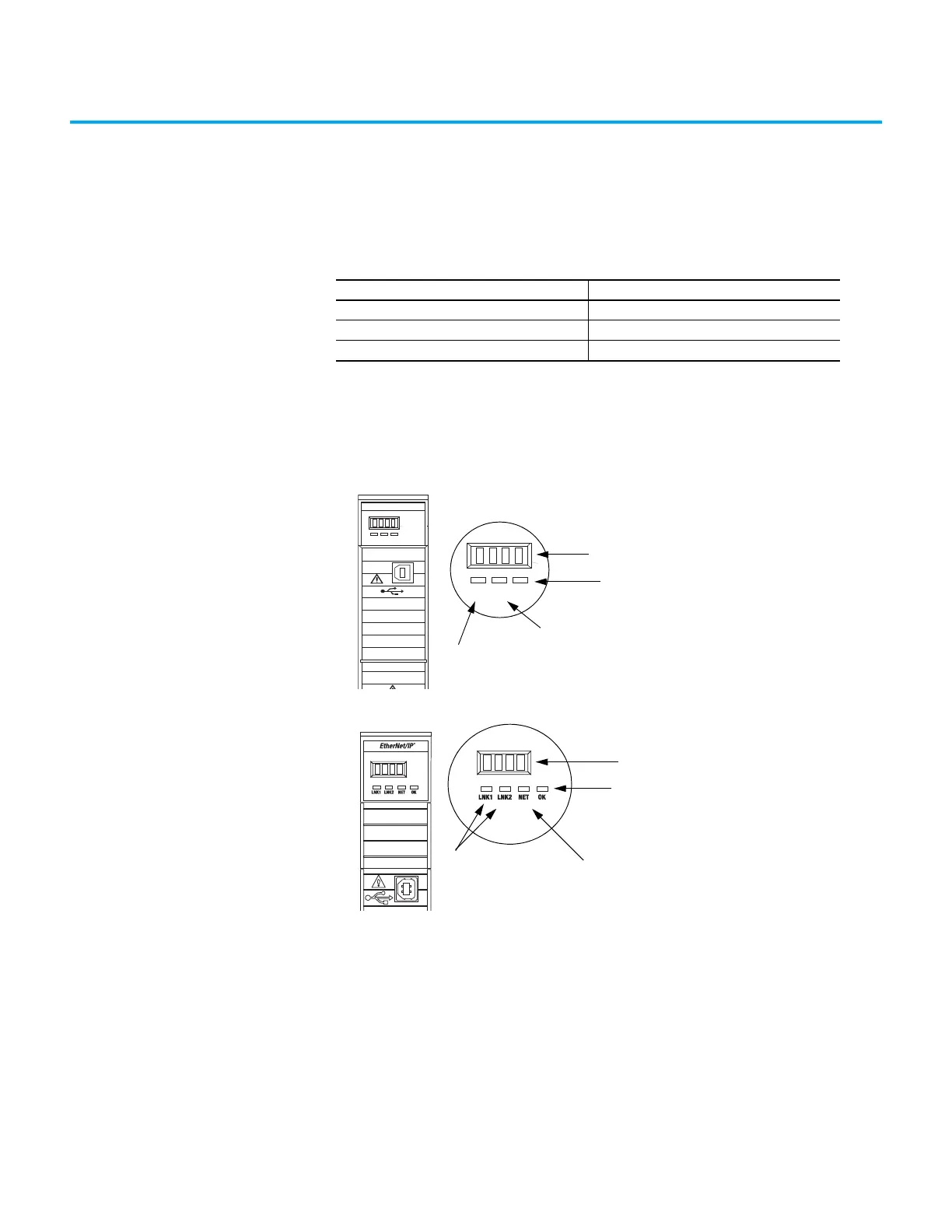

Figure 13 - 1756-EN2F, 1756-EN2T (Single-port Modules)
Figure 14 - 1756-EN2TR, 1756-EN3TR (Dual-port Modules)
Topic Page
Status Indicators 45
Single-Port Module Status Indicators 47
Dual-Port Module Status Indicators 49
LINK NET OK
10/100 BASE T
EtherNet/IP
TM
LINK NET OK
OK Status Indicator
Module Status Display
Link Status
Indicator (LINK)
Network Status Indicator (NET)
Module Status Display
OK Status Indicator
Network Status Indicator (NET)
Link Status
Indicators (LINK)
