38 Rockwell Automation Publication 1756-UM004C-EN-P - June 2021
Chapter 3 Connect Redundant EtherNet/IP Adapters

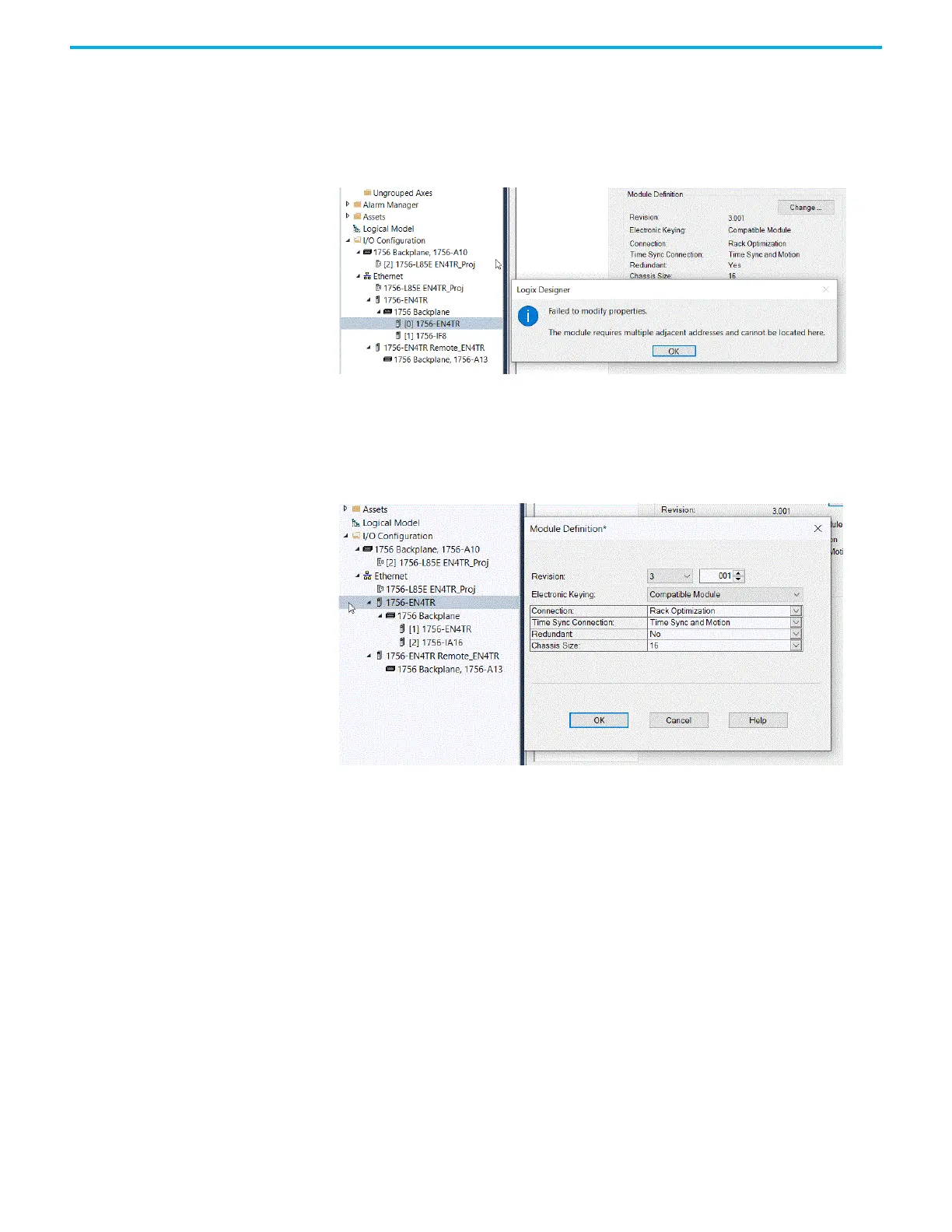

In the following figure, there is an example of an I/O module in slot 1. Even
with a 1756-EN4TR in slot 0, with any other module apart from a second
1756-EN4TR in slot 1 (in this example it is the 1756-IF8) you cannot enable
redundancy. On the module redundancy page, any attempt made to change
the redundant function to "yes" will result in the following error.
If you try to make a redundancy system starting in any other slot in the chassis
other than slot 0, the redundancy option will not be available on the module
definition configuration screen. The redundant adapter must be present in
slot 0.
