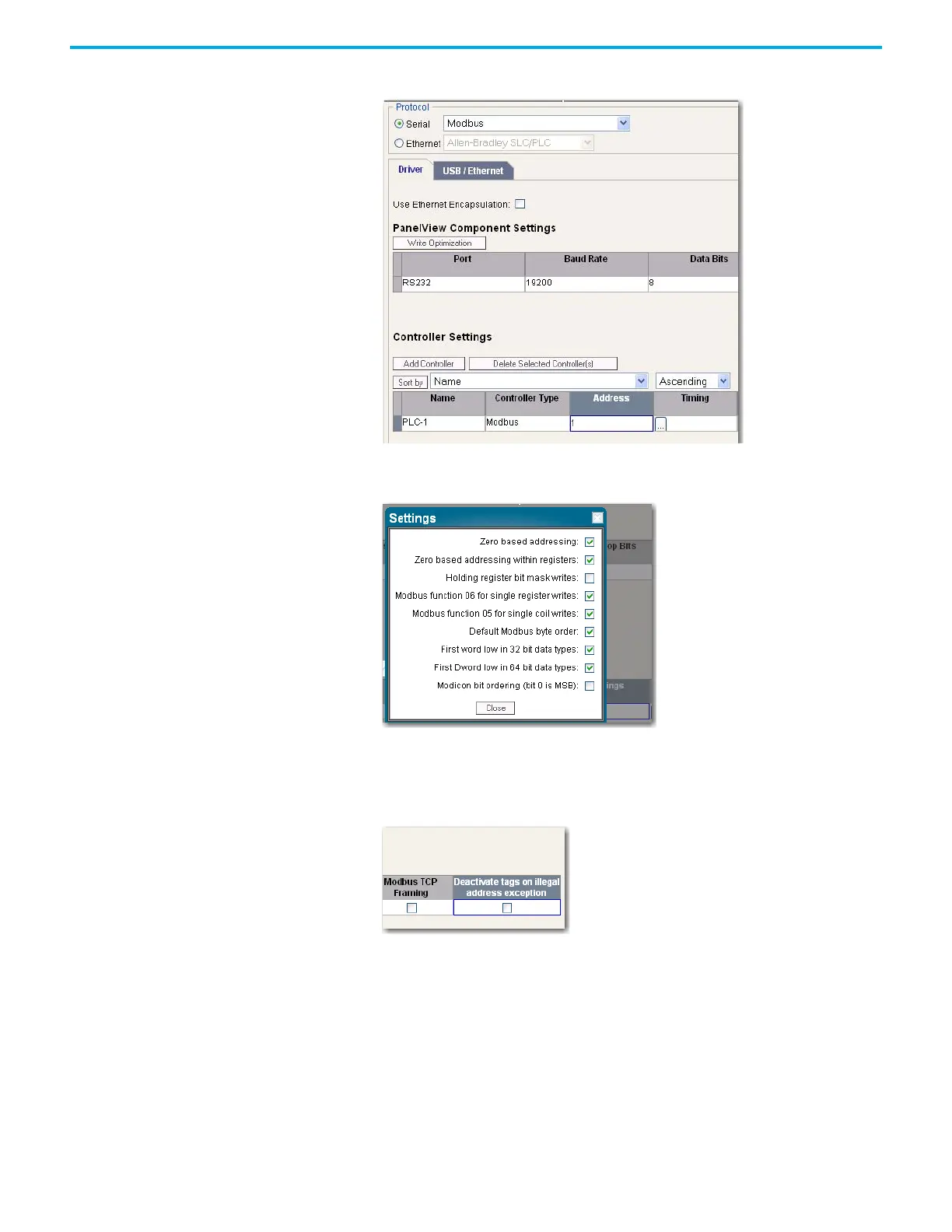

1. Change from DF1 to Modbus protocol.
2. Set the Address of Micro800 slave to match the serial port configuration
for the controller.
3. Deactivate Tags on Error. This is to prevent the requirement of power
cycling PVC when new Modbus Mappings are downloaded from the
Connected Components Workbench software to the Micro800
controller.
Example 2, Micro800 (Master) to PowerFlex 4M Drive (Slave)
The following is the overview of the steps to be taken for configuring a
PowerFlex 4M drive.
Parameter numbers listed in this section are for a PowerFlex 4M and will be
different if you are using another PowerFlex 4-Class drive.
