38 Rockwell Automation Publication 2080-UM002L-EN-E - November 2021
Chapter 3 Install Your Controller

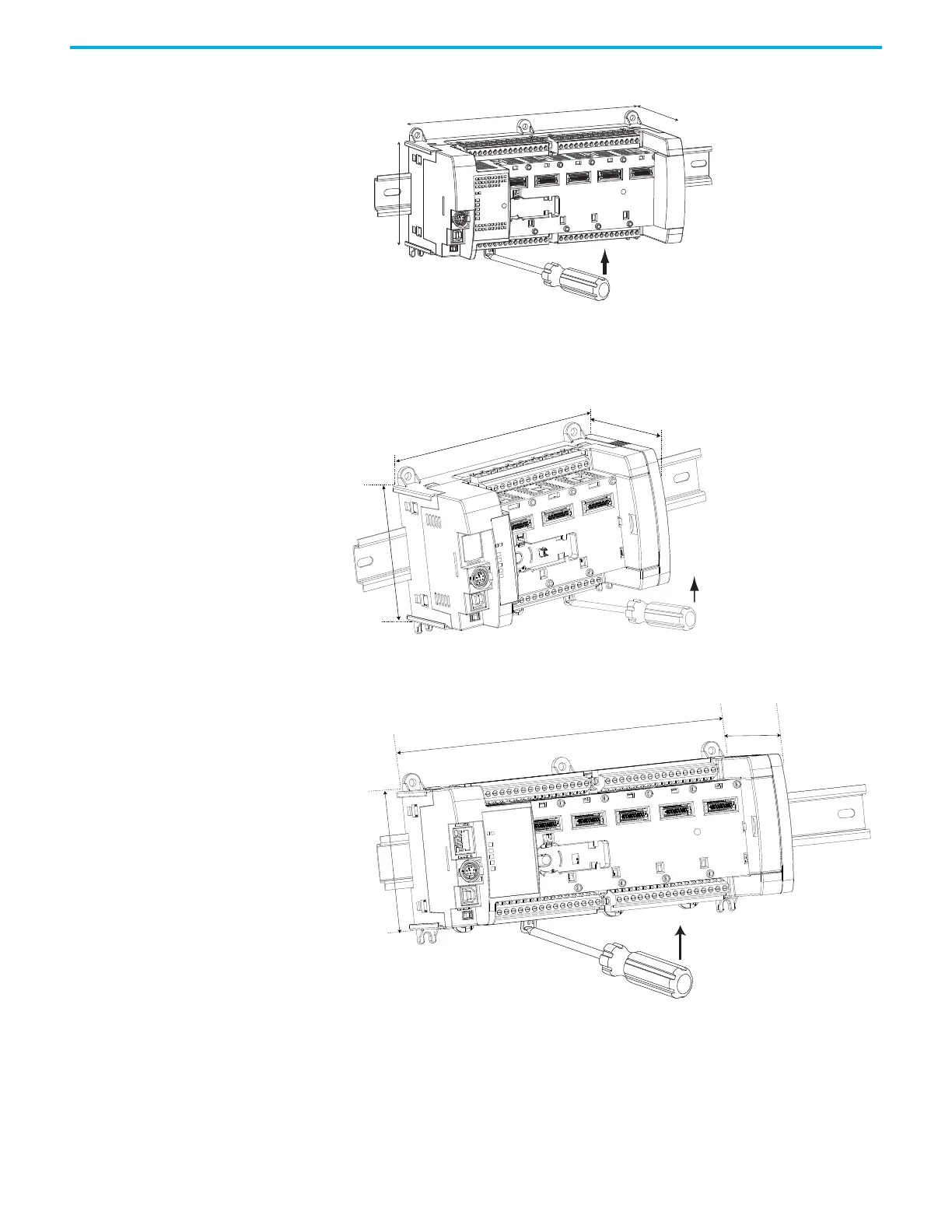

Micro830 48-point Controllers 2080-LC30-48AWB, 2080-LC30-48QWB, 2080-LC30-48QVB, 2080-LC30-48QBB
Micro850 24-point Controllers 2080-LC50-24AWB, 2080-LC50-24QBB, 2080-LC50-24QVB, 2080-LC50-24QWB
Micro870 24-point Controllers 2080-LC70-24AWB, 2080-LC70-24QWB, 2080-LC70-24QWBK,
2080-LC70-24QBB, 2080-LC70-24QBBK
Micro850 48-point Controllers 2080-LC50-48AWB, 2080-LC50-48QWB, 2080-LC50-48QBB, 2080-LC50-48QVB
Maintain spacing from objects such as enclosure walls, wireways, and adjacent
equipment. Allow 50.8 mm (2 in.) of space on all sides for adequate ventilation.
If optional accessories/modules are attached to the controller, such as the
power supply 2080-PS120-240VAC or expansion I/O modules, make sure that
there is 50.8 mm (2 in.) of space on all sides after attaching the optional parts.
210 (8.27)
80 (3.15)
90 (3.54)
Measurements in mm (in.)
158 (6.22)
80 (3.15)
90 (3.54)
Measurements in mm (in.)
238 (9.37)
80 (3.15)
90 (3.54)
Measurements in mm (in.)
