56 Rockwell Automation Publication 20P-TD001K-EN-P - January 2021
PowerFlex DC Drive and Field Controller Technical Data

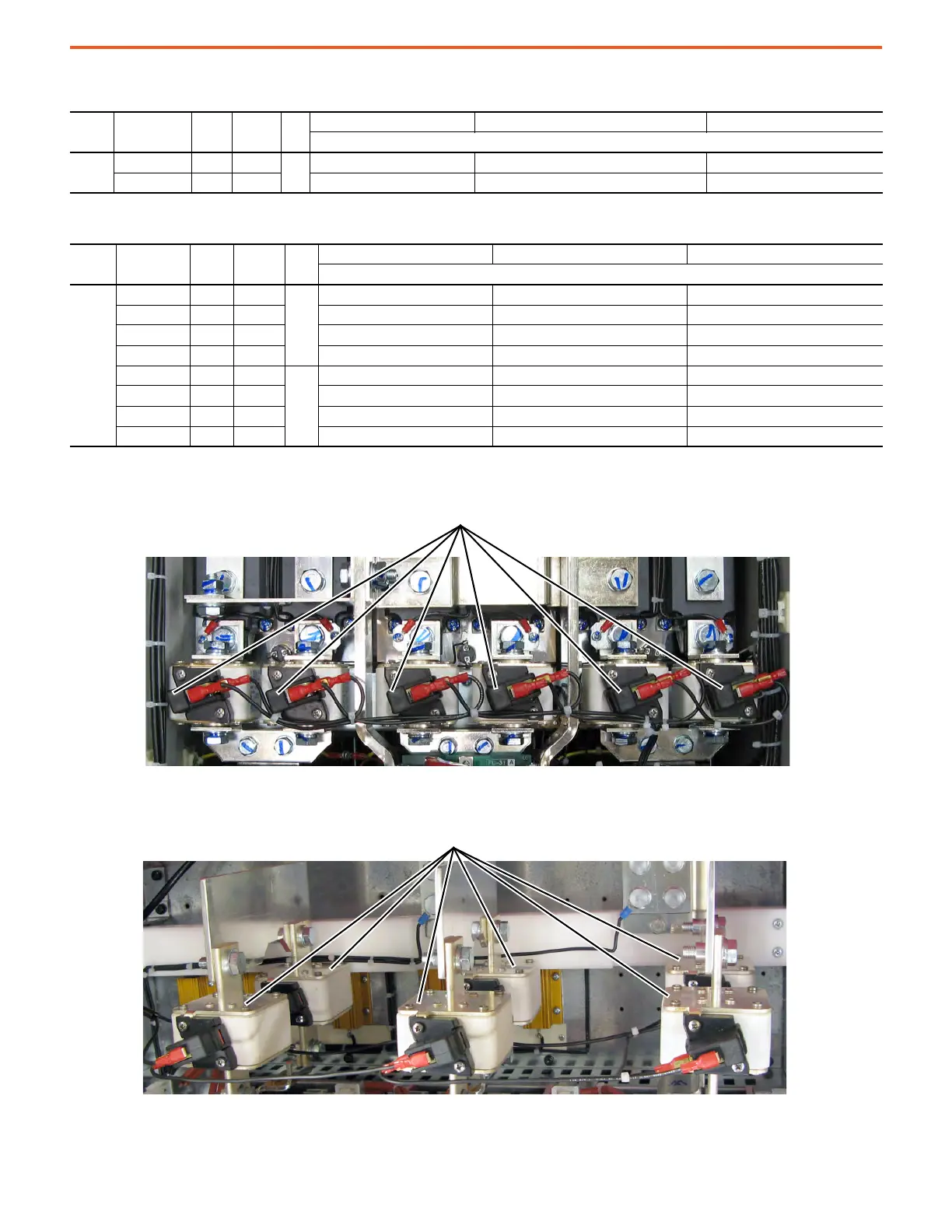

Frame C Regenerative Drive - Leg Fuse Location
Frame D Regenerative Drive - Leg Fuse Location
Leg Fuses - 690V AC Input Frame C Drives
Frame
Drive Current
Rating Code
DC
Amps
AC Line
Amps
Qty
Bussmann Mersen SIBA
Square Body - Flush End Contact
C
452 452 369
6
170M5394 + switch 170H0069 12,5 URD 72 TTF 0500 + switch MS 3V 1-5 BS 20 771 32.500 + switch 28 001 04
565 565 461 12,5 URD 72 TTF 0630 + switch MS 3V 1-5 BS 20 771 32.630 + switch 28 001 04
Leg Fuses - 690V AC Input Frame D Drives
Frame
Drive Current
Rating Code
DC
Amps
AC Line
Amps
Qty
Bussmann Mersen SIBA
Square Body - DIN 43653 Stud-Mount
D
678 678 553
6
170M6244 + switch 170H0069 G300570 + switch MS 3V 1-5 UR 20 735 32.630 + switch 28 001 04
791 791 645 170M6246 + switch 170H0069 J300572 + switch MS 3V 1-5 UR 20 735 32.800 + switch 28 001 04
904 904 738 170M6247 + switch 170H0069 K300573 + switch MS 3V 1-5 UR 20 735 32.900 + switch 28 001 04
1K0 1017 830 170M6248 + switch 170H0069 L300574 + switch MS 3V 1-5 UR 20 735 32.1000 + switch 28 001 04
1K1 1130 922
12
170M6244 + switch 170H0069 G300570 + switch MS 3V 1-5 UR 20 735 32.630 + switch 28 001 04
1K2 1243 1014 170M6244 + switch 170H0069 G300570 + switch MS 3V 1-5 UR 20 735 32.630 + switch 28 001 04
1K4 1413 1153 170M6245 + switch 170H0069 H300571 + switch MS 3V 1-5 UR 20 735 32.700 + switch 28 001 04
1K5 1582 1291 170M6246 + switch 170H0069 J300572 + switch MS 3V 1-5 UR 20 735 32.800 + switch 28 001 04
Note: Drive shown with front covers removed and
Control EMI shield lowered.
Leg fuses and switches are on the busbars behind the Control EMI shield,
which holds the Control board.
Note: Drive shown with Control EMI
shield in open position.
Leg fuses and switches are on the busbars behind the Control EMI shield,
which holds the Control board.
