58 Rockwell Automation Publication 20P-TD001K-EN-P - January 2021
PowerFlex DC Drive and Field Controller Technical Data

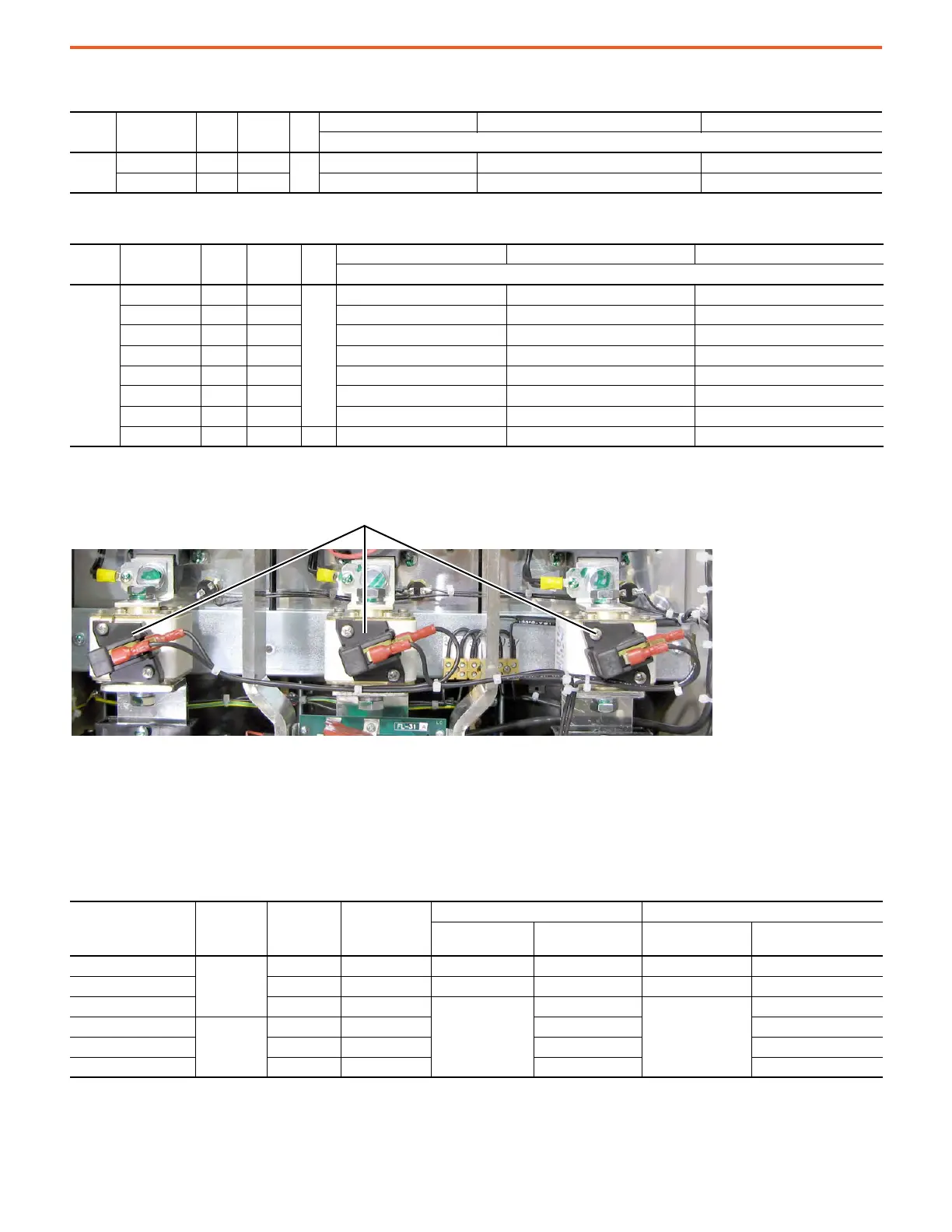

Frame C Non-Regenerative Drive - AC Input Line Fuse Location
PowerFlex DC Field Controller Input Fuses
Fast-acting AC input fuses are required on all field controllers to help protect the field converter. All AC input fuses must be sourced
separately and are mounted externally from the field converter. The required fuses are listed in the following table.
AC Input Line Fuses - 690V AC Input Frame C Drives
Frame
Drive Current
Rating Code
DC
Amps
AC Line
Amps
Qty
Bussmann Mersen SIBA
Square Body - Flush End Contact
C
452 452 369
6
170M5463 + switch 170H0069 6,9 URD 32 TTF 0700 + switch MS 3V 1-5 BS 20 671 32.700 + switch 28 001 04
565 565 461 170M5465 + switch 170H0069 6,9 URD 32 TTF 0900 + switch MS 3V 1-5 BS 20 671 32.900 + switch 28 001 04
Leg Fuses - 690V AC Input Frame D Drives
Frame
Drive Current
Rating Code
DC
Amps
AC Line
Amps
Qty
Bussmann Mersen SIBA
Square Body - DIN 43653 Stud-Mount
D
678 678 553
6
170M6260 + switch 170H0069 V300260 + switch MS 3V 1-5 UR 20 635 32.630 + switch 28 001 04
791 791 645 170M6262 + switch 170H0069 X300262 + switch MS 3V 1-5 UR 20 635 32.800 + switch 28 001 04
904 904 738 170M6263 + switch 170H0069 Y300263 + switch MS 3V 1-5 UR 20 635 32.900 + switch 28 001 04
1K0 1017 830 170M6264 + switch 170H0069 Z300264 + switch MS 3V 1-5 UR 20 635 32.1000 + switch 28 001 04
1K1 1130 922 170M6265 + switch 170H0069 A300262 + switch MS 3V 1-5 UR 20 635 32.1100 + switch 28 001 04
1K2 1243 1014 170M6266 + switch 170H0069 B300266 + switch MS 3V 1-5 UR 20 635 32.1250 + switch 28 001 04
1K4 1413 1153 170M6267 + switch 170H0069 C300267 + switch MS 3V 1-5 UR 20 635 32.1400 + switch 28 001 04
1K5 1582 1291 12 170M6262 + switch 170H0069 X300262 + switch MS 3V 1-5 UR 20 635 32.800 + switch 28 001 04
Cat. No. Frame Size DC Amps AC Line Amps
Bussman Mersen
Ferrule
FWP Type
North American
FWP Type
Ferrule A70QS Type
North American
A70P / A70QS Type
23PFCx017
A
17 14 FWP-25A14F FWP-25B A70QS25-14F A70P25-4
23PFCx060 60 49 FWP-80A22F FWP-80B A70QS80-22F A70QS80-4
23PFCx120 120 98
—
FWP-150A
—
A70QS150-4K
23PFCx245
B
245 201 FWP-300A A70QS300-4
23PFCx365 365 299 FWP-400A A70QS400-4
23PFCx570 570 467 FWP-600A A70QS600-4
Note: Drive shown with front covers removed and Control EMI shield lowered.
AC Input fuses and switches are on the bus bars behind the Control
EMI shield, which holds the Control board.
