66 Rockwell Automation Publication 20P-TD001K-EN-P - January 2021
PowerFlex DC Drive and Field Controller Technical Data
Approximate Dimensions – PowerFlex DC Drives (continued)

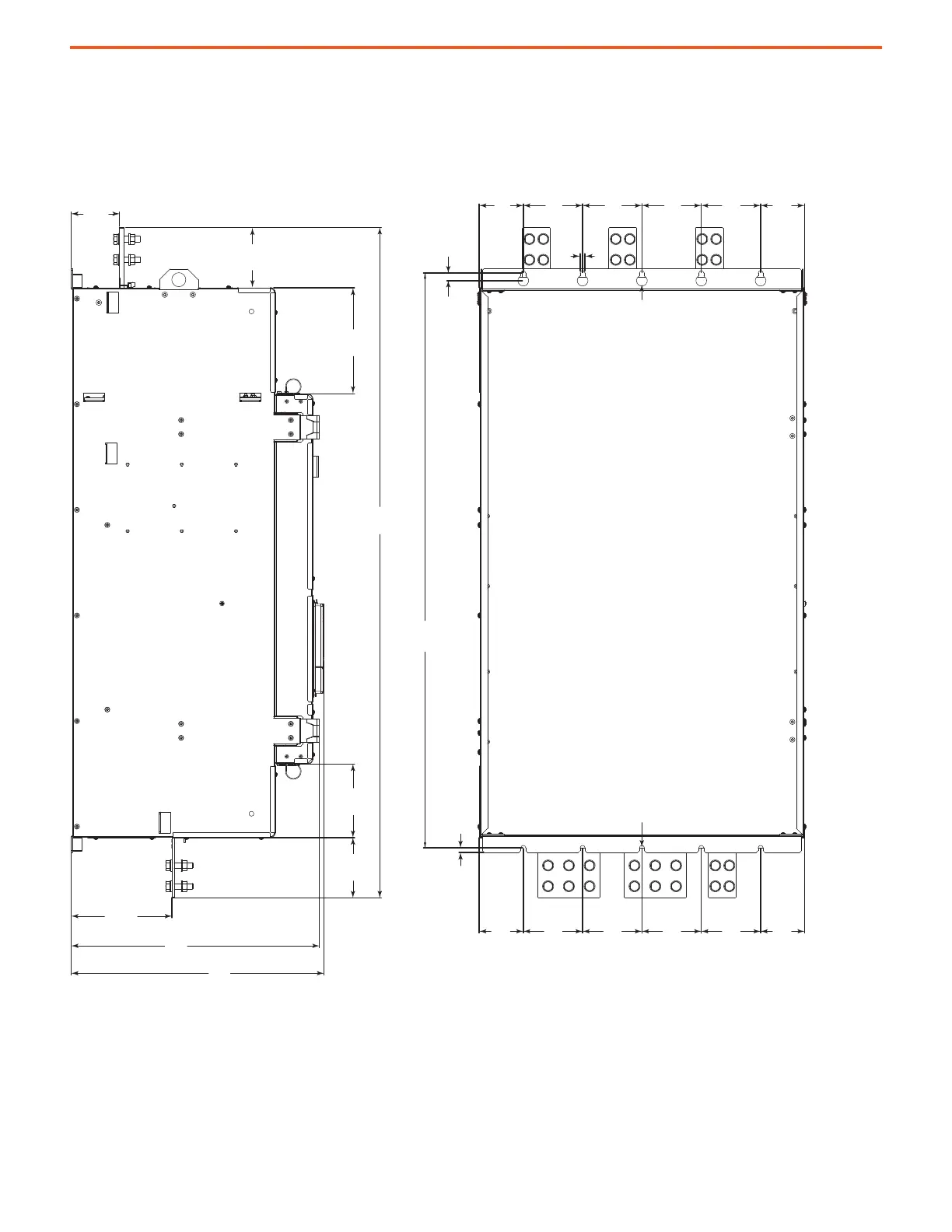

Frame D Dimensions - Left Side and Back Views
215.225
(8.5)
103.25
(4.1)
1435, max
(56.5)
129
(5.1)
129
(5.1)
Lifting Flange
227.5
(9.0)
157.5
(6.2)
1230
(48.4)
16
(0.6)
10
(0.4)
10.5
(0.4)
127
(5.0)
531
(21.0)
541
(21.3)
94
(3.7)
127
(5.0)
127
(5.0)
127
(5.0)
Mounting Holes (5)
Ø 23 (0.9)
Mounting Slots (5)
10.5 (0.4)
127
(5.0)
127
(5.0)
127
(5.0)
127
(5.0)
94
(3.7)
94
(3.7)
94
(3.7)
Dimensions are shown in mm and (in.)
