Step 3: Power Up, Configure the Modular Control Profiles
d. Navigate to parameters 0:306…309 [Subnet Cfg 1…4] corresponding the data collected in Table 2 on pa g e 10.
Press the EDIT soft key. Edit the value of each subnet mask octet. Press the ENTER soft key. The subnet mask
cannot be set to 0.0.0.0. If you set the subnet incorrectly, the drive uses DHCP.
e. Navigate to parameters 0:310…313 [Gateway Cfg 1…4] corresponding to the data collected in Tab l e 2
. Press
the EDIT soft key. Edit the value of each gateway address octet. Press the ENTER soft key.
If the gateway address is set to 0.0.0.0, the drive can only communicate with devices on the same subnet as the
drive. It is not able to communicate with devices on other subnets. If the gateway address is not set to 0.0.0.0,
then it must be set to an address that is on the same subnet as the IP address of the drive. If you set the gateway
incorrectly, the drive uses DHCP.
f. To accept the changes to the switch and parameter settings, perform a Reset Device procedure. See Appendix A
> Reset Device on page 53
for more information.
g. Verify the entered values of parameters 0:301…313. Active IP addresses are shown in the diagnostic items,
parameters 0:49…60.
Set the Embedded Ethernet Adapter IP Address Switches
Set the embedded Ethernet adapter IP address switches using Figure 3 and the information in Tab l e 4 .

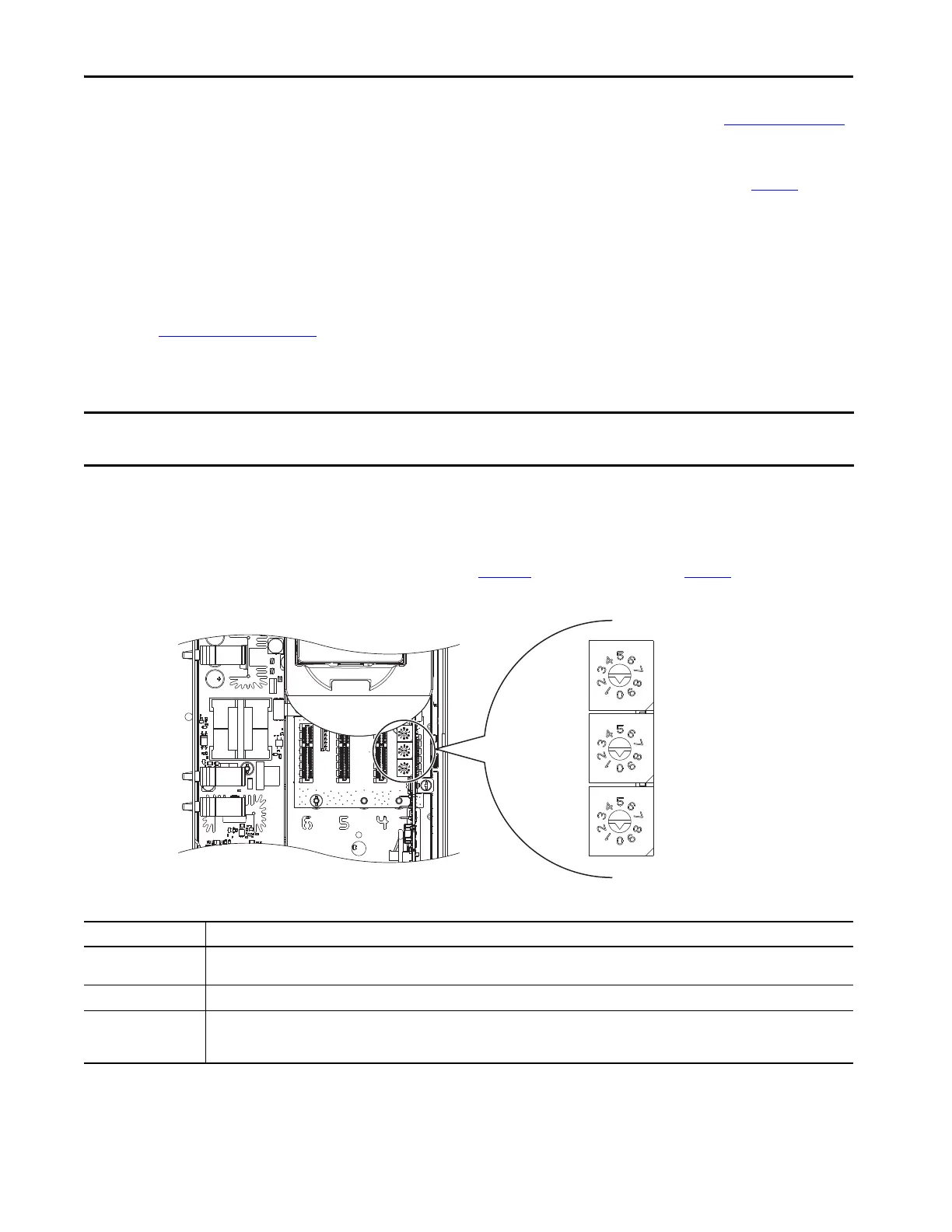

Figure 3 - Location of Ethernet Adapter IP Address Switches
Table 4 - Ethernet Adapter IP Address Switches
IMPORTANT Regardless of the method used to set the IP address on the adapter, each node on the EtherNet/IP network must have a unique
IP address. To accept IP address changes, you must perform a Reset Device procedure.
Possible Settings Description
000, 255…887,
889…999
(1)
(1) 999 is the default setting and disables the rotary switches.
Adapter uses, depending on 0:300 [Net Addr Sel], BOOTP setting, DHCP setting, or the adapter parameter settings for the IP address.
001…254 Adapter uses the rotary switch settings for the IP address (192.168.1.xxx, where xxx = rotary switch settings).
888 Resets the adapter IP address function to factory defaults. This setting also resets most parameters to factory defaults on a drive or bus supply.
Thereafter, the drive must be powered down, the switches set to a setting other than 888, and then the drive must be powered up again to accept the
new address.
