36 Rockwell Automation Publication 280E-PM001A-EN-P – August 2011
Chapter 4 ArmorStart
®
EtherNet/IP
™
Communications & Control Programming Manual

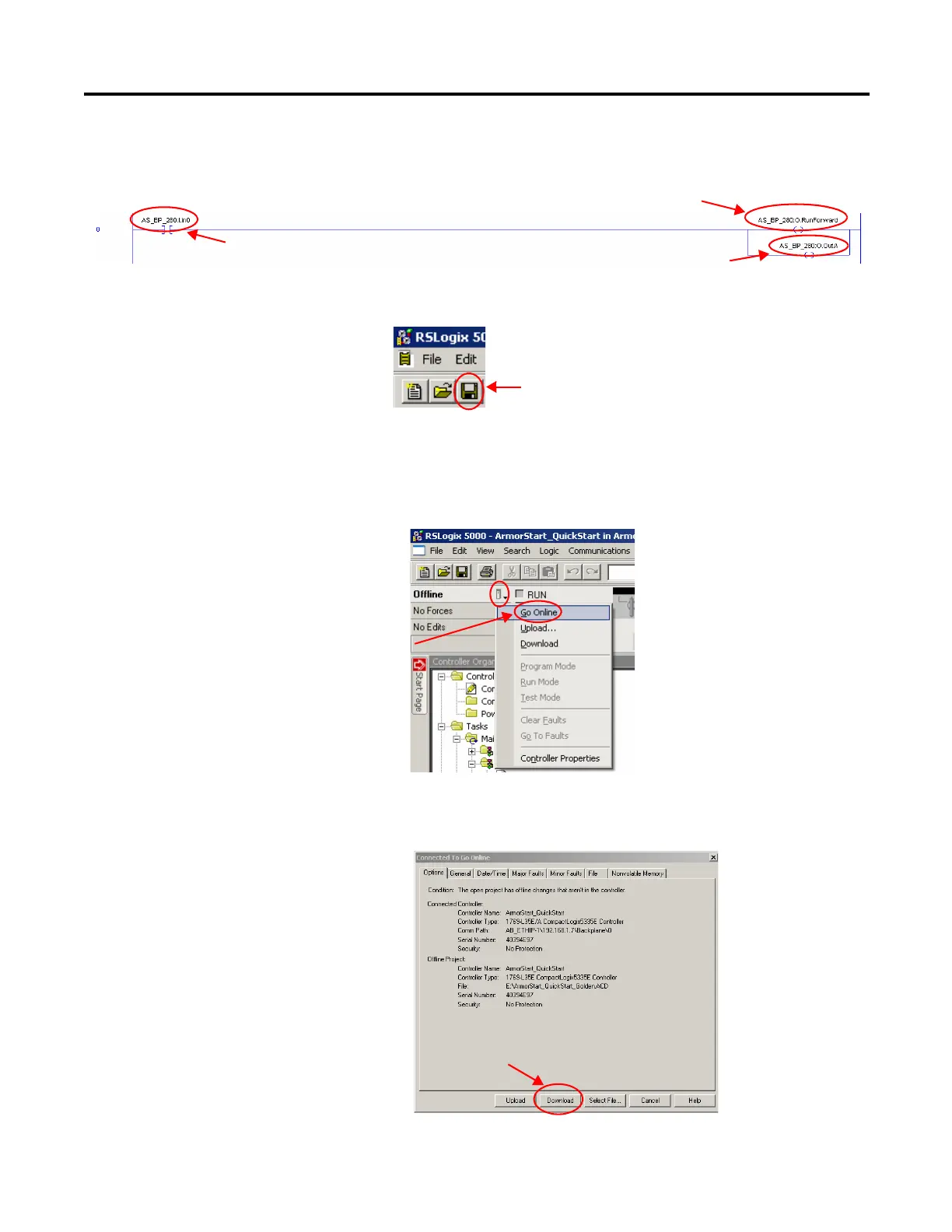

5. The completed Rung 0 should look like this. It does not matter which
output ladder element is on the top or bottom.
6. Save the project by clicking the Save icon or pressing CTRL+S.
7. Bring the controller online.
a. Click on the controller icon in the upper left hand corner of the screen
next to the word “Offline”, to show the available controller options.
Click on the Go Online option.
b. You may see a screen pop up that is similar to the figure below. Click on
Download to download the program to the controller.
Photo Sensor
Run Forward
Signal Light
To Next Page
