Rockwell Automation Publication 280E-PM001A-EN-P – August 2011 39
ArmorStart
®
EtherNet/IP
™
Communications & Control Programming Manual Chapter 4

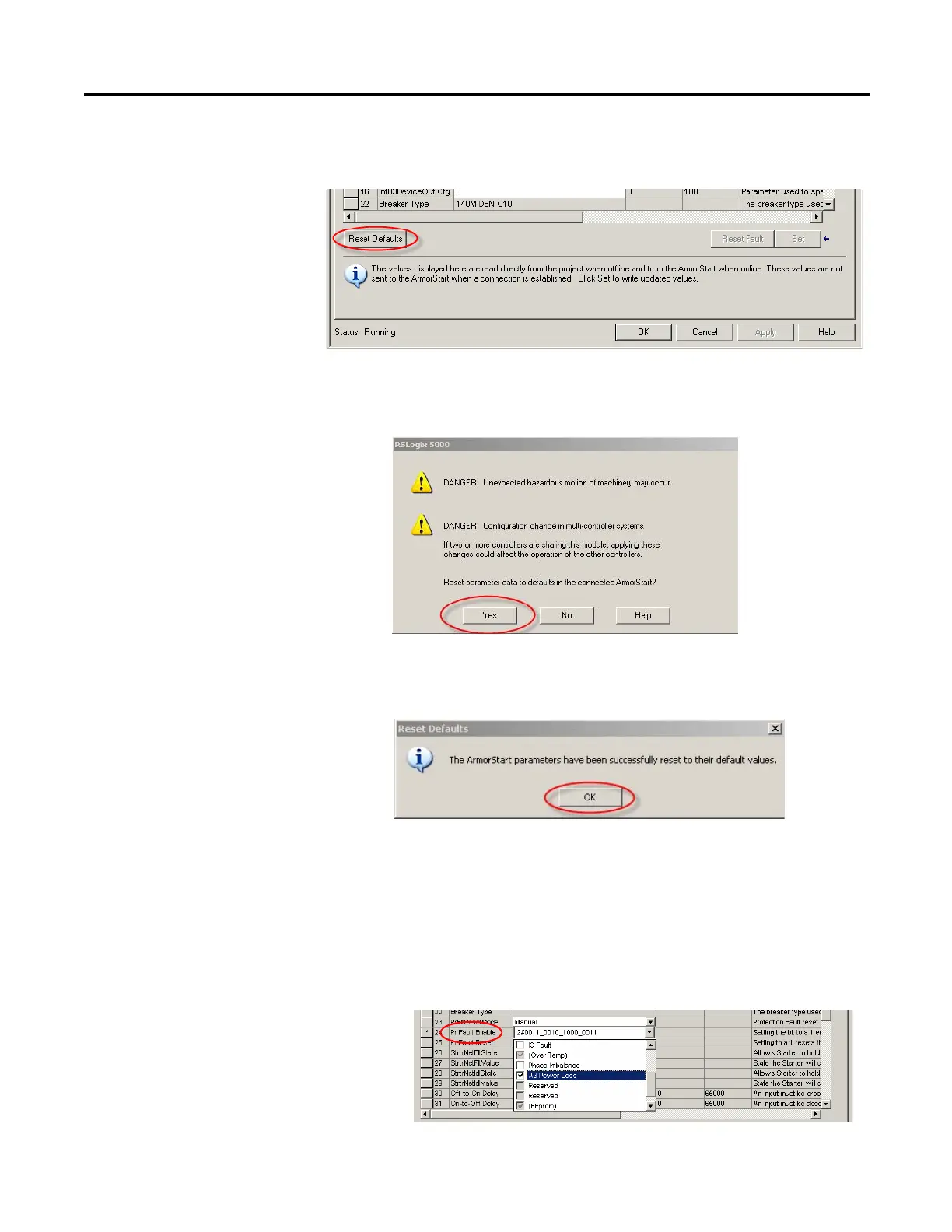

4. Reset the unit back to the factory default values by clicking on the Reset
Defaults button.
5. The following screen will pop up. This screen is confirming that you want
to reset the parameters within the ArmorStart unit. Click Ye s to continue.
6. This screen will pop up letting you know that the parameters have been
reset to their default values. Click OK to continue.
7. Scroll through the parameter list to parameters 24, 30, 31, 106, and 107.
a. Parameter 24 allows the user to enable or disable various protection
faults. Click on the value for parameter 24 and, using the scroll bar,
scroll down and check the box next to A3 Power Loss to enable this
fault. Choosing this causes the unit to fault if the unswitched A3
terminal power drops below 12V DC. The unswitched A3 terminal
powers both the inputs and the communications.
