Maintenance
Repair
MagneMover LITE Service Manual 87
Rockwell Automation Publication MMI-UM037A-EN-P - April 2020

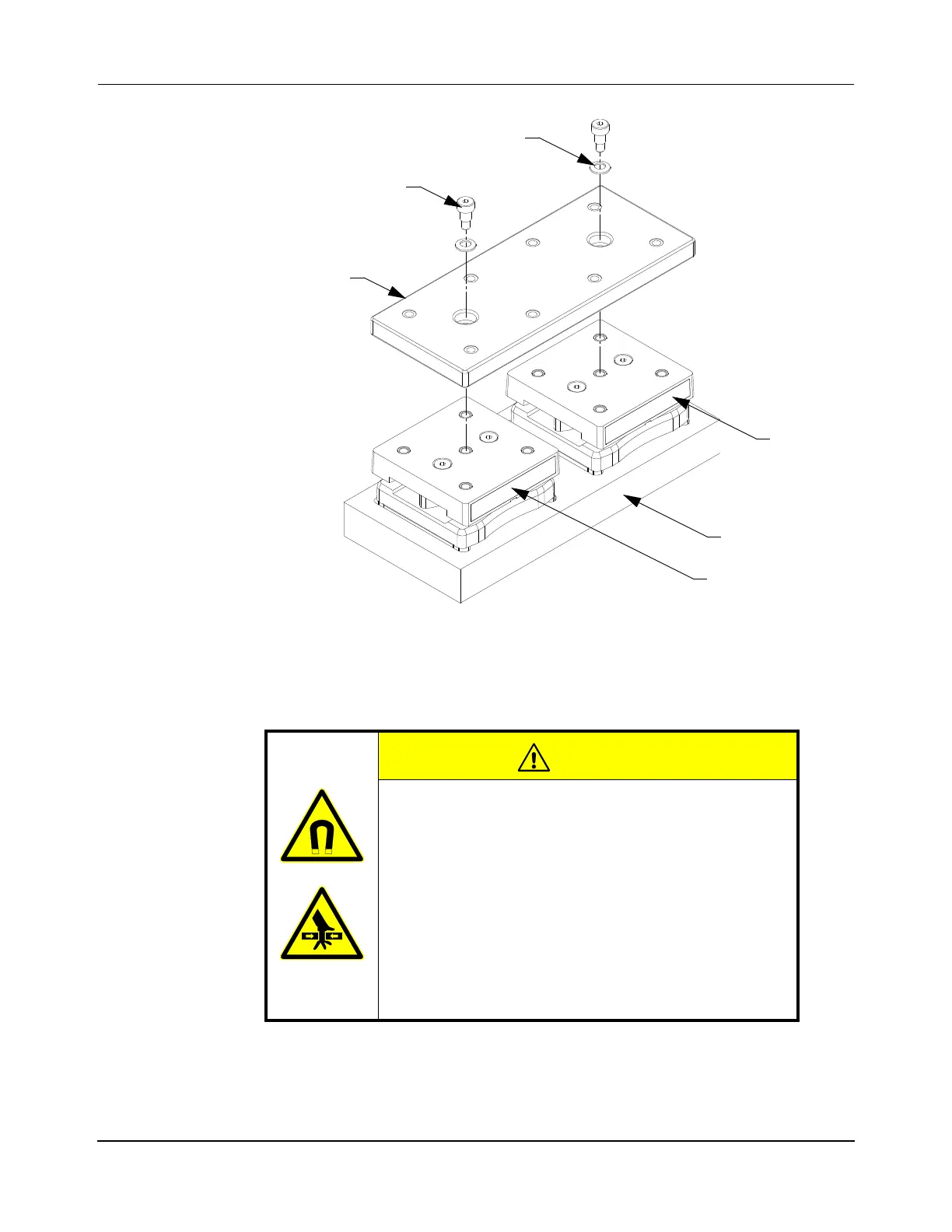

Figure 24: Remove Tandem Glide Puck Linkage Plate Assembly
6. With both pucks in the fixture, hold the left puck in place and lift the right puck out of
the fixture and away from the left puck.
7. Store the removed puck in its original shipping container, or wrap it in bubble-wrap,
for protection. Do not move one puck over, or near, the other puck.
CAUTION
Strong Magnets
To avoid injury from strong magnetic attractive
forces:
• Handle only one puck at a time.
• Do not place any body parts, such as fingers,
between the puck and any ferrous material or
another magnet array.
• Pucks not being used must be secured individu-
ally in isolated packaging.
Linkage Plate
Installation
Fixture
Puck
Puck
M4 Shoulder Screw
(2X)
Belleville Spring Washer
(2X)
