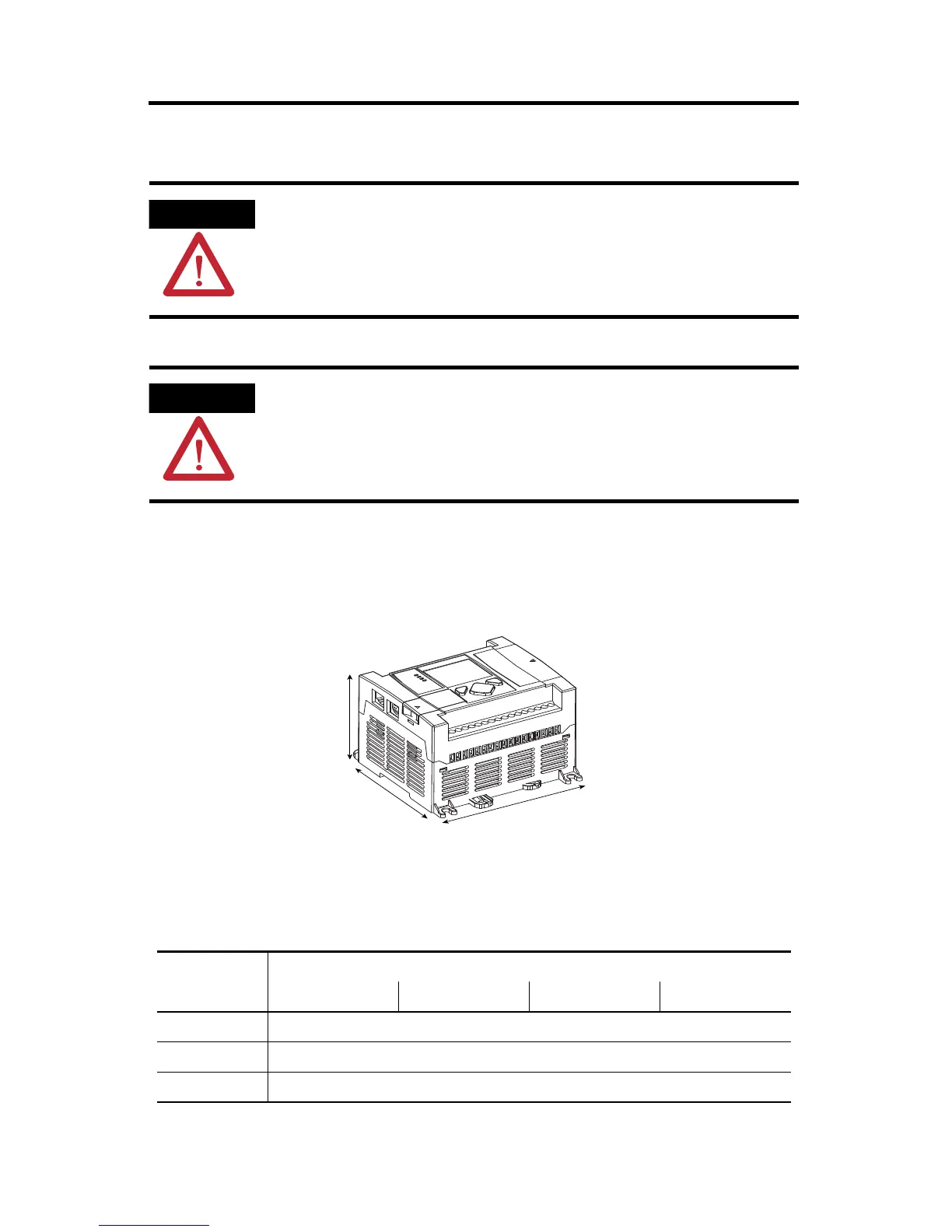

Mounting Dimensions
ATTENTION
Vertical mounting is not supported due to thermal considerations.
ATTENTION
Be careful of metal chips when drilling mounting holes for your controller or other
equipment within the enclosure or panel. Drilled fragments that fall into the controller
could cause damage. Do not drill holes above a mounted controller if the protective
debris strips have been removed.
Dimension 1763-
L16AWA L16BWA L16BBB L16DWD
A 90 mm (3.5 in.)
B 110 mm (4.33 in.)
C 87 mm (3.43 in.)
C
B
A
1763-L16AWA, 1763-L16BWA, 1763-L16BBB, 1763-L16DWD
