PowerFlex® DC Drive - Cooling Fan for Frame A Drives Rated 73A and Higher with 230V and 460V AC Input 5
Step 3: Remove the
Existing Fan
• Using a flathead screwdriver, carefully remove the fan cover plate from
the air flow plate and slide the fan out of the air flow housing.
Step 4: Install the New Fan
• Install the new cooling fan in the reverse order of removal as detailed in
step 3: Remove the Existing Fan
above.
Important:Verify that the air flow arrow on the fan is pointed inward,
toward the top of the drive.

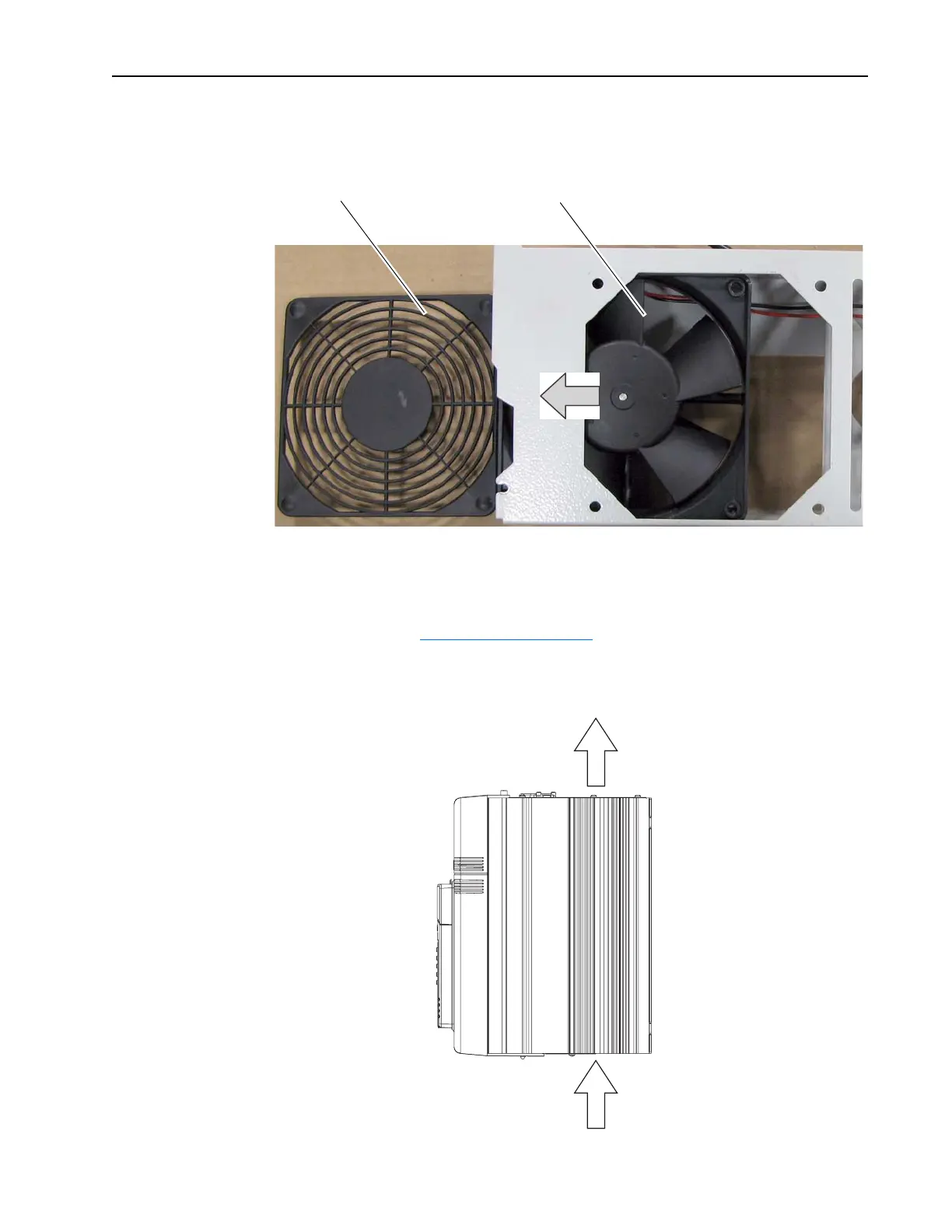

Remove fan cover plate
Slide fan out of air flow housing
Proper air flow direction
Side view
of drive
