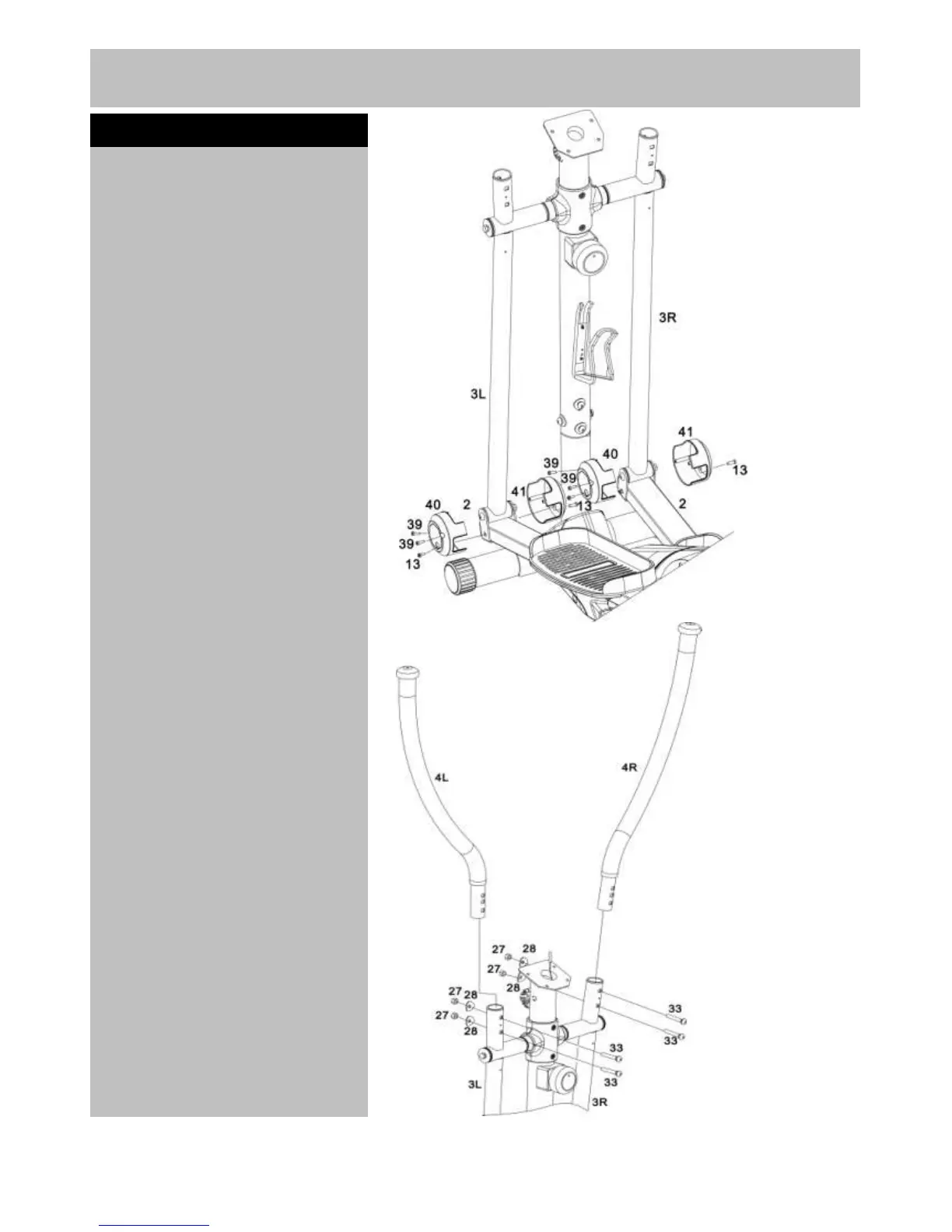

a. Attach Linkage Cover (40/41) to
the pivot of the Left Handrail Arm
(3L) and Left Foot Pedal Assembly
(2) using 2 x 15mm Philips Screws
(13) and 2 x 12mm Philips Screw
(39).
b. Reap Step a to install Right side.
c. Attach Left & Right Handrails
(4L & 4R ) to Left & Right Handrail
Arm (3L & 3R ) using 4 x 45mm
Carriage Bolts (33), 4 x 19 mm Arc
Washers (28) and 4 x Aircraft Nuts
(27).
