Roland AC-40 Service Notes

14
Jul. 2013 AC-40

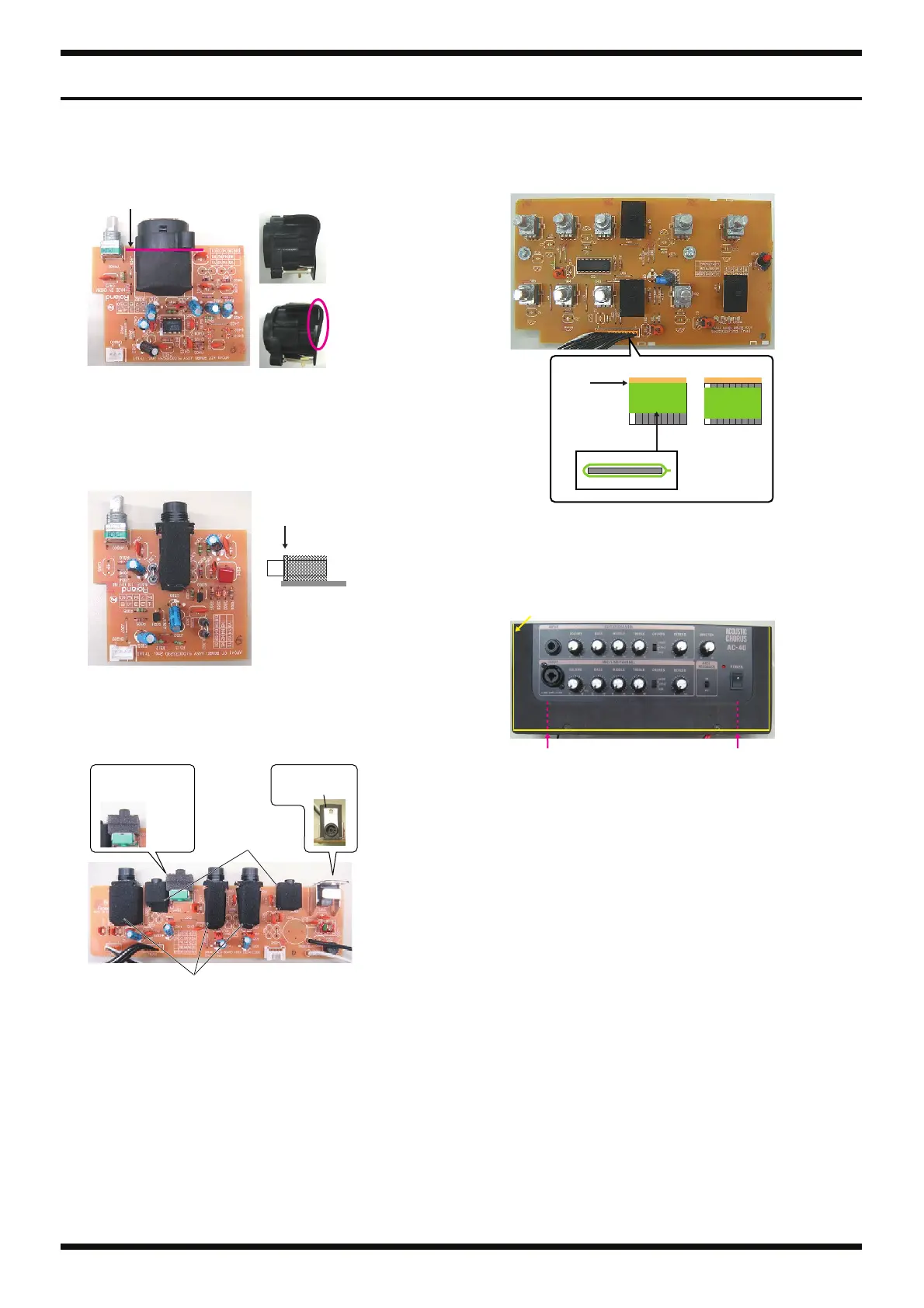

Application Sites for EVA Packing Cushions
Mic Input Board
Give attention to the following point when affixing the EVA Packing
(#5100011617) onto the MIC/LINE CHANNEL INPUT jack.
fig.eva-mic-e.eps
GT Input Board
As shown in the figure, affix the EVA Packing (#5100027144) onto the GT
CHANNEL INPUT jack.
fig.eva-gt-e.eps
Jack Board
As shown in the figure, affix the EVA Packing (#5100027144, #5100027145 and
#5100010540) and Mini Jack Cushion (#5100032494) onto the respective jacks.
fig.eva-jack-e.eps
Panel Board
Give attention to the following point when affixing the EVA Packing
(#5100027157) around the wiring (#5100033167).
fig.eva-panel-e.eps
Chassis
Give attention to the following point when affixing the Cushion (#5100035705,
#5100035706 and #5100035707).
fig.eva-chassis-e.eps
OK
Starting point for attaching
Not OK
* Ensure no gaps between the
material and the surface.
Starting point
for attaching
EVAPacking
(#5100010540)
EVAPacking
(#5100027144)
EVAPacking
(#5100027145)
MiniJackCushion
(#5100032494)x2
OK
EVA PAKING
(#5100027157)
Not OK
Starting point
for attaching
Wrapping method
Overlap, with Cushion (CHASSIS TOP C) on top.
Affix within 1mm from the edge

Roland AC-40 Specifications

General

Amplifier class	-
RMS rated power	17.5 W
Number of speakers	2
Speaker driver size	6.5 \
Audio output channels	2.0 channels
Sound effects quantity	1
Connectivity technology	Wired
Suitable for	Acoustic guitar
Product color	Black
Volume control	Rotary
Carrying handle(s)	Yes
Power source type	AC

Weight and Dimensions

Depth	241 mm
Width	362 mm
Height	265 mm
Weight	5300 g
