Roland CAMM-1 PRO CM-300 User Manual

1 Structure & Spare Parts
7
1

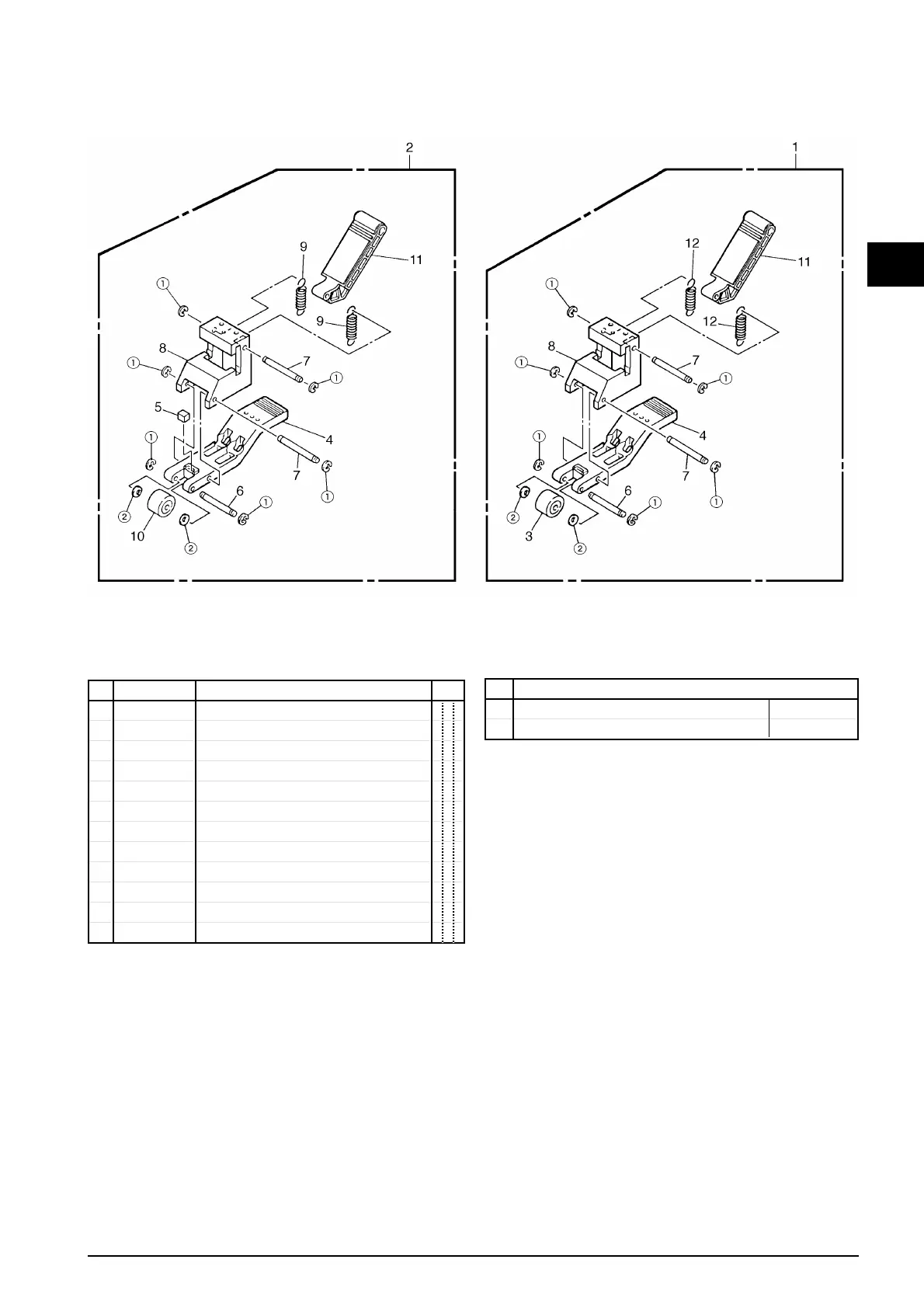

1-6 PINCH ROLLER
PARTS LIS
T
-Main Parts-
Parts No. Parts Name **
1 22805289 ASS'Y,P-ROLLER M CM-500 ••
2 22805290 ASS'Y,P-ROLLER L R CM-500 •••
3 22175847 GRX-450 PINCHROLL ••
4 22145404 LEVER OF PINCH ROLL •••
5 22395125 MAGNET •••
6 22145831 PIN NO.1 •••
7 22145832 PIN NO.2 214-832 •••
8 22115722 PINCH ROLL FRAME •••
9 22175105 PINCH ROLL SPRING •••
10 22175877 PINCH ROLLER •••
11 22145616 PNC-900 SET LEVER •••
12 22175157 SPRING,C P-ROLLER CM-500 ••
PARTS LIST -Supplemental Parts-
Parts Name
1 RING E-RING ETW-3
2 WASHER FLAT Cr 4.3X7X0.5

Roland CAMM-1 PRO CM-300 Specifications

General

Repeatability	±0.1 mm
Cutting Width	300 mm
Interface	RS-232C
Power Supply	AC 100-240V, 50/60Hz
Maximum Cutting Area	300 mm x 2000 mm
Acceptable Material Width	50-300 mm
Maximum Cutting Speed	100 mm/sec
Resolution	0.025 mm
Media Width	50-300 mm
Weight	6.5 kg
