Roland CAMM-1 PRO CM-300 User Manual

39
4 Adjustment
4
Motor Balance (OFFSET) Adjustment is used to adjust the GAIN for CW and CCW directions to be equal.
– Ex.1 in the figure shows that both the OFFSET and
GAIN are adjusted in both CW and CCW
directions.
– Ex.2 shows that the GAIN is adjusted but the
OFFSET is shifted. Therefore, the GAIN will be
big in CCW direction and small in CW direction.
As a result, motor becomes dull in CCW direction
and sensitive in CW direction causing problems.

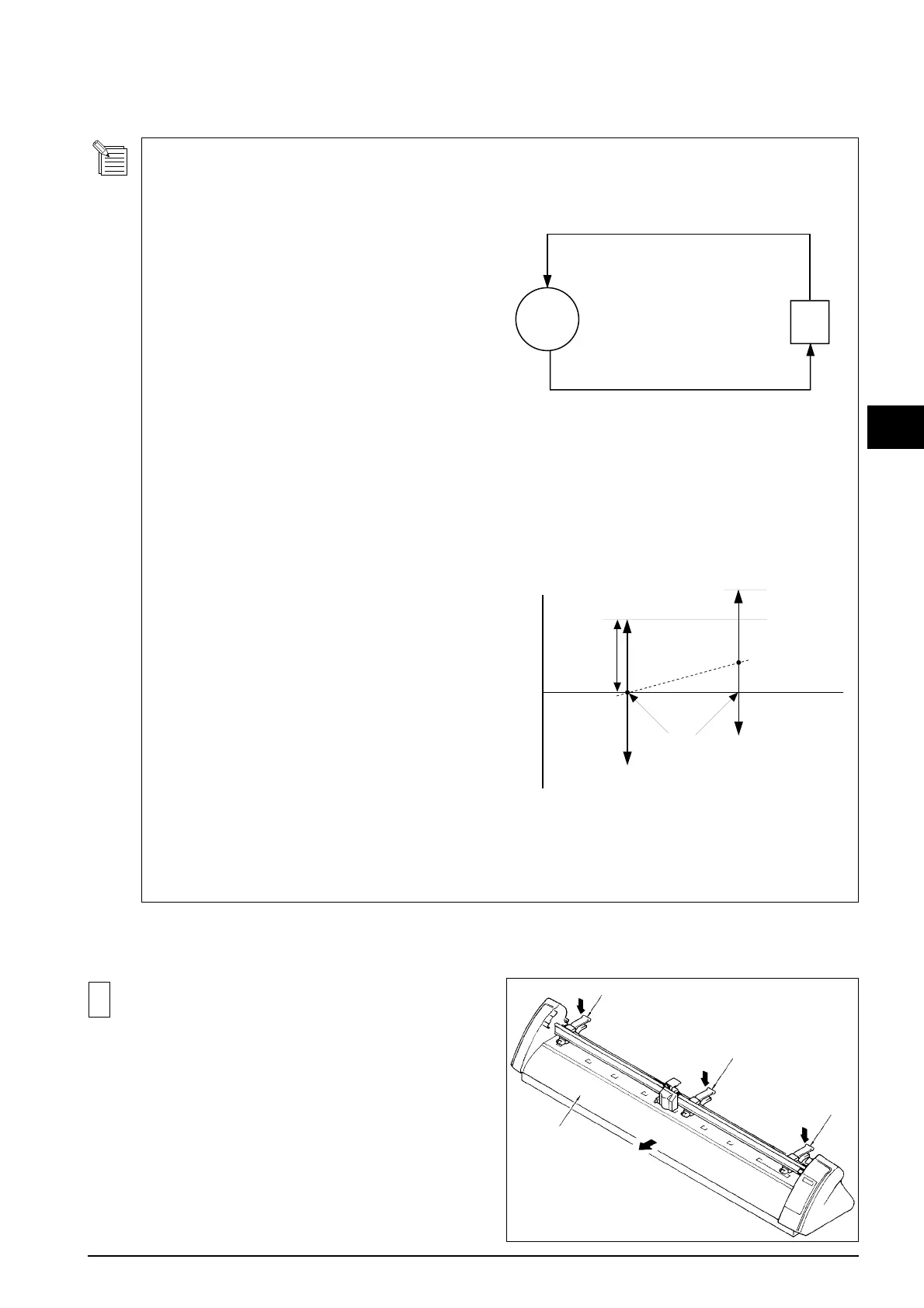

4-8 MOTOR BALANCE ADJUSTMENT
CCW
CW
Ex.1
Ex.2
Offset
Gain
Command
Feedback
Servo Motor
CPU
Servo Motor feeds back to the CPU the actual rotation corresponds to the instruction.
Motor tries to follow the instruction from the CPU.
Difference between the actual rotation and the
instruction could be adjusted with the Motor Balance
(GAIN) Adjustment.
– If the difference is small (=GAIN is small), motor
becomes very sensitive. As a result, it vibrates.
– If the difference is big (=GAIN is big), motor
becomes dull to the instruction. And as a result,
cutting quality will be damaged.
1
Put all 3 PINCH ROLLERs in UP position.
And remove the FRONT APRON.
PINCH ROLLER
PINCH ROLLER
PINCH ROLLER
FRONT APRON

Roland CAMM-1 PRO CM-300 Specifications

General

Repeatability	±0.1 mm
Cutting Width	300 mm
Interface	RS-232C
Power Supply	AC 100-240V, 50/60Hz
Maximum Cutting Area	300 mm x 2000 mm
Acceptable Material Width	50-300 mm
Maximum Cutting Speed	100 mm/sec
Resolution	0.025 mm
Media Width	50-300 mm
Weight	6.5 kg
