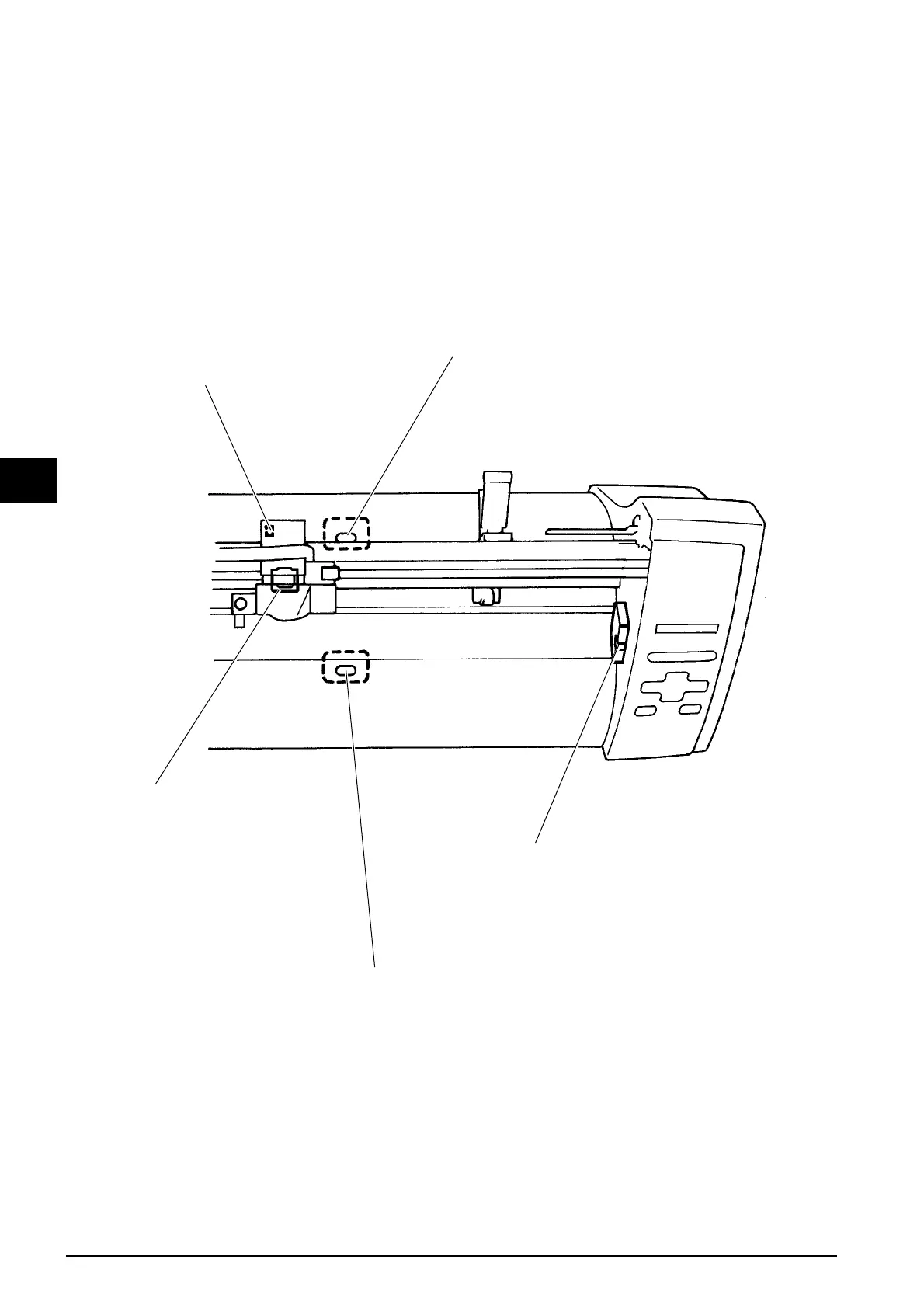

5-2 SENSOR MAP
REAR PAPER SENSOR
It detects the rear edge of the media and also whether the
media is set or not.
When "ROLL" is selected, either one of the Front or Rear
Paper Sensor detects whether the media is set or not.
FRONT PAPER SENSOR
It detects the front edge of the media and also whether the
media is set or not.
When "ROLL" is selected, either one of the Front or Rear
Paper Sensor detects whether the media is set or not.
PINCH ROLL SENSOR
It detects the PINCH ROLLER POSITION.
CARRIAGE LIMIT SENSOR
It detects the CARRIAGE LIMIT.
COVER SWITCH
It detects whether the FRONT COVER is open or close.
