Overview of Operations
53

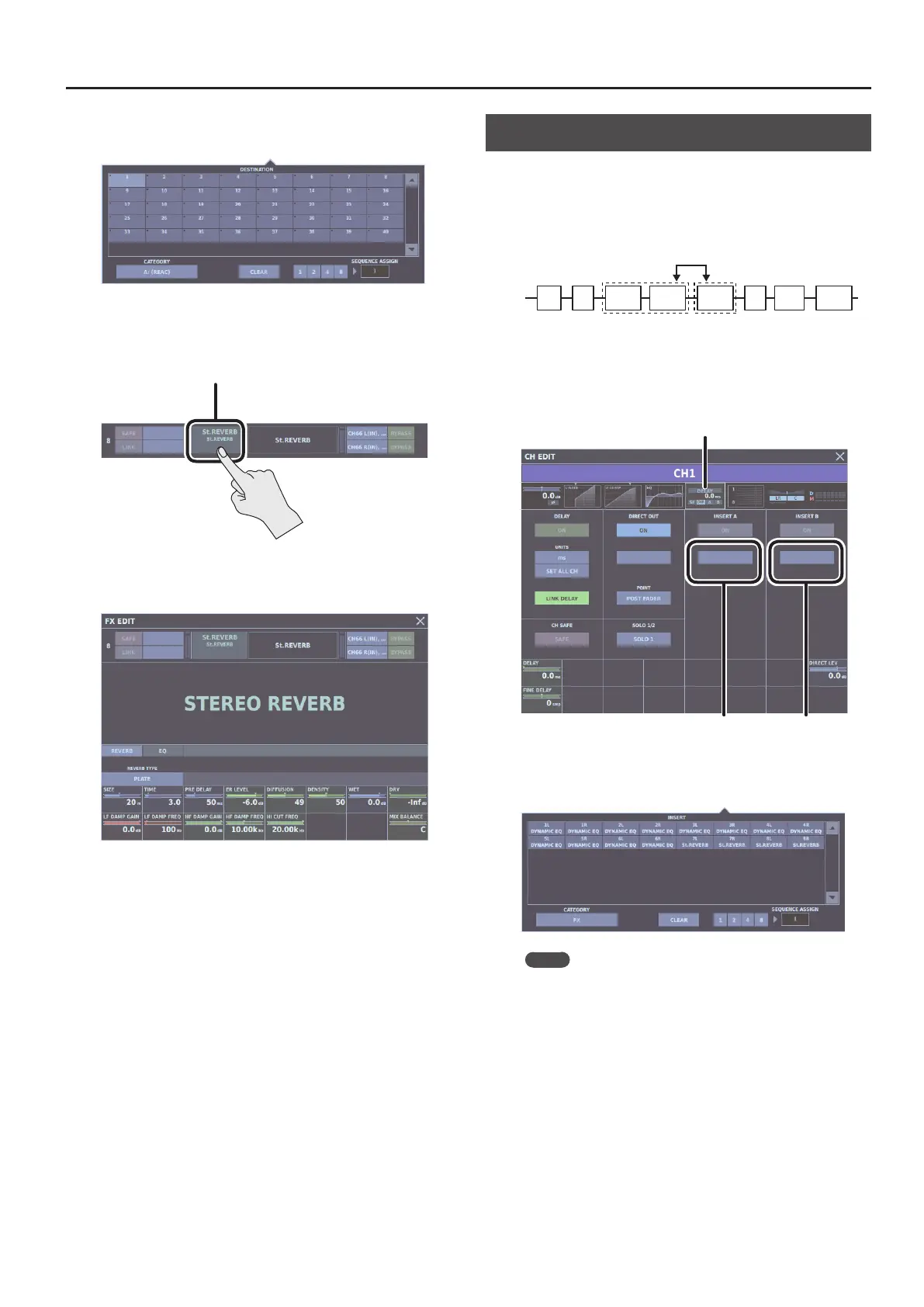

4. Tap <DESTINATION A> or <DESTINATION B>.
The DESTINATION popover appears.
5. Select the input channel for returning the FX.
6. Tap <FX NAME> and select the eect library.
FX NAME
7. Tap <FX OVERVIEW>.
The FX EDIT window appears.
8. Carry out operations using the touch display and knob
section.
Inserting an FX
This inserts an FX at INSERT A or INSERT B on an input channel or
output bus.
INSERT A is inserted before dynamics and EQ, and INSERT B is
inserted after dynamics and EQ.
HPF
LPF
FADER
DYN 1 DELAY
DYN 2
INS
A
4-BAND
EQ
INS
B
DYN/EQ
or
EQ/DYN
1. Press the [SEL] button for the input channel or output bus.
The CH EDIT window appears.
2. Tap the <MISC tab>.
MISC tab
INSERT A INSERT B
3. Tap <INSERT A> or <INSERT B>, then select the number of
the FX to insert.
Memo
If the input channel or output bus is stereo, you can make
insertions at the following four locations.
5 <INSERT A - L>
5 <INSERT A - R>
5 <INSERT B - L>
5 <INSERT B - R>
4. Tap INSERT A <ON> or INSERT B <ON>.
The selected FX is inserted.
To Next Page
