Roland OCTAPAD SPD-30 User Manual

14
Mar. 2010 SPD-30

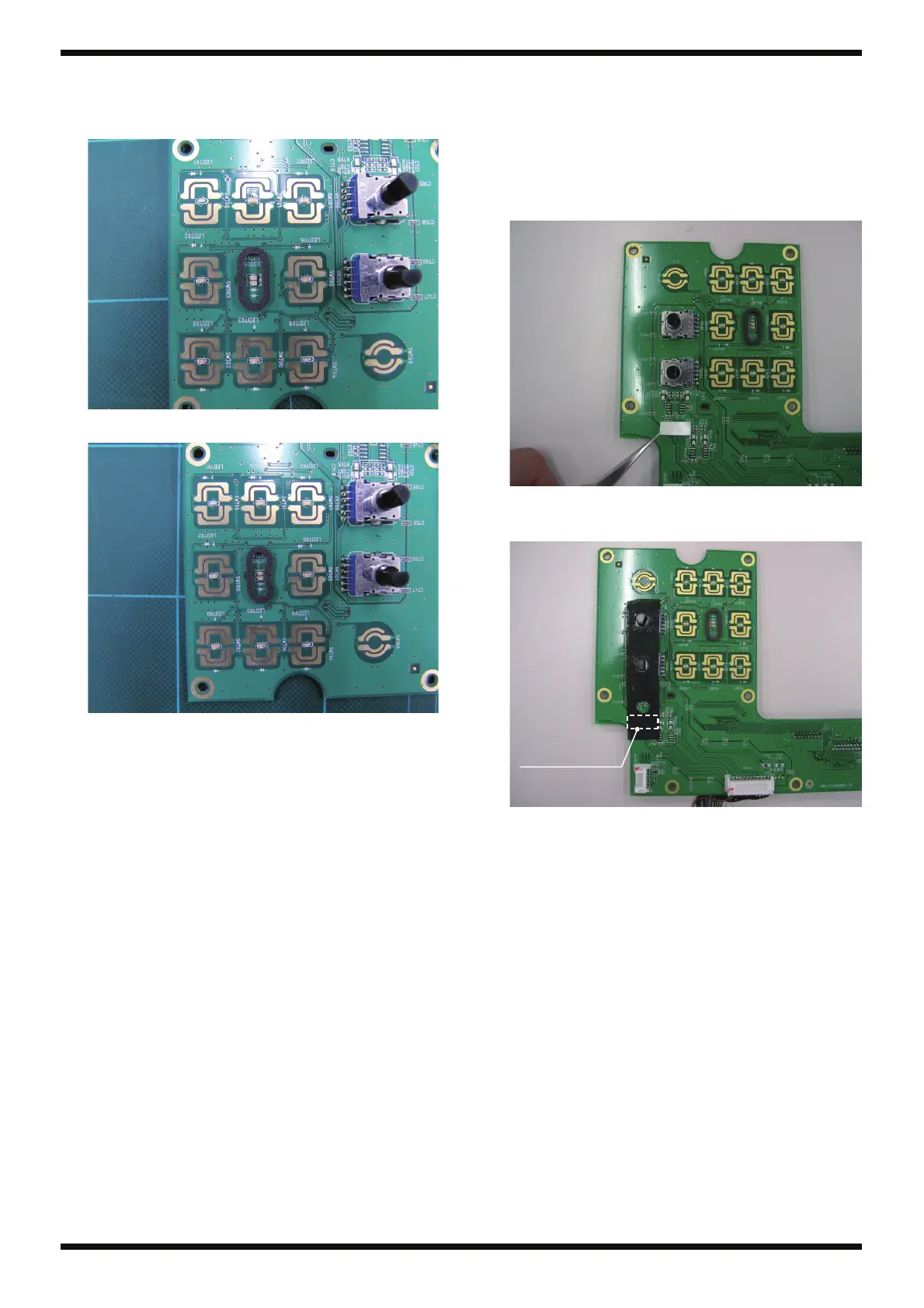

Affixing the LED Cushion
When replacing the Panel Board Assy, attach an LED Cushion (#5100013049).
Attach so that the silkscreening around LED705 and LED710 remains visible.
fig.bunaki-LED-OK.eps
OK
fig.bunaki-LED-NG.eps
Not OK
Attaching the Dust Covers
Dust covers are located on the Panel Board Assy and the underside of the Top
Case.
Dust Cover for the Panel Board
1. Cut a 10-millimeter length of double-sided adhesive tape (#5100011185),
affix it to the Panel Board, and peel off the backing paper.
fig.bunaki-dsc-1.eps
2. Cover the Dust Cover (#5100010763) as far as the bases of the struts for
the potentiometers.
fig.bunaki-dsc-2-e.eps
Affix using double-
sided adhesive tape.

Roland OCTAPAD SPD-30 Specifications

General

Product color	Black, Grey
Sound effects	Yes
Number of pads	8
Drum kits quantity	50
Instrument sounds quantity	670
Display type	LCD
Display resolution	160 x 160 pixels
USB connector type	USB Type-A, USB Type-B
Headphone connectivity	6.3 mm
6.35 mm (1⁄4-inch) input	5
6.35 mm (1⁄4-inch) output	2
Power source type	AC

Weight and Dimensions

Depth	272 mm
Width	541 mm
Height	88 mm
Weight	3800 g
