Roland OCTAPAD SPD-30 User Manual

15
Mar. 2010 SPD-30

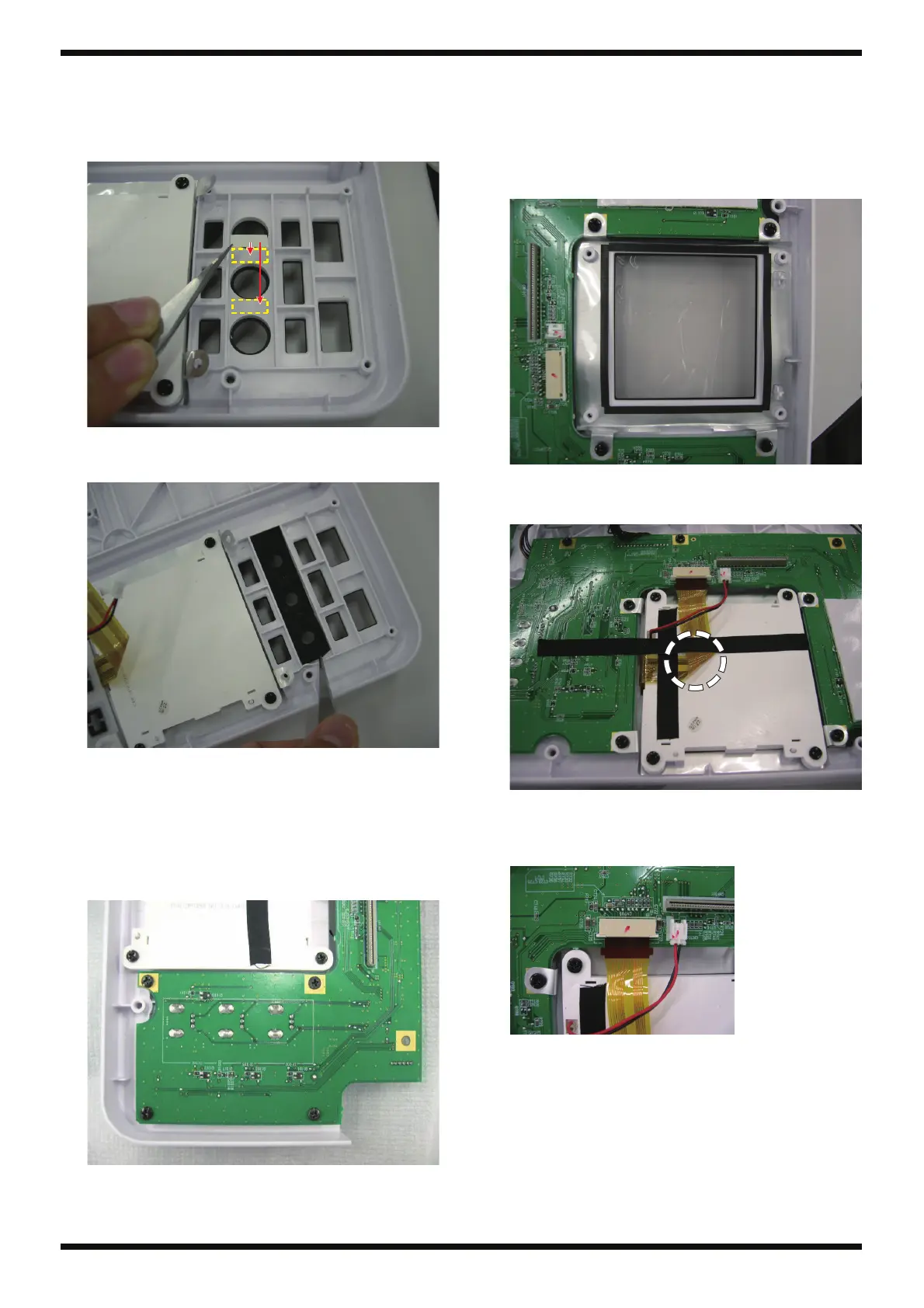

Dust Covers on the Underside of the Top
Case
1. Cut 10-millimeter lengths of double-sided adhesive tape (#5100011185),
affix them to the Top Case, and peel off the backing paper.
fig.bunaki-dsc-3.eps
2. Carefully orient the Dust Cover correctly, and attach it so that the three
hole locations match up.
fig.bunaki-dsc-4.eps
Double-sided Tape on the Underside of the
Panel Board
Affix double-sided adhesive tape (#40122556) so that it does not extend
beyond the rectangular silkscreening on the underside of the Panel Board.
* Leave the backing paper attached.
fig.bunaki-acetate.eps
Installing Components Around the LCD
Screen
1. Fasten the Shield Sheet (#5100009465) to the Top Case using screws
(#40011312).
2. Line up the Display Cushion (#5100009464) with the inner edges of the
Shield Sheet and attach so that no gaps are formed.
fig.bunaki-LCD-1.eps
3. Fasten the LCD screen using screws (#40011312).
* Bend the flat cable loosely.
fig.bunaki-LCD-2.eps
4. Affix acetate tape (#5100002685) in a cross-shaped configuration.
5. Insert the flat cable for the LCD screen into the connector, as far as it will
go.
fig.bunaki-LCD-3.eps

Roland OCTAPAD SPD-30 Specifications

General

Product color	Black, Grey
Sound effects	Yes
Number of pads	8
Drum kits quantity	50
Instrument sounds quantity	670
Display type	LCD
Display resolution	160 x 160 pixels
USB connector type	USB Type-A, USB Type-B
Headphone connectivity	6.3 mm
6.35 mm (1⁄4-inch) input	5
6.35 mm (1⁄4-inch) output	2
Power source type	AC

Weight and Dimensions

Depth	272 mm
Width	541 mm
Height	88 mm
Weight	3800 g
