Panel Descriptions
6
DC IN jack
Connect the included AC adaptor here.
USB MEMORY port
You can connect a USB ash drive here.
USB COMPUTER port
You can connect this to your computer so that it can exchange
performance data and audio signal with the RD-88.
MEMO
5 The RD-88 supports USB MIDI and USB Audio. In order to use
USB Audio, the dedicated USB driver must be installed on
your computer. You can download the driver from the Roland
website.
5 For details on USB driver settings and USB MIDI/Audio settings,
refer to “Parameter Guide” (PDF).
5 You can use a dedicated plugin to control software on your
computer in more sophisticated ways. For details, refer to the
Roland website.

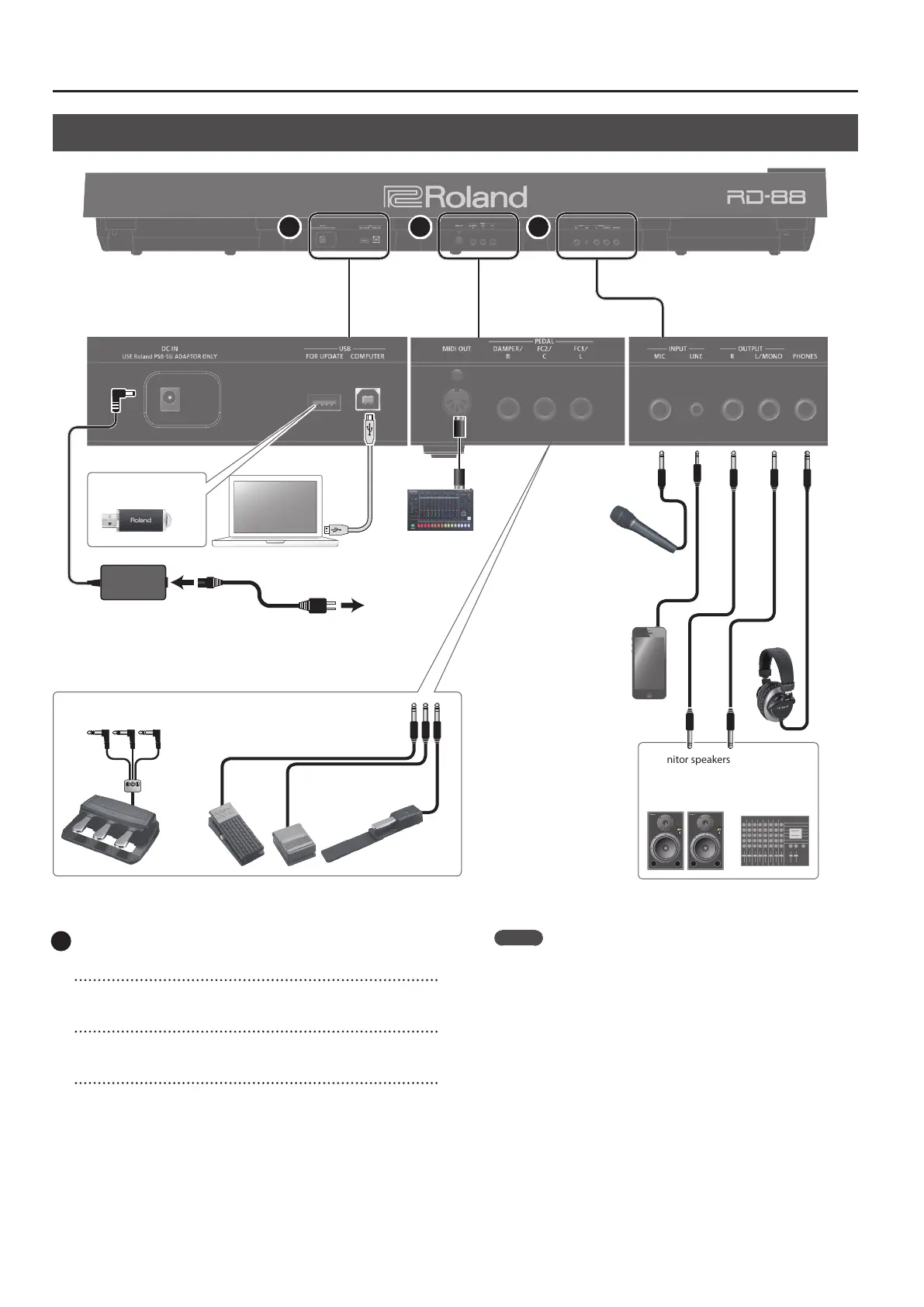

Rear Panel (Connecting Your Equipment)
Power Cord
AC Outlet
6 7 8
USB ash drive
Pedal unit (RPU-3) Expression pedal (EV Series)
or
Pedal switch (DP Series)
Mixer etc.
Monitor speakers
(powered)
Mic
Audio player
headphones
External MIDI Device
* To prevent malfunction and equipment failure, always turn down the volume, and turn o all the units before making any connections.
AC Adaptor

Roland RD-88 Specifications

General

Tones quantity	3000
RMS rated power	6 W
Speaker diameter	120 mm
Tweeter diameter	20 mm
Number of speakers	2
Compatible memory cards	MicroSD (TransFlash)
Keys quantity	88 keys
Display resolution	128 x 64 pixels
Product color	Black
AC input voltage	12 V
Power source type	DC

Weight and Dimensions

Depth	258 mm
Width	1284 mm
Height	159 mm
Weight	13500 g
