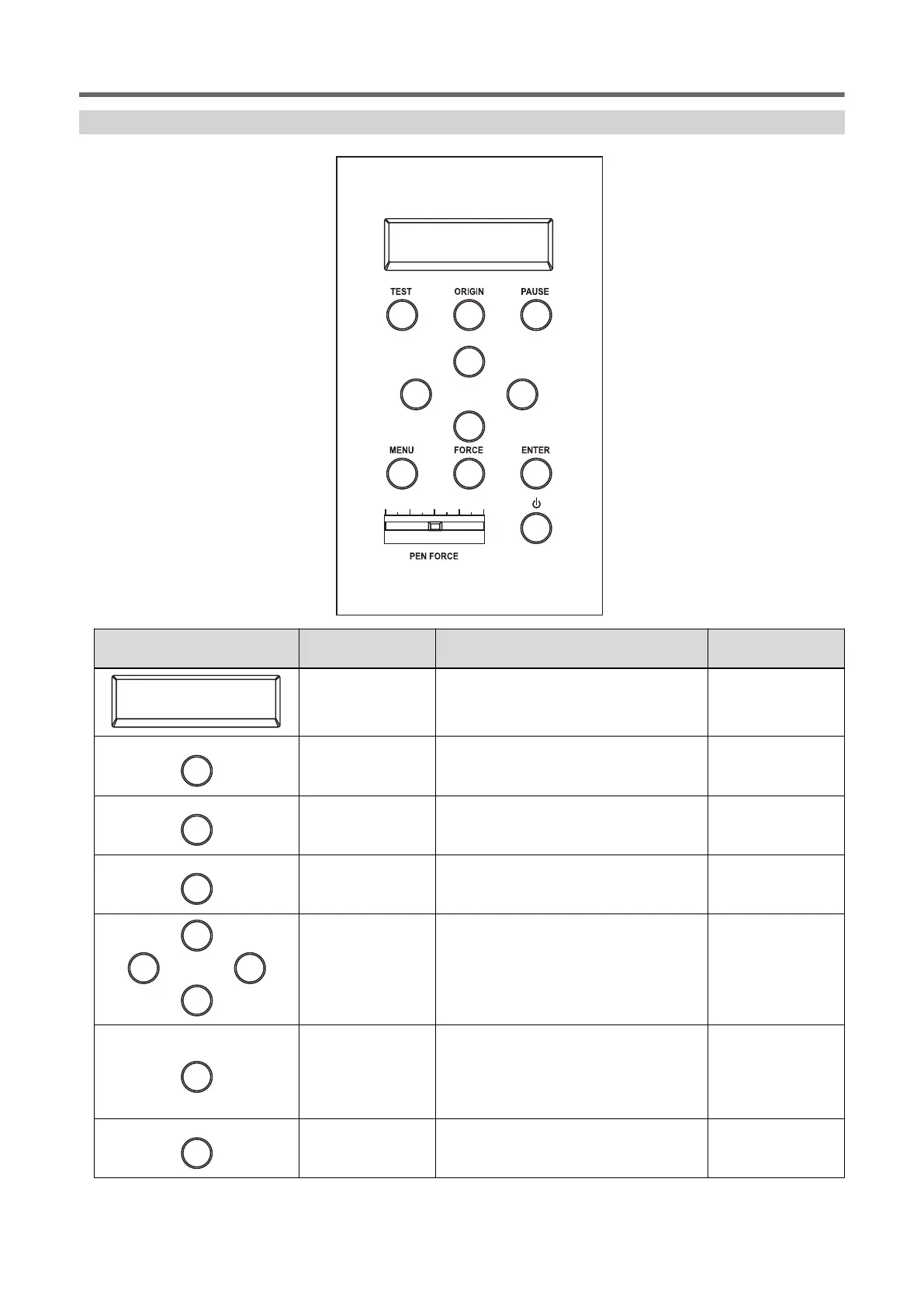

Operation Panel
â–²
â–²
â–²
â–²
Part Name Details Notation used in this
document
W:261mm
L:---- [0mm]
Display This displays various setting menus and other
information.
—
TEST
TEST Key Hold this down for 1 second or longer to cut a
pre-saved test pattern.
[TEST]
ORIGIN
ORIGIN key Hold this for 1 second or longer to set the cur-
rent blade position as the origin.
[ORIGIN]
PAUSE
PAUSE key This interrupts the operation. Press it again to
restart the operation.
[PAUSE]
â–²
â–²
â–²
â–²
Cursor keys Use these keys to move the cutting carriage or
the material, or to select or set menu items.
[â–²] [â–¼] [â—€] [â–¶]
MENU
MENU key The message on the display changes each time
you press this key.
• Cutting condition that is currently set
• Menu mode
• Width display, or material type display
[MENU]
FORCE
FORCE key This displays the adjustment menu for the
blade force.
[FORCE]
