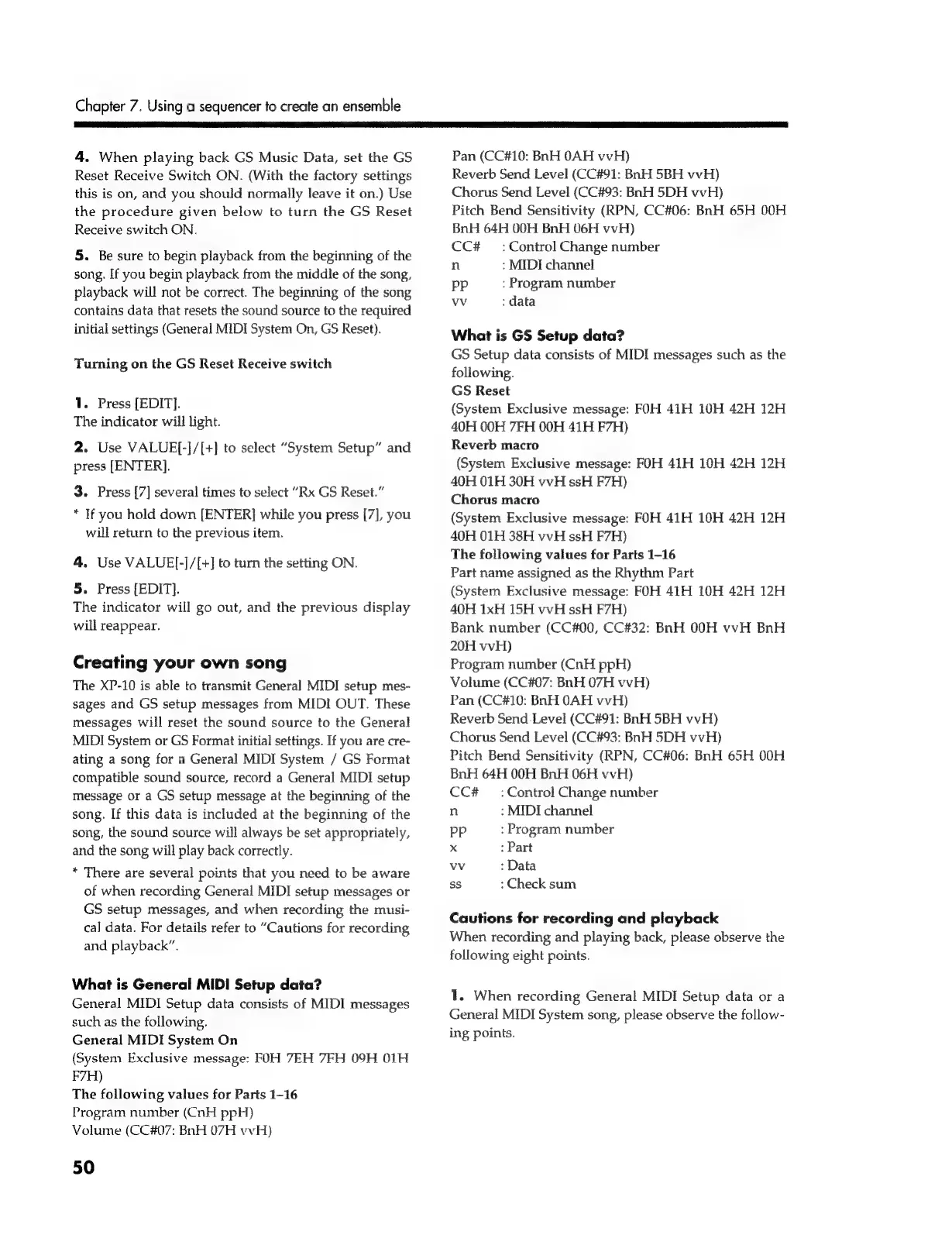

Chapter 7. Using a sequencer to create an ensemble
4. When playing back GS Music Data, set the GS
Reset Receive Switch ON. (With the factory settings
this is on, and you should normally leave it on.) Use
the procedure given below to turn the GS Reset
Receive switch ON.
5. Be sure to begin playback from the beginning of the
song. If you begin playback from the middle of the song,
playback will not be correct. The beginning of the song
contains data that resets the sound source to the required
initial settings (General MIDI System On, GS Reset).
Turning on the GS Reset Receive switch
1. Press [EDIT].
The indicator will light.
2. Use VALUE[-]/[+] to select “System Setup” and
press [ENTER].
3. Press [7] several times to select “Rx GS Reset.”
* If you hold down [ENTER] while you press [7], you
will return to the previous item.
4. Use VALUE[-]/[+] to turn the setting ON.
5. Press [EDIT].
The indicator will go out, and the previous display
will reappear.
Creating your own song
The XP-10 is able to transmit General MIDI setup mes-
sages and GS setup messages from MIDI OUT. These
messages will reset the sound source to the General
MIDI System or GS Format initial settings. If you are cre-
ating a song for a General MIDI System / GS Format
compatible sound source, record a General MIDI setup
message or a GS setup message at the beginning of the
song. If this data is included at the beginning of the
song, the sound source will always be set appropriately,
and the song will play back correctly.
* There are several points that you need to be aware
of when recording General MIDI setup messages or
GS setup messages, and when recording the musi-
cal data. For details refer to “Cautions for recording
and playback”.
What is General MIDI Setup data?
General MIDI Setup data consists of MIDI messages
such as the following.
General MIDI System On
(System Exclusive message: FOH 7EH 7FH 09H 01H
F7H)
The following values for Parts 1-16
Program number (CnH ppH)
Volume (CC#07: BnH 07H vvH)
50
Pan (CC#10: BnH OAH vvH)
Reverb Send Level (CC#91: BnH 5BH vvH)
Chorus Send Level (CC#93: BnH 5DH vvH)
Pitch Bend Sensitivity (RPN, CC#06: BnH 65H 00H
BnH 64H 00H BnH 06H vvH)
CC# — : Control Change number
n : MIDI channel
pp : Program number
vv : data
What is GS Setup data?
GS Setup data consists of MIDI messages such as the
following.
GS Reset
(System Exclusive message: FOH 41H 10H 42H 12H
40H 00H 7FH 00H 41H F7H)
Reverb macro
(System Exclusive message: FOH 41H 10H 42H 12H
40H 01H 30H vvH ssH F7H)
Chorus macro
(System Exclusive message: FOH 41H 10H 42H 12H
40H 01H 38H vvH ssH F7H)
The following values for Parts 1-16
Part name assigned as the Rhythm Part
(System Exclusive message: FOH 41H 10H 42H 12H
40H 1xH 15H vvH ssH F7H)
Bank number (CC#00, CC#32: BnH 00H vvH BnH
20H vvH)
Program number (CnH ppH)
Volume (CC#07: BnH 07H vvH)
Pan (CC#10: BnH OAH vvH)
Reverb Send. Level (CC#91: BnH 5BH vvH)
Chorus Send Level (CC#93: BnH 5DH vvH)
Pitch Bend Sensitivity (RPN, CC#06: BnH 65H 00H
BnH 64H 00H BnH 06H vvH)
CC# — : Control Change number
n : MIDI channel
pp : Program number
x : Part
vv : Data
ss : Check sum
Cautions for recording and playback
When recording and playing back, please observe the
following eight points.
1. When recording General MIDI Setup data or a
General MIDI System song, please observe the follow-
ing points.
