Roland XV-2020 - Getting Ready to Play; Physical Setup (Feet & Rack Mount)

10
Getting Ready to Play
Attaching the Rubber Feet
If you will not be using the separately available RAD-50 rack-mount adaptor, attach
the rubber feet that were supplied with the XV-2020, as shown in the figure. Use the
small holes on the bottom as a guide for positioning the rubber feet when attaching
them.

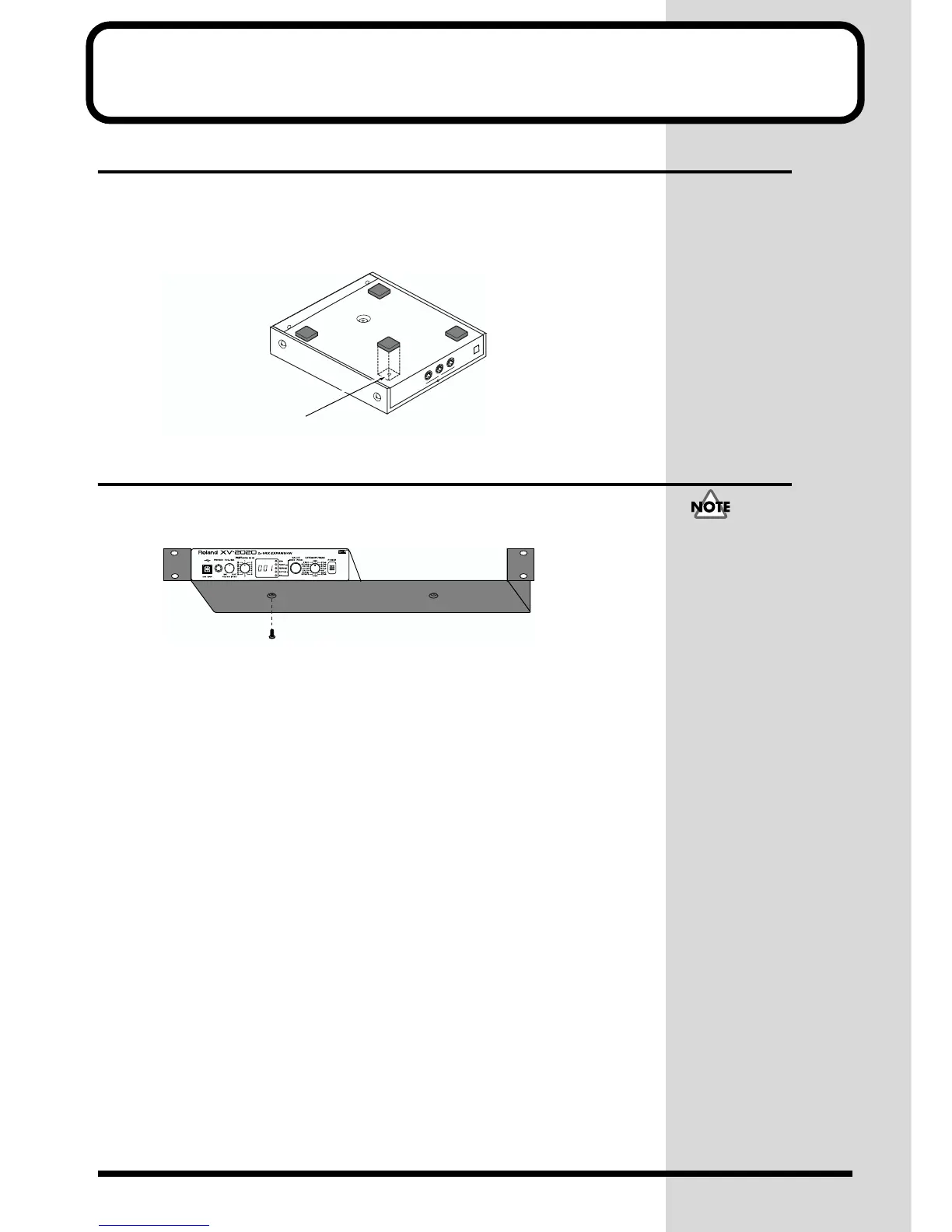

fig.00-03e
Installing on the Rack-Mount Adaptor
When installing on the rack-mount adaptor (RAD-50; sold separately), use the screw
(M4 x 8) included with the rack-mount adaptor.
fig.00-04e
