Roland XV-2020 - 17: STEREO DELAY; 18: MODULATION DELAY

86
Using the XV-2020 Effects

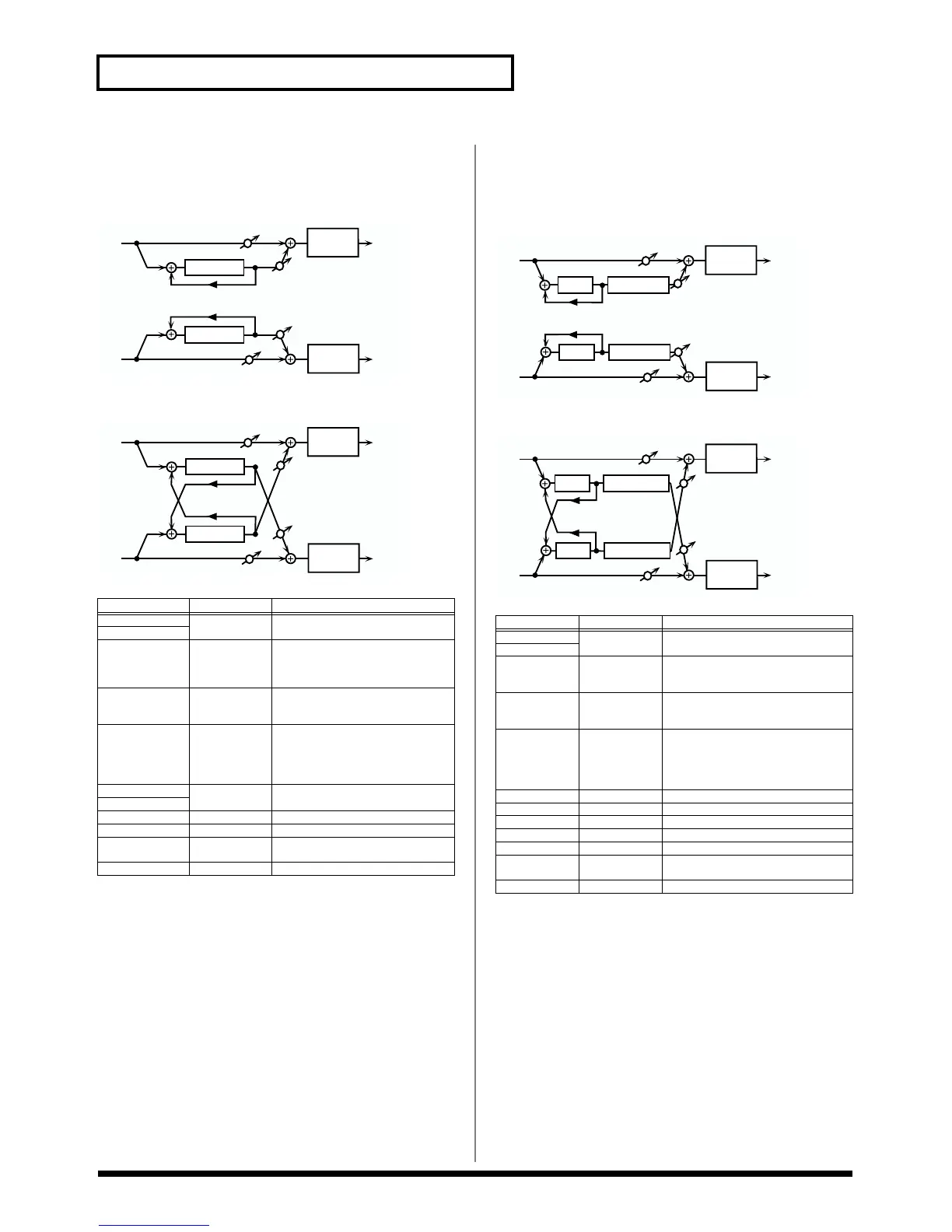

17: STEREO DELAY
This is a stereo delay.
When Mode is NORMAL:
fig.02-017am
When Mode is CROSS:
fig.02-017bm
18: MODULATION DELAY
Adds modulation to the delayed sound, producing an effect similar
to a flanger.
When Mode is NORMAL:
fig.02-018am
When Mode is CROSS:
fig.02-018bm
Parameter Value Description
Delay L 0.0-500.0 ms Adjusts the time until the delay
sound is heard.
Delay R
Feedback # -98-+98 % Adjusts the amount of the delay
sound that’s fed back into the effect.
Negative (-) settings invert the
phase.
Mode NORMAL,
CROSS
Selects the way in which delay
sound is fed back into the effect. (See
the figures above.)
HF Damp 200-8000 Hz,
BYPASS
Adjusts the frequency above which
sound fed back to the effect is fil-
tered out. If you don’t want to filter
out any high frequencies, set this pa-
rameter to BYPASS.
Phase L NORMAL,
INVERT
Phase of the delay sound
Phase R
Low Gain -15-+15 dB Gain of the low frequency range
High Gain -15-+15 dB Gain of the high frequency range
Balance # D100:0W-
D0:100W
Volume balance between the direct
sound (D) and the delay sound (W)
Level 0-127 Output level
R in
R out
L in
L out
Feedback
Feedback
Balance W
Balance D
Balance W
Balance D
2-Band
EQ
2-Band
EQ
Delay
Delay
R in
R out
L in
L out
Feedback
Feedback
Balance W
Balance D
Balance W
Balance D
2-Band
EQ
2-Band
EQ
Delay
Delay
Parameter Value Description
Delay Left 0.0-500.0 ms Adjusts the time until the delay sound
is heard.
Delay Right
Feedback -98-+98 % Adjusts the amount of the delay sound
that’s fed back into the effect. Negative
(-) settings invert the phase.
Mode NORMAL,
CROSS
Selects the way in which delay sound
is fed back into the effect (See the fig-
ures above.)
HF Damp 200-8000 Hz,
BYPASS
Adjusts the frequency above which
sound fed back to the effect is filtered
out. If you don’t want to filter out any
high frequencies, set this parameter to
BYPASS.
Rate # 0.05-10.00 Hz Frequency of modulation
Depth 0-127 Depth of modulation
Phase 0-180 deg Spatial spread of the sound
Low Gain -15-+15 dB Gain of the low frequency range
High Gain -15-+15 dB Gain of the high frequency range
Balance # D100:0W-
D0:100W
Volume balance between the direct
sound (D) and the delay sound (W)
Level 0-127 Output level
R in R out
L in L out
Feedback
Feedback
Balance W
Balance D
Balance W
Balance D
2-Band
EQ
2-Band
EQ
Delay
Delay
Modulation
Modulation
R in
R out
L in
L out
Feedback
Feedback
Balance W
Balance D
Balance W
Balance D
2-Band
EQ
2-Band
EQ
Delay
Delay
Modulation
Modulation
