5 | Automate™ Programming Instructions | ARC™ Venetian Tilt Motor ROLLEASE ACMEDA

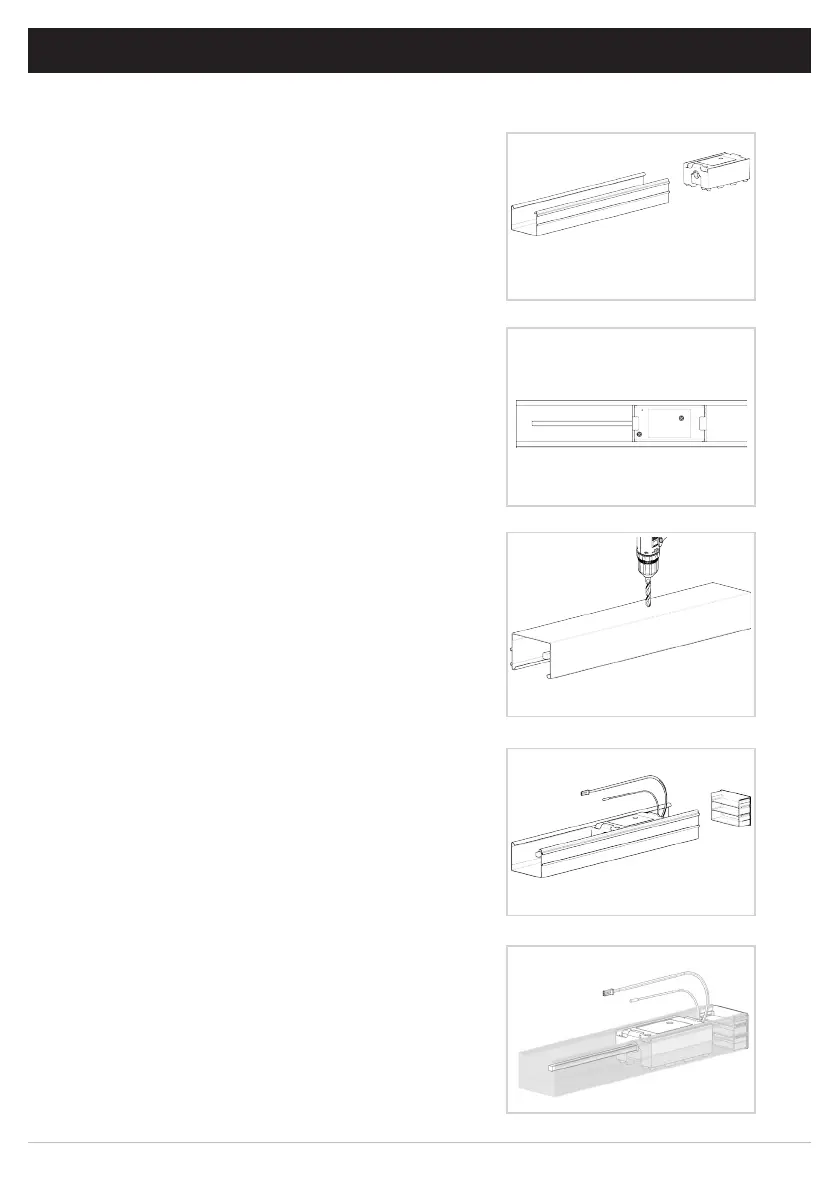

1 ASSEMBLY
Step 1. Insert the motor / cradle assembly completely into
the drive side of the 2” headrail
Step 2. Ensure at least ½” inch of the tilting drive
Shaft is inserted into the motor.
(max depth is ¾” – Optional Shaft adapters
may be required)
Step 3. Remove motor, mark and drill hole where P1
button can be accessed.
Step 4. Reinstall motor, ensuring power cord and
Antenna extend freely from the headrail cap.
The Automate Venetian Blind tily motor works with most 2” blind headrail systems.
